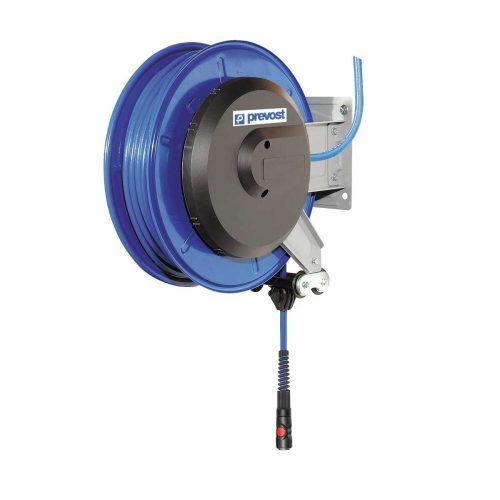

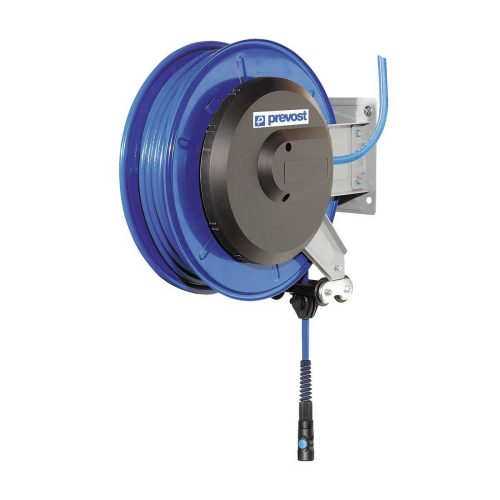

Prevost DVO Series – Medium – Polyurethane Braided Hose
$679.40
- Description
- Additional information
Description
DVO SERIES – MEDIUM – POLYURETHANE BRAIDED HOSE
Technical specifications
-
Technology :Pipe locked with ratchet stop
-
Max operating pressure :174 psi
-
Construction :Epoxy-coated steel case
-
Connection :3.3 ft of inlet supply hose
-
Equipped with :Fixed bracket
Fixed bracket
Inlet: 3/8″ FBSP
3.3 ft hose
Outlet: with prevoS1 safety quick coupling
Temperature: 5°F to 104°F
Pressure: 174 psi
| ID (in) | Length (ft) | Coupler | Flow rate (cfm) | Swivel inlet | Weight (lb) | Reference |
|---|---|---|---|---|---|---|
| 3/8″ | 82′ | ISI 06 | 18 | 3/8″ | 50.71 | DVO 1025IS |
| 3/8″ | 82′ | USI 06 | 18 | 3/8″ | 50.71 | DVO 1025US |
| 3/8″ | 82′ | ESI 07 | 18 | 3/8″ | 50.71 | DVO 1025ES |

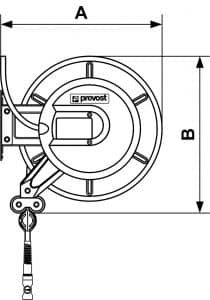

| A (inch) | B (inch) | Reference |
|---|---|---|
| 18.11 | 17.598 | DVO 1025IS |
| 18.11 | 17.598 | DVO 1025US |
| 18.11 | 17.598 | DVO 1025ES |
Additional information
| Connection | Automotive (USI 06), High Flow (ESI 07), Industrial (ISI 06) |
|---|---|
| Product Range | Hose Reels |
