Prevost DRF/I Series – 304 Stainless Steel
$732.00
- Description
- Additional information
Description
DRF/I SERIES – 304 STAINLESS STEEL – POLYURETHANE HOSE ETHER BASE
Technical specifications
-
Technology :Pipe locked with ratchet stop
-
Max operating pressure :174 psi
-
Construction :AISI 304 stainless steel case
-
Connection :3.3 ft of inlet supply hose
-
Equipped with :Swivel bracket
180 Degree swiveling bracket
Inlet: 3.3 ft hose
Temperature: 5 Degree F to 149 Degree F
Pressure: 174 psi

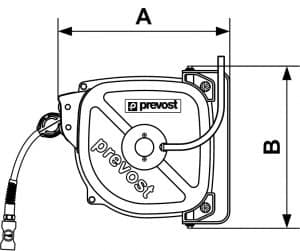

| Reference | ID (in) | Length (ft) | Coupler | Flow rate (cfm) | Fixed inlet (in) | Weight (lb) | A (inch) | B (inch) |
|---|---|---|---|---|---|---|---|---|
| DRFI 1012ESHE | 3/8″ | 40′ | ESI 07HE | 28 | 3/8″ | 14.99 | 14.567 | 13.268 |
Additional information
| Product Range | Hose Reels |
|---|---|
| CFM | 29 |
| Connection | High Flow (ESI 07) |
| Fluid Type | Air |
| ID (in) | 3/8 in |
| Length (ft) | 40 |
| PSI |
