Prevost DGO Series – Large – Rubber Hose
$740.50 – $759.20
- Description
- Additional information
Description
DGO SERIES – LARGE – RUBBER HOSE
Technical specifications
-
Technology :Pipe locked with ratchet stop
-
Max operating pressure :174 psi
-
Construction :Epoxy-coated steel case
-
Connection :3.3 ft of inlet supply hose
-
Equipped with :Fixed bracket
Fixed bracket
Inlet: 3/8″ FBSP
Inlet: 1/2″ MBSP for DGO 1320 DGO 1610
3.3 ft hose
Outlet: with prevoS1 safety quick coupling
Temperature: 5°F to 149°F
Pressure: 174 psi
| ID (in) | Length (ft) | Coupler | Flow rate (cfm) | Swivel inlet (BSPP) | Weight (lb) | Reference |
|---|---|---|---|---|---|---|
| 3/8″ | 82′ | ISI 06 | 18 | 3/8″ FBSP | 57.33 | DGO 1025IS |
| 1/2″ | 65′ | ISI 08 | 35 | 1/2″ MBSP | 59.52 | DGO 1320IS |
| 5/8″ | 33′ | ISI 11 | 106 | 1/2″ MBSP | 55.12 | DGO 1610IS |
| 3/8″ | 82′ | USI 06 | 18 | 3/8″ FBSP | 57.33 | DGO 1025US |
| 1/2″ | 65′ | USI 08 | 35 | 1/2″ MBSP | 59.52 | DGO 1320US |
| 5/8″ | 33′ | USI 11 | 106 | 1/2″ MBSP | 55.12 | DGO 1610US |
| 3/8″ | 82′ | ESI 07 | 18 | 3/8″ FBSP | 57.33 | DGO 1025ES |
| 1/2″ | 65′ | ESI 07 | 35 | 1/2″ MBSP | 59.52 | DGO 1320ES |
| 5/8″ | 33′ | ESI 11 | 106 | 1/2″ MBSP | 55.12 | DGO 1610ES |

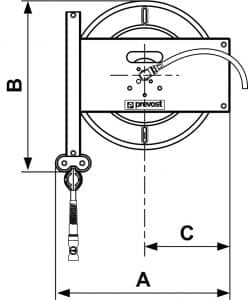

| A (inch) | B (inch) | C (inch) | Reference |
|---|---|---|---|
| 19.094 | 18.701 | 9.331 | DGO 1025IS |
| 19.094 | 18.701 | 9.331 | DGO 1320IS |
| 19.094 | 18.701 | 9.331 | DGO 1610IS |
| 19.094 | 18.701 | 9.331 | DGO 1025US |
| 19.094 | 18.701 | 9.331 | DGO 1320US |
| 19.094 | 18.701 | 9.331 | DGO 1610US |
| 19.094 | 18.701 | 9.331 | DGO 1025ES |
| 19.094 | 18.701 | 9.331 | DGO 1320ES |
| 19.094 | 18.701 | 9.331 | DGO 1610ES |
Additional information
| Connection | Automotive (USI 06), Automotive (USI 08), Automotive (USI 11), High Flow (ESI 07), High Flow (ESI 11), Industrial (ISI 06), Industrial (ISI 08), Industrial (ISI 11) |
|---|---|
| Length (ft) | 33, 65, 82 |
| ID (in) | 1/2, 3/8, 5/8 |
| Product Range | Hose Reels |
