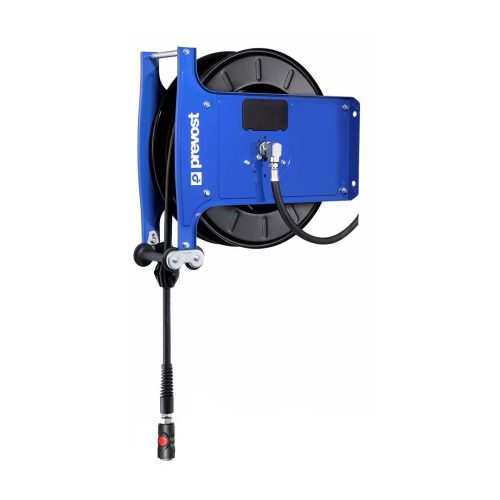

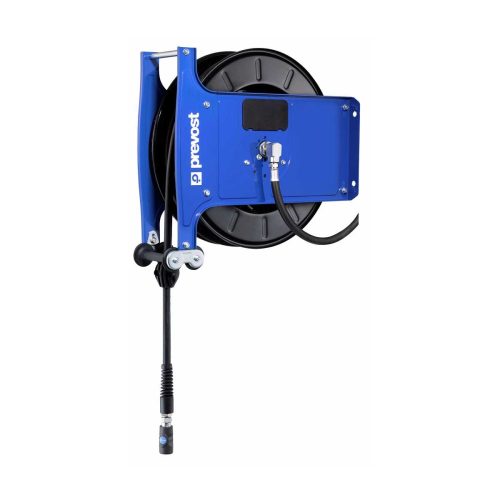

Prevost DMO Series Medium Rubber Hose
$524.40 – $714.60
- Description
- Additional information
Description
DMO SERIES – MEDIUM – RUBBER HOSE
Technical specifications
-
Technology :Pipe locked with ratchet stop
-
Max operating pressure :174 psi
-
Construction :Epoxy-coated steel case
-
Connection :3.3 ft of inlet supply hose
-
Equipped with :Fixed bracket
Fixed bracket
Inlet: G 3/8 F
Inlet: G 1/2 M for DMO 1315
1 m hose
Pressure: 12 bar
Temperature:5 deg. F to105 deg. F
| ID (in) | Length (ft) | Coupler | Flow rate (cfm) | Swivel inlet (BSPP) | Weight (lb) | Reference |
|---|---|---|---|---|---|---|
| 5/16″ | 33′ | ISI 06 | 18 | 3/8″ FBSP | 35.28 | DMO 0810IS |
| 5/16″ | 50′ | ISI 06 | 12 | 3/8″ FBSP | 38.58 | DMO 0815IS |
| 5/16″ | 65′ | ISI 06 | 9 | 3/8″ FBSP | 41.89 | DMO 0820IS |
| 3/8″ | 33′ | ISI 06 | 29 | 3/8″ FBSP | 37.48 | DMO 1010IS |
| 3/8″ | 50′ | ISI 06 | 25 | 3/8″ FBSP | 41.89 | DMO 1015IS |
| 3/8″ | 65′ | ISI 06 | 23 | 3/8″ FBSP | 48.50 | DMO 1020IS |
| 1/2″ | 50′ | ISI 08 | 49 | 1/2″ MBSP | 48.50 | DMO 1315IS |
| 5/16″ | 33′ | USI 06 | 18 | 3/8″ FBSP | 35.28 | DMO 0810US |
| 5/16″ | 50′ | USI 06 | 12 | 3/8″ FBSP | 38.58 | DMO 0815US |
| 5/16″ | 65′ | USI 06 | 9 | 3/8″ FBSP | 41.89 | DMO 0820US |
| 3/8″ | 33′ | USI 06 | 29 | 3/8″ FBSP | 37.48 | DMO 1010US |
| 3/8″ | 50′ | USI 06 | 25 | 3/8″ FBSP | 41.89 | DMO 1015US |
| 3/8″ | 65′ | USI 06 | 23 | 3/8″ FBSP | 48.50 | DMO 1020US |
| 1/2″ | 50′ | USI 08 | 49 | 1/2″ MBSP | 48.50 | DMO 1315US |
| 5/16″ | 33′ | ESI 07 | 18 | 3/8″ FBSP | 35.28 | DMO 0810ES |
| 5/16″ | 50′ | ESI 07 | 12 | 3/8″ FBSP | 38.58 | DMO 0815ES |
| 5/16″ | 65′ | ESI 07 | 9 | 3/8″ FBSP | 41.89 | DMO 0820ES |
| 3/8″ | 33′ | ESI 07 | 32 | 3/8″ FBSP | 37.48 | DMO 1010ES |
| 3/8″ | 50′ | ESI 07 | 25 | 3/8″ FBSP | 41.89 | DMO 1015ES |
| 3/8″ | 65′ | ESI 07 | 23 | 3/8″ FBSP | 37.48 | DMO 1020ES |
| 1/2″ | 50′ | ESI 07 | 49 | 1/2″ MBSP | 48.50 | DMO 1315ES |
| A (inch) | B (inch) | C (inch) | Reference |
|---|---|---|---|
| 19.094 | 18.701 | 9.331 | DMO 0810IS |
| 19.094 | 18.701 | 9.331 | DMO 0815IS |
| 19.094 | 18.701 | 9.331 | DMO 0820IS |
| 19.094 | 18.701 | 9.331 | DMO 1010IS |
| 19.094 | 18.701 | 9.331 | DMO 1015IS |
| 19.094 | 18.701 | 9.331 | DMO 1020IS |
| 19.094 | 18.701 | 9.331 | DMO 1315IS |
| 19.094 | 18.701 | 9.331 | DMO 0810US |
| 19.094 | 18.701 | 9.331 | DMO 0815US |
| 19.094 | 18.701 | 9.331 | DMO 0820US |
| 19.094 | 18.701 | 9.331 | DMO 1010US |
| 19.094 | 18.701 | 9.331 | DMO 1015US |
| 19.094 | 18.701 | 9.331 | DMO 1020US |
| 19.094 | 18.701 | 9.331 | DMO 1315US |
| 19.094 | 18.701 | 9.331 | DMO 0810ES |
| 19.094 | 18.701 | 9.331 | DMO 0815ES |
| 19.094 | 18.701 | 9.331 | DMO 0820ES |
| 19.094 | 18.701 | 9.331 | DMO 1010ES |
| 19.094 | 18.701 | 9.331 | DMO 1015ES |
| 19.094 | 18.701 | 9.331 | DMO 1020ES |
| 19.094 | 18.701 | 9.331 | DMO 1315ES |
| 19.094 | 18.701 | 9.331 | DMO 0810CS |
| 19.094 | 18.701 | 9.331 | DMO 0815CS |
| 19.094 | 18.701 | 9.331 | DMO 0820CS |
| 19.094 | 18.701 | 9.331 | DMO 1010CS |
| 19.094 | 18.701 | 9.331 | DMO 1015CS |
| 19.094 | 18.701 | 9.331 | DMO 1020CS |
| 19.094 | 18.701 | 9.331 | DMO 1315CS |
Additional information
| ID (in) | 1/2, 3/8, 5/16 |
|---|---|
| Length (ft) | 33, 50, 65 |
| Connection | Automotive (USI 06), High Flow (ESI 07), Industrial (ISI 06) |
| Product Range | Hose Reels |
