Prevost Dlo Series – Extra Large – Rubber Hose
$1,602.00 – $1,605.00
- Description
- Additional information
Description
DLO SERIES – EXTRA LARGE – RUBBER HOSE
Technical specifications
-
Technology :Pipe locked with ratchet stop
-
Max operating pressure :174 psi
-
Construction :Epoxy-coated steel case
-
Connection :3.3 ft of inlet supply hose
-
Equipped with :Fixed bracket
Fixed bracket
Inlet: 1/2″ FBSP
Inlet: 1″ MBSP for DLO 1920
3.3 ft hose
Outlet: with prevoS1 safety quick coupling
Temperature: 5°F to 158°F
Pressure: 174 psi
| ID (in) | Length (ft) | Coupler | Flow rate (cfm) | Swivel inlet BSPP male thread | Weight (lb) | Reference |
|---|---|---|---|---|---|---|
| 1/2″ | 98′ | ISI 11 | 30 | 1/2″ MBSP | 85.99 | DLO 1330IS |
| 5/8″ | 82′ | ISI 11 | 60 | 1/2″ MBSP | 90.40 | DLO 1625IS |
| 3/4″ | 65′ | ISI 11 | 85 | 1″ MBSP | 92.61 | DLO 1920IS |
| 1/2″ | 98′ | USI 11 | 30 | 1/2″ MBSP | 85.99 | DLO 1330US |
| 5/8″ | 82′ | USI 11 | 60 | 1/2″ MBSP | 90.40 | DLO 1625US |
| 3/4″ | 65′ | USI 11 | 85 | 1″ MBSP | 92.61 | DLO 1920US |
| 1/2″ | 98′ | ESI 11 | 30 | 1/2″ MBSP | 85.99 | DLO 1330ES |
| 5/8″ | 82′ | ESI 11 | 60 | 1/2″ MBSP | 90.40 | DLO 1625ES |
| 3/4″ | 65′ | ESI 11 | 85 | 1″ MBSP | 92.61 | DLO 1920ES |

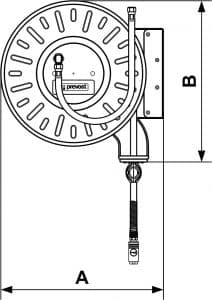

| A (inch) | B (inch) | Reference |
|---|---|---|
| 24.213 | 24.016 | DLO 1330IS |
| 24.213 | 24.016 | DLO 1625IS |
| 24.213 | 24.016 | DLO 1920IS |
| 24.213 | 24.016 | DLO 1330US |
| 24.213 | 24.016 | DLO 1625US |
| 24.213 | 24.016 | DLO 1920US |
| 24.213 | 24.016 | DLO 1330ES |
| 24.213 | 24.016 | DLO 1625ES |
| 24.213 | 24.016 | DLO 1920ES |
Additional information
| Connection | Automotive (USI 11), High Flow (ESI 11), Industrial (ISI 11) |
|---|---|
| ID (in) | 1/2, 3/4, 5/8 |
| Length (ft) | 65, 82, 98 |
| Product Range | Hose Reels |
