Description

Technical specifications
  • Technology :Pipe locked with ratchet stop

  • Construction :Epoxy-coated steel case

  • Equipped with :Fixed bracket

Pressure: 5800 PSI
Outlet BSPP male thread Swivel inlet BSPP female thread Capacity (ft) Weight (lbs) Reference
3/8″ MBSP 3/8″ FBSP 50′ 33.07 DMO NHP
3/8″ MBSP 3/8″ FBSP 65′ 44.10 DGO NHP

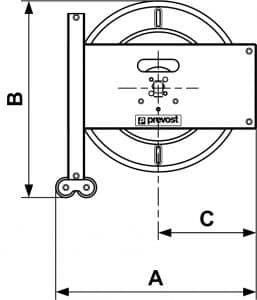

A (inch) B (inch) C (inch) Reference
19.094 18.701 9.331 DMO NHP
19.094 18.898 9.331 DGO NHP

Additional information

Capacity

50 ft, 65 ft

Product Range

Hose Reels
