Prevost Dmoi – DGOi Series – 304 – Open Hose Reel – Stainless Steel Low Pressure Water – Food Grade

Prevost DRF/I Series – 304 Stainless Steel – Polyurethane Hose Ether Base
304 STAINLESS STEEL WITH RUBBER HOSE - FOOD GRADE Prevost 304 Stainless Steel With Rubber Hose – Food Grade

Prevost Dmoi – DGOi Series – 304 – Open Hose Reel – Stainless Steel Low Pressure Water – Food Grade

$1,185.00 – $1,226.00

In stock

$1,185.00 – $1,226.00

SKU: N/A Categories: ,
Read More About Length (ft)
Clear
View cart

Description

DMOI – DGOI SERIES – 304 – OPEN HOSE REEL – STAINLESS STEEL LOW PRESSURE WATER – FOOD GRADE

Technical specifications
  • Technology :Pipe locked with ratchet stop

  • Max operating pressure :145 psi

  • Temperature : 5°F to 140°F

  • Construction :AISI 304 stainless steel case

  • Connection :3.3 ft of inlet supply hose

  • Equipped with :Fixed bracket

Fixed bracket

Inlet: 1/2″ MBSP

3.3 ft hose

Outlet: thread valved coupling ELS 09

Temperature : 5°F to 140°F

Pressure : 145 psi

ID (in) Length (ft) Coupler Swivel inlet BSPP male thread Weight (lb) Reference
5/8″ 33′ ELS 09 1/2″ MBSP 44.10 DMOI 1610LS
5/8″ 50′ ELS 09 1/2″ MBSP 55.12 DGOI 1615LS

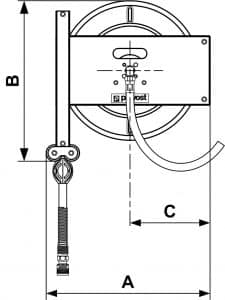

A (inch) B (inch) C (inch) Reference
19.094 18.701 9.331 DMOI 1610LS
19.094 18.701 9.331 DGOI 1615LS

Additional information

Length (ft)

33, 50
Product Range

Hose Reels
