Prevost DRF/I Series – 304 Stainless Steel
Price range: $665.22 through $732.46
- Description
- Additional information
- Dimensions
Description

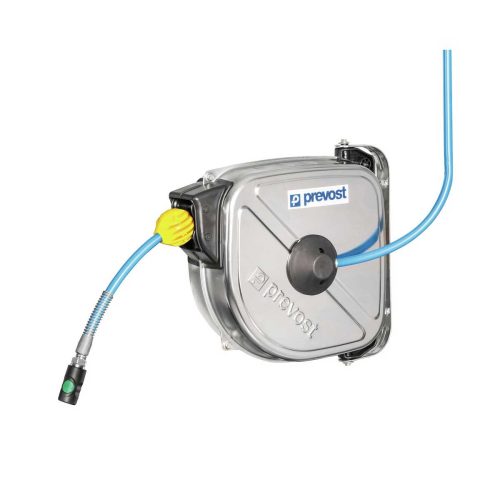

Prevost DRF/I Series – 304 Stainless Steel Hose Reel
Sanitary Design. Rugged Performance. Designed specifically for the rigorous demands of the food processing, pharmaceutical, and chemical industries, the Prevost DRF/I Series is a fully enclosed hose reel manufactured from high-grade 304 Stainless Steel. This reel combines Prevost’s smooth retraction technology with a corrosion-resistant housing that withstands aggressive washdowns and harsh environments.
Hygiene & Durability The external casing is crafted entirely from 304 Stainless Steel with a polished finish, making it easy to clean and resistant to rust, chemical agents, and detergents. The fully enclosed design (casing) protects the hose inside from collecting dust, debris, or contaminants, ensuring your facility meets strict hygiene standards (HACCP compatible).
Key Features:
- 304 Stainless Steel Housing: Provides superior resistance to corrosion and oxidizing agents compared to standard powder-coated steel. Perfect for wet environments or areas requiring frequent sanitation.
- Food-Grade Hose (Optional): Compatible with Prevost’s specific food-quality hot water hoses (often blue or white, rated for high temps) resistant to animal fats and vegetable oils.
- Smooth Retraction: Features a permanently lubricated spring mechanism for reliable, effortless retraction every time.
- Adjustable Hose Stop: Allows the user to set the precise length of hose remaining outside the reel, keeping controls within reach but off the floor.
- Versatile Mounting: Can be mounted on walls, ceilings, or beams. (Swivel bracket accessories available separately to allow the reel to follow the operator).
Technical Specifications:
- Casing Material: 304 Stainless Steel (AISI 304)
- Pressure Rating: Models available for Low Pressure (Air/Water) up to Medium/High Pressure (Washdown).
- Temperature: Handles hot water washdown (typically up to ~140°F – 194°F / 60°C – 90°C depending on the specific hose installed).
- Hose Capacity: Available in various lengths (typically 10m to 20m) and diameters (3/8″, 1/2″).
- Feed Inlet: Swivel inlet designed to minimize friction and wear.
Ideal Applications:
- Food & Beverage Processing Plants
- Commercial Kitchens
- Dairies & Abattoirs
- Pharmaceutical Manufacturing
- Marine & Offshore Environments
Additional information
| Product Range | Hose Reels |
|---|---|
| Connection | High Flow (ESI 07), ELS 09 |
| Fluid Type | Air, Water |
| ID (in) | 3/8 in |
| Length (ft) | 40 |
| Option | Standard, High Visibility |
DRF/I SERIES – 304 STAINLESS STEEL – POLYURETHANE HOSE ETHER BASE

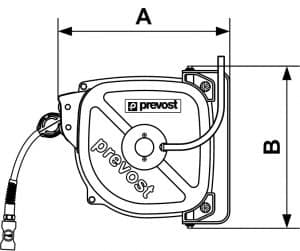

| Reference | ID (in) | Length (ft) | Coupler | Flow rate (cfm) | Fixed inlet (in) | Weight (lb) | A (inch) | B (inch) |
|---|---|---|---|---|---|---|---|---|
| DRFI 1012ESHE | 3/8″ | 40′ | ESI 07HE | 28 | 3/8″ | 14.99 | 14.567 | 13.268 |
