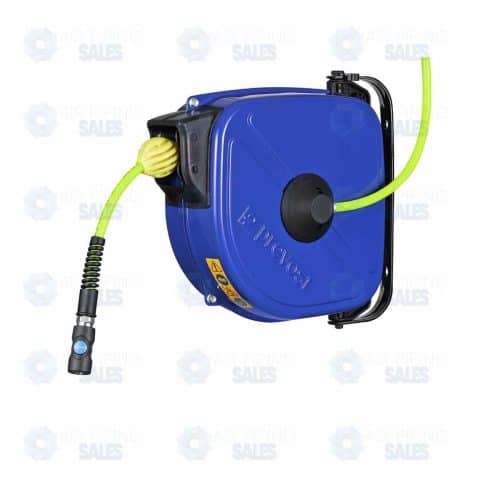

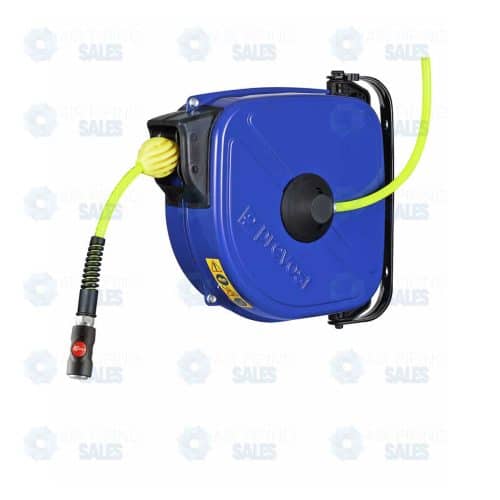

Prevost DRFb Series – Hose Reel W/ Safety Retraction – Pu/Pvc Hose
$296.20 – $342.00
- Description
- Additional information
Description
DRFB SERIES – HOSE REEL W/ SAFETY RETRACTION – PU/PVC HOSE
180° swiveling bracket
Inlet: 3.3 ft hose
Outlet: with prevoS1 safety quick coupling
Temperature: 5°F to 149°F
Pressure: 174 psi
| ID (in) | Length (ft) | Coupler | Fixed inlet (in) | Flow rate (CFM) | Weight (lb) | Reference |
|---|---|---|---|---|---|---|
| 5/16″ | 40′ | ISI 06 | 5/16″ | 18 | 13.22 | DRFB 0812IS |
| 5/16″ | 40′ | ISI 06 | 5/16″ | 12 | 15.43 | DRFB 0815IS |
| 3/8″ | 33′ | ISI 06 | 3/8″ | 29 | 12.57 | DRFB 1010IS |
| 3/8″ | 40′ | ISI 06 | 3/8″ | 28 | 14.99 | DRFB 1012IS |
| 5/16″ | 40′ | USI 06 | 5/16″ | 18 | 13.22 | DRFB 0812US |
| 5/16″ | 50′ | USI 06 | 5/16″ | 12 | 15.43 | DRFB 0815US |
| 3/8″ | 33′ | USI 06 | 3/8″ | 29 | 12.57 | DRFB 1010US |
| 3/8″ | 40′ | USI 06 | 3/8″ | 28 | 14.99 | DRFB 1012US |
| 5/16″ | 40′ | ESI 07 | 5/16″ | 18 | 13.22 | DRFB 0812ES |
| 5/16″ | 50′ | ESI 07 | 5/16″ | 12 | 15.43 | DRFB 0815ES |
| 3/8″ | 33′ | ESI 07 | 3/8″ | 32 | 12.57 | DRFB 1010ES |
| 3/8″ | 40′ | ESI 07 | 3/8″ | 28 | 14.99 | DRFB 1012ES |
| 5/16″ | 40′ | ASI 06 | 5/16″ | 18 | 13.22 | DRFB 0812AS |
| 5/16″ | 50′ | ASI 06 | 5/16″ | 12 | 15.43 | DRFB 0815AS |
| 3/8″ | 33′ | ASI 06 | 3/8″ | 28 | 12.57 | DRFB 1010AS |
| 3/8″ | 40′ | ASI 06 | 3/8″ | 28 | 14.99 | DRFB 1012AS |

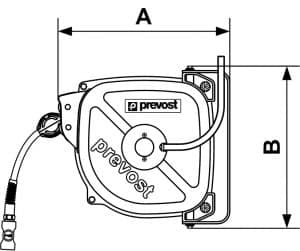

| A (inch) | B (inch) | Reference |
|---|---|---|
| 13.386 | 11.89 | DRFB 0812IS |
| 14.567 | 13.268 | DRFB 0815IS |
| 13.386 | 11.89 | DRFB 1010IS |
| 14.567 | 13.268 | DRFB 1012IS |
| 13.386 | 11.89 | DRFB 0812US |
| 14.567 | 13.268 | DRFB 0815US |
| 13.386 | 11.89 | DRFB 1010US |
| 14.567 | 13.268 | DRFB 1012US |
| 13.386 | 11.89 | DRFB 0812ES |
| 14.567 | 13.268 | DRFB 0815ES |
| 13.386 | 11.89 | DRFB 1010ES |
| 14.567 | 13.268 | DRFB 1012ES |
| 13.386 | 11.89 | DRFB 0812AS |
| 14.567 | 13.268 | DRFB 0815AS |
| 13.386 | 11.89 | DRFB 1010AS |
| 14.567 | 13.268 | DRFB 1012AS |
Additional information
| Connection | ARO 210 (ASI 06), Automotive (USI 06), High Flow (ESI 07), Industrial (ISI 06) |
|---|---|
| Length (ft) | 33, 40, 50 |
| ID (in) | 3/8, 5/16 |
| Product Range | Hose Reels |
