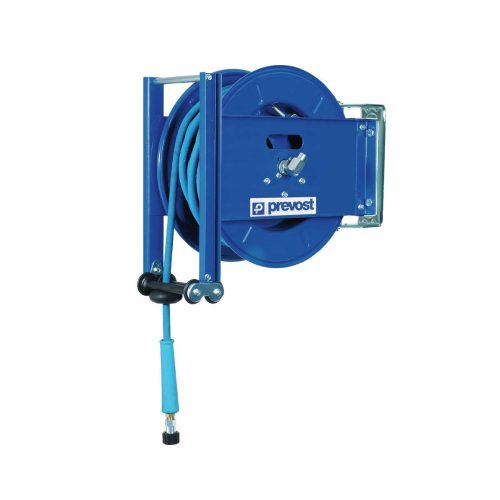

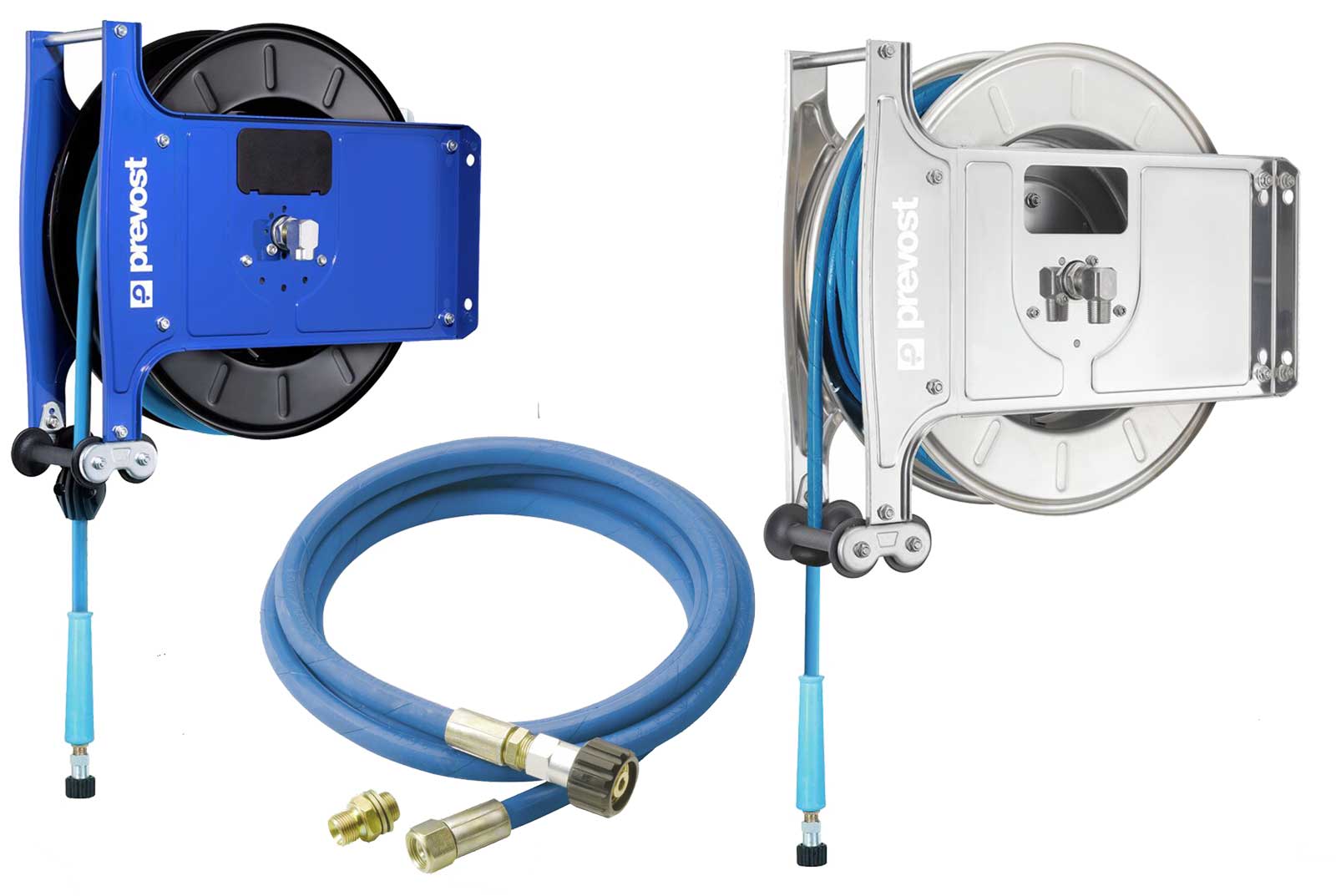

Prevost Open Hose Reel – High Pressure Steel – High Pressure Reinforced Rubber Hose
$660.30 – $861.80
- Description
- Additional information
Description
OPEN HOSE REEL – HIGH PRESSURE STEEL – HIGH PRESSURE REINFORCED RUBBER HOSE
Technical specifications
-
Technology :Pipe locked with ratchet stop
-
Max operating pressure :5800 psi
-
Temperature :-40°F to 302°F
-
Equipped with :Fixed bracket
Inlet: 3/8″ FBSP
Outlet: 3/8″ MBSP male and M22 x 1.5 Female
Temperature: -40°F to 302°F
Pressure: 5800 psi
| 5/16″ | 50′ | 3/8″ MBSP
M22 x 1.5 |
3/8″ FBSP | 35.28 | DMO 0815HP |
| 5/16″ | 65′ | 3/8″ MBSP
M22 x 1.5 |
3/8″ FBSP | 46.30 | DGO 0820HP |
| A (inch) | B (inch) | C (inch) | Reference |
|---|---|---|---|
| 19.094 | 18.701 | 9.331 | DMO 0815HP |
| 19.094 | 18.701 | 9.331 | DGO 0820HP |
Additional information
| Length (ft) | 50, 65 |
|---|---|
| Product Range | Hose Reels |
