Prevost PPS SQMF – Square Female NPT

Description

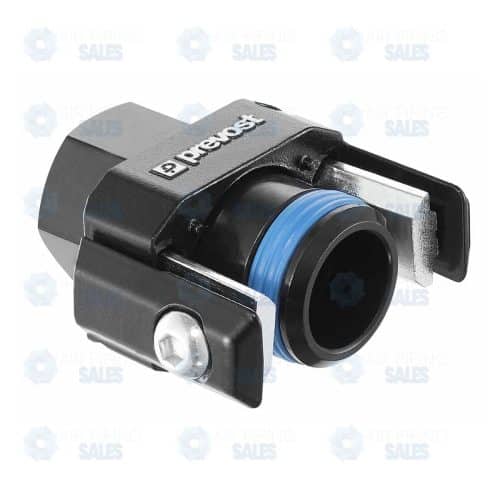

Prevost PPS SQMF – Aluminum Square Profile to Female NPT Adapter

Seamlessly Integrate Threaded Accessories into Your Workstation. The Prevost PPS SQMF is a specialized straight adapter designed exclusively for the Prevost PPS SQ (Square Profile) air distribution system. This fitting allows you to convert the end of your 25mm internal diameter square aluminum beam directly into a standard female NPT thread, enabling the attachment of threaded couplers, hoses, or valves to your ergonomic assembly bench.

• Workstation Flexibility: Acts as the critical bridge between your modular “Square” air manifold and standard pneumatic components, allowing you to install air drops exactly where your operators need them.
• Leak-Free Technology: Utilizes Prevost’s signature PPS Grip Concept—a stainless steel grip ring and lubricated seal—to lock securely into the square profile, ensuring a rugged, airtight connection that withstands vibration.
• 100% Aluminum Construction: Machined from high-grade aluminum with an epoxy coating, offering superior corrosion resistance and a lightweight profile that matches the aesthetics of the PPS SQ beam.
• Easy Installation: Simply push the fitting into the cut end of the square profile and tighten. No welding, gluing, or special crimping tools are required.
• Versatile Connectivity: Provides a robust Female NPT outlet (available in 1/2″) perfect for mounting quick-disconnect couplers, FRL units, or flexible hose whips directly to the structural frame of the workbench.

Technical Specifications:

• Compatible System: Prevost PPS SQ (Square Aluminum Profile – 30x45mm)
• Connection Type: Push-to-connect (Profile side) x Female NPT Thread
• Material: Aluminum Body / Stainless Steel Grip Ring / NBR Seal
• Pressure Rating: Vacuum to 232 PSI (16 bar)
• Temperature Range: -4°F to 176°F (-20°C to 80°C)

This adapter is the key to customizing your industrial furniture and turning structural beams into active, high-performance air supply lines.
