Prevost Fliter-Regulator With Prevos1 Quick Safety Coupling
Price range: $110.73 through $218.86
- Description
- Additional information
Description
Prevost Filter-Regulator With Prevos1 Quick Safety Coupling
Prevost Filtration filter-regulators combine the filtration and regulation functions.
[icon name=”plus” prefix=”fas”]A single compact unit
[icon name=”plus” prefix=”fas”]Use for non-lubricated applications
[icon name=”plus” prefix=”fas”]LOCKABLE REGULATOR
[icon name=”plus” prefix=”fas”]INTEGRATED PRESSURE GAUGE
[icon name=”plus” prefix=”fas”]BARB-TYPE OUTLET
Inlet pressure: 12 to 145 psi
Outlet pressure : 10 to 120 psi
Temperature: 40 deg F to 120 deg F

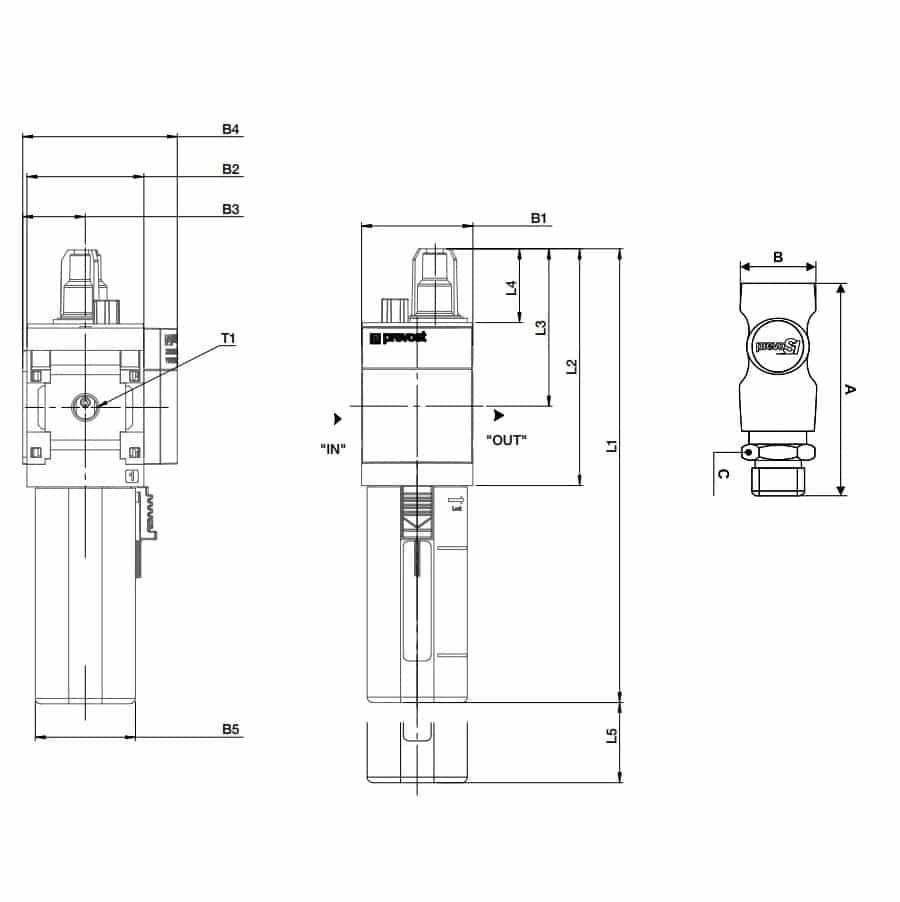

| Module | T1 | L1 | L2 | L3 | L4 | L5 | L6 | L8 | L9 | L10 | ËB1 | B2 | B3 | B4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATU M2585200 | 1/8″ FNPT | 215 mm | 56 mm | 30 mm | 58.5 mm | 137 mm | 159 mm | 4.5 mm | 25 mm | 40 mm | 28 mm | M30x1.5 mm | 42 mm | 58 mm |
| ATU M2585201 | 1/4″ FNPT | 215 mm | 56 mm | 30 mm | 58.5 mm | 137 mm | 159 mm | 4.5 mm | 25 mm | 40 mm | 28 mm | M30x1.5 mm | 42 mm | 58 mm |
| ATU M2585202 | 3/8″ FNPT | 302 mm | 84 mm | 45.5 mm | 89.5 mm | 196 mm | 217 mm | 7 mm | 30 mm | 62 mm | 42.5 mm | M45x1.5 mm | 62 mm | 77.5 mm |
| ATU M2585203 | 1/2″ FNPT | 302 mm | 84 mm | 45.5 mm | 89.5 mm | 196 mm | 217 mm | 7 mm | 30 mm | 62 mm | 42.5 mm | M45x1.5 mm | 62 mm | 77.5 mm |
| Dimensions (mm) | |||
|---|---|---|---|
| ISI 06 | 76.3-82.3 | 30 | 20-26 |
| USI 06 | 76.3-82.3 | 30 | 20-26 |
| ESI 07 | 76.3-82.3 | 30 | 20-26 |
| ASI 06 | 76.3-82.3 | 30 | 20-26 |
Additional information
| Coupler | ISI 06, USI 06, ESI 07, ASI 06 |
|---|---|
| FNTP Thread (in) | 1/8 in FNPT, 1/4 in FNPT, 3/8 in FNPT, 1/2 in FNPT |
