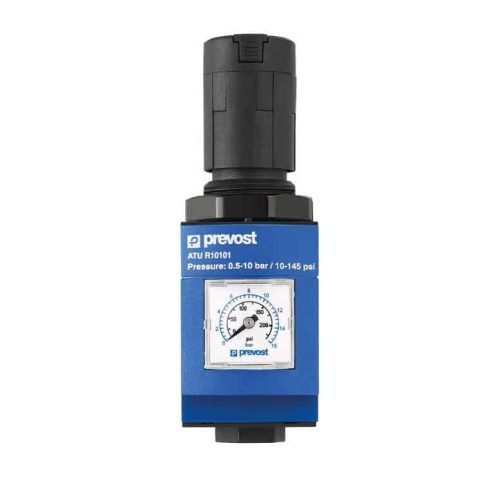

Prevost Regulator

LOCKABLE REGULATOR
INTEGRATED PRESSURE GAUGE
Inlet pressure: 10 to 145 psi, Outlet pressure : 10 to 120 psi, Temperature: 40 deg F to 120 deg F

Module	T1	HEX	L1	L2	L3	L4	L5	L6	L8	ËB1	B2	B3	B4
ATU R10200	1/8″ FNPT	19 mm	121.5 mm	56 mm	30 mm	60 mm	65.5 mm	40 mm	4.5 mm	28 mm	M30x1.5	42 mm	58 mm
ATU R10201	1/4″ FNPT	19 mm	121.5 mm	56 mm	30 mm	60 mm	65.5 mm	40 mm	4.5 mm	28 mm	M30x1.5	42 mm	58 mm
ATU R10202	3/8″ FNPT	30 mm	185 mm	84 mm	45.5 mm	91 mm	100.5 mm	62 mm	7 mm	42.5 mm	M45x1.5	62 mm	77.5 mm
ATU R10203	1/2″ FNPT	30 mm	185 mm	84 mm	45.5 mm	91 mm	100.5 mm	62 mm	7 mm	42.5 mm	M45x1.5	62 mm	77.5 mm
