Prevost Diverter Block 3 Outputs

Description

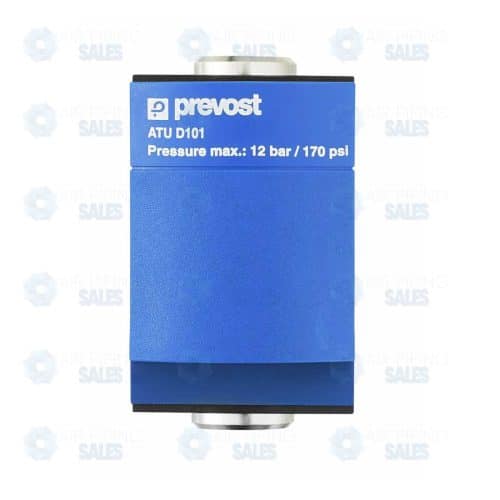

Prevost ALTO (ATU) Diverter Block (3 Outputs)

Expand Your Air Network with Modular Precision

Maximize the connectivity of your air preparation system with the Prevost ALTO (ATU) Diverter Block. Designed to integrate seamlessly into the modular ALTO series or stand alone as a distribution point, this versatile block transforms a single air line into three separate outlets, allowing you to power multiple tools or route air to different machine sections from one central location.

Engineered for flexibility, this block can be installed directly between other FRL components (like a Filter and Regulator) to “tap off” clean air before it is regulated or lubricated, or placed at the end of an assembly to distribute treated air to three workstations.

Key Features & Benefits

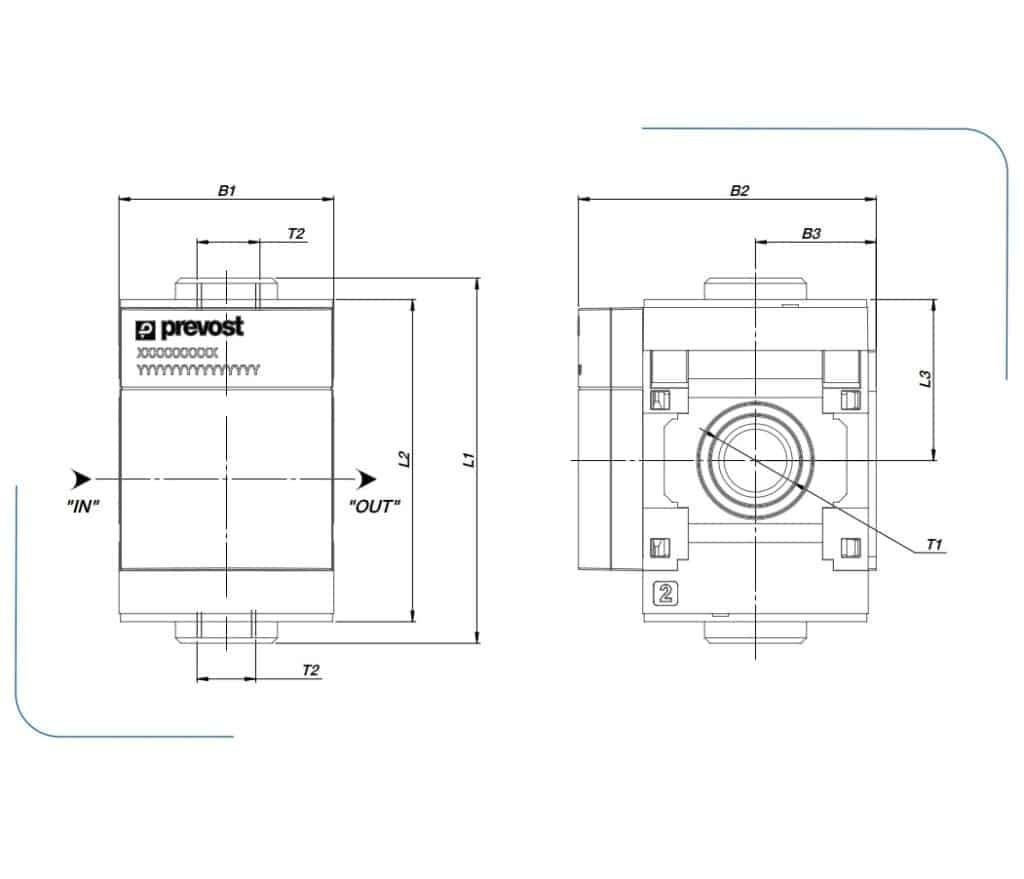

• Triple Output Versatility: Features three threaded ports (typically one top, one bottom, one front/face) allowing for multi-directional piping and flexible hose routing.
• Modular Integration: Designed with the standard ALTO connection faces, allowing it to clamp securely between filters, regulators, and lubricators using simple joining kits—no pipe nipples or thread sealant required for the main pass-through.
• Intermediate Air Take-Off: Ideal for tapping “non-lubricated” air for a blow gun or spray gun before the air enters a lubricator meant for impact tools.
• Compact & Durable: Constructed from robust aluminum or industrial polymer (series dependent) to withstand high pressure and shop environments without taking up excess space.
• High Flow Throughput: Full-bore design ensures minimal pressure drop across the main line, even when auxiliary ports are in use.

Technical Specifications

Ideal Applications

• Dual-Purpose Stations: Installing the block after the Filter/Regulator but before the Lubricator. This gives you one port for a lubricated impact wrench and a separate “clean” port for a blow gun or tire inflator.
• Manifolding: Splitting a single main drop to serve three different operators on a workbench.
• Sensor Installation: Providing a convenient port to install a digital pressure switch or gauge without disrupting the main piping.
• Complex Routing: Directing air piping up, down, and forward simultaneously to navigate tight machinery spaces.

Pro Tip: If you do not need all three outlets, simply seal the unused ports with Prevost Threaded Plugs (sold separately) to maintain system pressure.
