Prevost Male NPT Elbow

Description

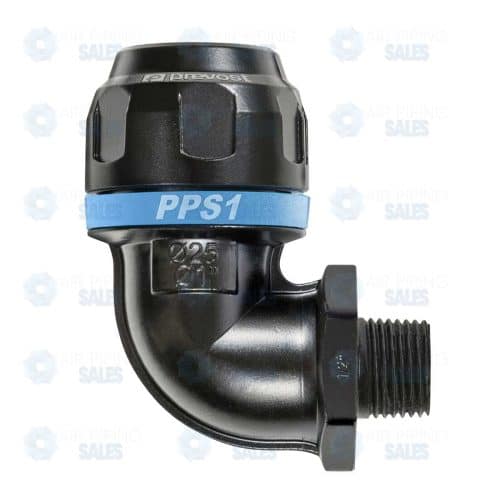

Prevost Male NPT Elbow – Prevost PPS 90° Male Thread Elbow

The Prevost PPS 90° Male Thread Elbow is a compact, space-saving connector designed to link the Prevost aluminum piping system directly to threaded equipment at a right angle. This fitting features a precision-machined male thread (NPT or BSPT) on one side and the secure PPS push-to-connect technology on the other.

This component is the perfect solution for tight installations where there isn’t enough room to use a straight adapter and a bent pipe. It allows you to connect piping directly to compressor outlets, receiver tanks, or FRL units that are positioned close to walls or inside confined machinery cabinets.

Key Features & Benefits

• Compact Equipment Connection: Eliminates the need for a separate male nipple and a threaded street elbow. This single-piece design creates a much lower profile, ideal for connecting air supplies in restricted spaces.
• Direct 90° Transition: Allows the piping to turn immediately upon exiting the equipment, keeping the installation tidy and reducing the mechanical leverage/stress placed on the equipment’s outlet port.
• PPS Grip Security: The pipe side utilizes Prevost’s signature stainless steel grip ring and lubricated seal, ensuring that the aluminum pipe is held rigidly and leak-free, even under vibration.
• High-Quality Threading: Features a tapered male thread (NPT or BSPT) that ensures a pressure-tight seal when used with standard PTFE tape or sealing paste.
• All-Aluminum Durability: Constructed from the same corrosion-resistant aluminum alloy as the pipe, ensuring electrical continuity and preventing galvanic corrosion at the connection point.

Technical Specifications

• Part Series: PPS1 90M (Male Elbow)
• Connection Type:
  • Side A: Tapered Male Thread (NPT or BSPT)
  • Side B: PPS Connection for Aluminum Pipe
• Body Material: Aluminum Alloy (EN AW 6082 T6)
• Operating Pressure: Up to 232 PSI (16 bar)
• Operating Temperature: -4°F to +176°F (-20°C to +80°C)
• Vacuum Compatible: Yes
• Flow: smooth internal radius to minimize pressure drop compared to sharp-cornered fittings.

Ideal Applications

• Compressor & Tank Hookups: Connecting to the top or side outlet of a receiver tank where the pipe must immediately run horizontally along the ceiling.
• FRL Units: Connecting air preparation units (filters/regulators) directly to the pipe line in a tight workshop corner.
• Machinery Inlets: Connecting the main air line to the inlet port of a machine where a straight sticking-out pipe would be a hazard.



Technical specifications

• Technology :PPS Grip Concept
• Operating pressure :0 to 232 psi
• Vacuum capability :0.59 inHg (vacuum 98%)
• Temperature :-4 deg. F to 176 deg. F
• Construction :Pipe and fittings: aluminum
• Highlight :Scalable system
• Meets standards :ASME B31.3 REACH

For pipe OD (in)NPT male threadReference1/2″3/8″ MNPTPPS1 9CM162521/2″1/2″ MNPTPPS1 9CM162533/4″1/2″ MNPTPPS1 9CM202531″1/2″ MNPTPPS1 9CM252531″3/4″ MNPTPPS1 9CM252541 1/4″1″ MNPTPPS1 9CM322551 1/2″1 1/4″ MNPTPPS1 9CM402561 1/2″1 1/2″ MNPTPPS1 9CM40257

A (inch)	B (inch)	C (mm)	D (inch)	Reference
1.26	2.362	50	1.024	PPS1 9CM16252
1.26	2.362	55	1.024	PPS1 9CM16253
1.496	2.835	61	1.26	PPS1 9CM20253
1.811	3.425	71	1.496	PPS1 9CM25253
1.811	3.425	72	1.496	PPS1 9CM25254
2.244	4.055	88	1.811	PPS1 9CM32255
2.677	4.843	106	2.244	PPS1 9CM40256
2.677	4.843	106	2.244	PPS1 9CM40257
