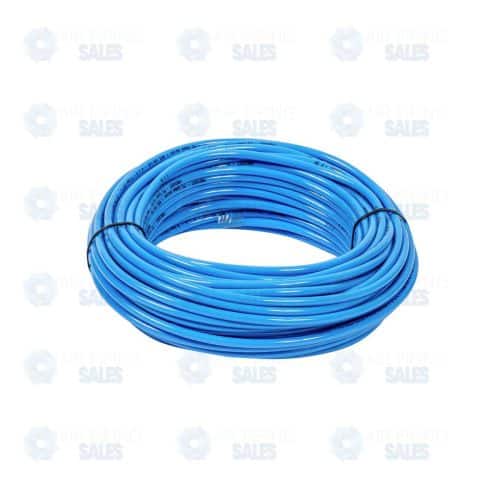

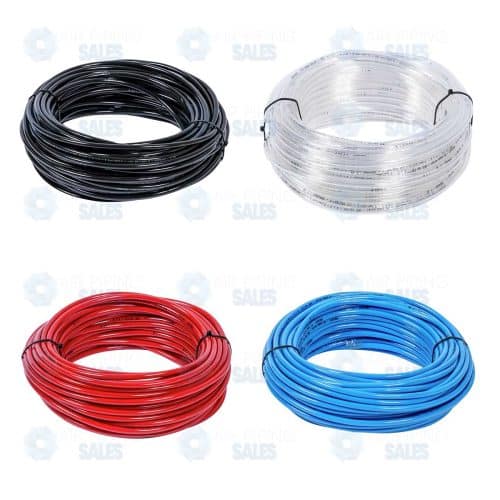

Prevost Polyamide (Nylon) Tubing

Description

Prevost Polyamide (Nylon) Tubing

The High-Pressure Choice for Robust Pneumatic Infrastructure

The Prevost Polyamide (Nylon) Tubing is engineered for demanding industrial environments that require higher pressure ratings and greater chemical resistance than standard polyurethane. Known for its exceptional dimensional stability and mechanical strength, this tubing is the industry standard for primary air distribution, high-pressure control lines, and long-range pneumatic circuits.

Unlike softer tubing, Prevost Nylon is rigid enough to maintain its shape over long distances while remaining light enough for easy installation.

Key Features

• High Pressure & Temperature Resilience: Polyamide construction allows for significantly higher working pressures than PU tubing, making it ideal for heavy-duty industrial machinery and compressed air headers.
• Superior Chemical Stability: Highly resistant to a wide array of chemicals, including hydraulic fluids, oils, fuels, and common industrial solvents.¹ It is also naturally resistant to UV degradation and “stress cracking.”
• Low Moisture Absorption: Unlike other plastics, Prevost’s high-grade Polyamide absorbs very little moisture, ensuring the tubing maintains its physical properties and tight tolerances even in humid environments.
• Smooth Internal Bore: The ultra-smooth interior surface minimizes friction loss, ensuring maximum air velocity and flow (CFM) from the source to the tool.
• Calibrated for Precision: Manufactured to strict ISO standards for outside diameter (OD), ensuring a seamless, airtight connection with push-to-connect and compression fittings.

Technical Specifications

Feature	Specification
Material	Polyamide (Nylon 11 or 12)
Operating Pressure	Up to 290 PSI (20 bar) depending on wall thickness
Temperature Range	-40°C to +100°C (-40°F to 212°F)
Shore Hardness	62 to 70 Shore D (Semi-Rigid)
Safety Factor	3:1
Compatibility	Compressed air, vacuum, lubricants, and fuel



When to Choose Polyamide (Nylon) over Polyurethane (PU)?

While PU is chosen for its “rubber-like” flexibility, Nylon is the superior choice when:

1. Higher Pressures: You are operating near or above 150 PSI.
2. Temperature Extremes: The environment is subject to high heat (up to 100°C).
3. Rigid Routing: You need the tubing to stay straight and not “sag” across long horizontal runs.
4. Chemical Exposure: The lines may come into contact with aggressive lubricants or fuels.

Available Packaging

Prevost Polyamide tubing is available in various formats to suit your project size: 100, 500 & 1000 Foot Rolls
