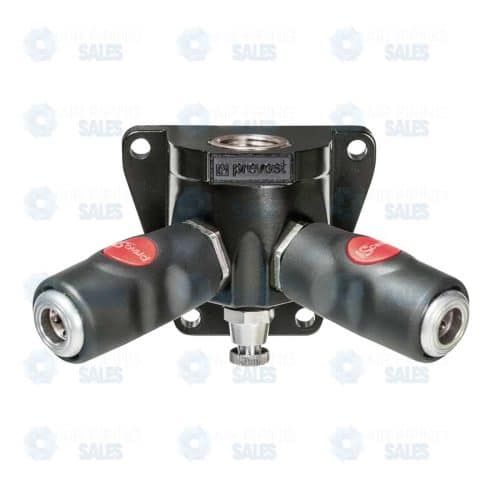

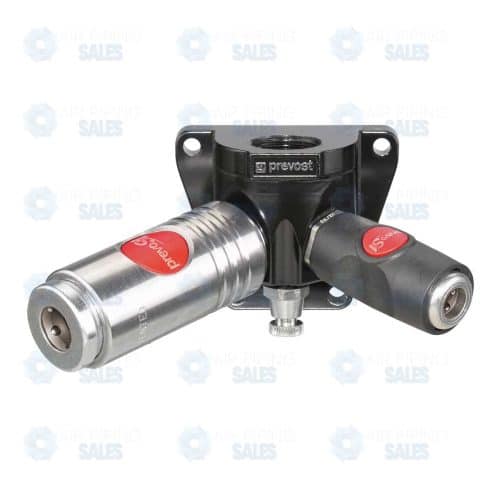

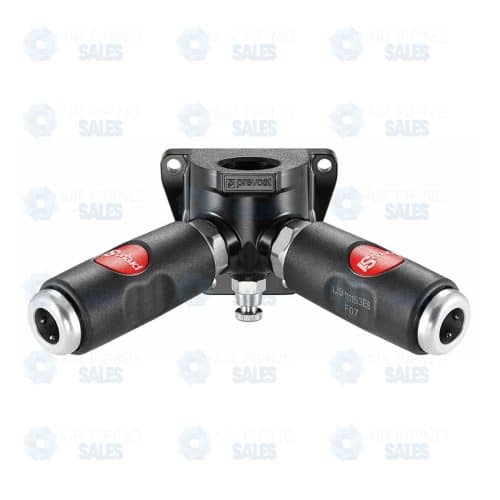

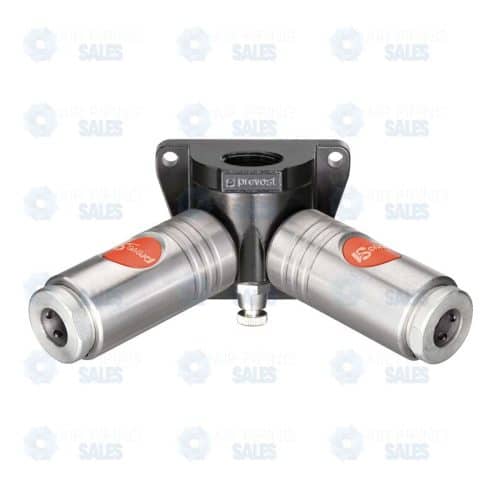

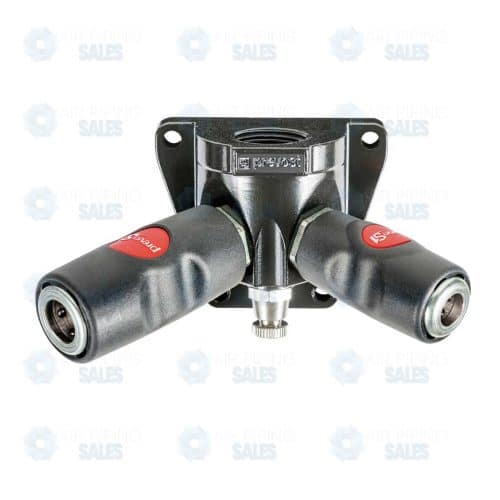

Prevost Female Thread Double Wall Manifold – Automotive Interchange

Description

Prevost Female Thread Double Wall Manifold – Automotive Interchange

Double the Productivity, Maximum Safety: The Dual-Outlet Workstation Solution

The Prevost Female Thread Double Wall Manifold is the ultimate efficiency upgrade for busy automotive shops and industrial garages. By integrating two high-performance prevoS1 safety couplers into a single, wall-mounted unit, this manifold allows two technicians to work simultaneously from the same drop—or lets one operator keep two different tools (e.g., an impact gun and a tire gauge) connected and ready to go.

Designed for the standard Automotive (Tru-Flate / T-Style) profile, this unit features Prevost’s patented anti-hose whip technology. A single push of the button automatically vents downstream pressure before releasing the plug, ensuring 100% safety and protecting vehicles from accidental hose damage.

Key Features

• Dual-User Capability: Features two angled outlets, allowing multiple hoses to be connected without tangling. This effectively doubles the utility of every air drop in your facility.
• prevoS1 Safety Technology: Equipped with two Automotive Interchange Safety Couplers that prevent the dangerous “whip” and noise blast associated with disconnecting pressurized lines.
• Robust Wall Mount: The heavy-duty anodized aluminum block anchors firmly to walls or beams, eliminating the stress on your piping system caused by dragging hoses.
• Superior Flow Dynamics: Engineered with a large internal bore to supply sufficient CFM to run two high-demand tools (like impact wrenches or sanders) simultaneously without significant pressure drop.
• Leak-Free Durability: The couplers utilize precision-molded composite bodies and high-grade seals, ensuring your air compressor isn’t wasting energy fighting leaks at the point of use.

Technical Specifications

Feature	Specification
Profile	Automotive Interchange (Tru-Flate / T-Style)
Configuration	Double Outlet (Y-Shape Manifold)
Inlet Connection	Female NPT (Top Inlet)
Auxiliary Port	Bottom Female NPT (Drain or Flow-Through)
Safety Mechanism	One-Push Anti-Hose Whip
Body Material	Aluminum Alloy Block / Composite Couplers
Max Pressure	174 PSI (12 bar)

Why Choose a Double Manifold?

In a high-paced environment like a tire shop or collision center, swapping tools costs time. The Prevost Double Wall Manifold streamlines workflow by keeping essential tools connected. Furthermore, by fixing the connection point to the wall, you prevent couplers from being dragged across the floor, significantly extending their service life compared to hanging hose drops.

Ideal Applications

• Dual-Tech Bays: allowing two mechanics to share a central air supply between lifts.
• Dedicated Task Stations: Keeping a blow gun and an impact wrench permanently connected at a workbench.
• Assembly Lines: Providing multiple connection points for pneumatic drivers and riveters at a single station.

Installation Tip

When connecting this manifold to your compressed air piping drop, use a high-quality thread sealant on the top inlet. The bottom port is typically used as a condensate drain; we recommend installing a small ball valve here to easily purge any moisture that collects in the vertical drop leg, protecting your air tools from water damage.
