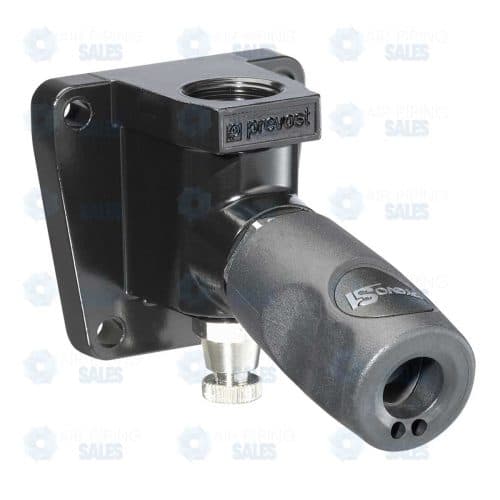

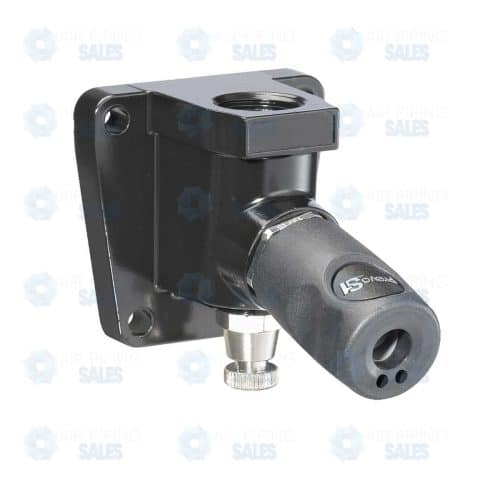

Prevost Female Single-Wall Manifold (ISO 6150 C Interchange)

High-Flow Safety for Modern Workstations.

Streamline your air drops with the Prevost Female Single-Wall Manifold, equipped with the advanced Prevo S1 Safety Coupler (CSM Series). Designed for systems using the ISO 6150 C (Blue Button) profile, this integrated manifold unit provides a secure, high-flow outlet directly from your wall or drop leg.

This unit combines a robust mounting base with the legendary safety of the Prevo S1, eliminating the need for complex assemblies of separate wall brackets, pipe nipples, and couplers.

Key Features & Benefits

  • ISO 6150 C Interchange: Specifically designed for the heavy-duty “C-Profile” plug (6mm, 8mm, or 11mm). The Blue Button provides instant visual confirmation of the profile, ensuring compatibility with your existing high-flow tools.
  • Patented “One-Push” Safety: Prevents accidental injury with a single press. The button automatically vents downstream pressure before releasing the plug, eliminating dangerous “hose whip” and loud disconnection blasts.
  • Single-Piece Wall Mount: The coupler body features an integrated 45-degree wall flange with pre-drilled mounting holes. This ensures a rigid, ergonomic installation that angles the hose away from the wall, reducing strain on the connection.
  • Leak-Free Performance: The precision-molded composite body and nitrile seals guarantee a 100% airtight seal, preventing the costly energy waste associated with leaking brass couplers.
  • High Flow Rate: The ISO 6150 C profile is a “straight-through” design known for superior airflow, making this manifold ideal for air-hungry tools like large impact wrenches, sanders, and grinders.

Technical Specifications

Feature Specification
Interchange Profile ISO 6150 C (C-Profile)
Series CSM (Prevo S1)
Button Color Blue (Standard C-Profile ID)
Inlet Connection Female Thread (NPT or BSPP)
Body Material Impact-Resistant Composite
Mounting 2-Hole Wall Flange (Integrated)
Pressure Rating Up to 174 PSI (12 Bar)
Temperature Range 5°F to 158°F (-15°C to +70°C)
Safety Standard ISO 4414 (Anti-Hose Whip)

Ideal Applications

  • High-Demand Workstations: Perfect for automotive and industrial stations requiring maximum airflow for large tools.
  • Fixed Drops: Installing rigid air outlets on walls, columns, or machinery panels.
  • Safety Upgrades: Replacing dangerous, leaking wall couplers with a compliant safety system.

Why Choose the CSM Manifold?

Stop piecing together random fittings. The Prevost Single-Wall Manifold gives you a professional, purpose-built outlet that is safer for your employees and more efficient for your tools. It is the cleanest way to terminate a drop.

Additional information

Body Size

,

Connection End

Manifold
Coupler Material

Composite
Interchange Type

Product Range

Prevo S1
