Prevost Conex Tube/Male Thread Valve Three-Ways

Description

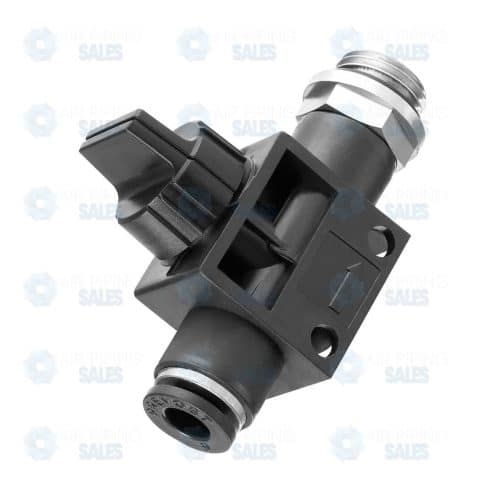

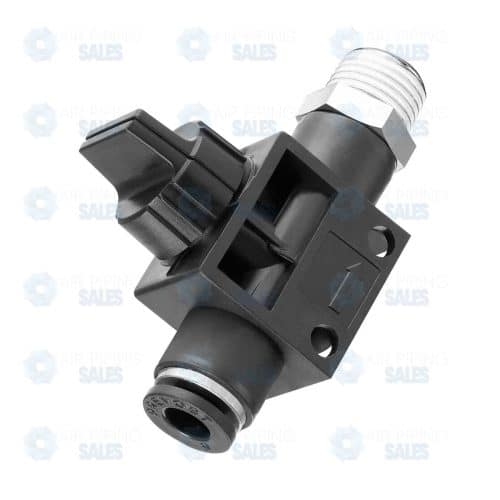

Prevost Conex Tube/Male Thread Valve Three-Ways

In-Line Distribution with Direct Port Integration

The Prevost Conex Tube/Male Thread Valve Three-Ways is a specialized manual control junction designed to receive air from a supply line and distribute it to two separate paths: one via a direct threaded port and another via a push-in branch. This unique “Inlet Tube / Outlet Male” configuration is the perfect solution for tapping into a main air line and providing a controlled supply directly into a manifold, cylinder, or air tool while maintaining a secondary tubing run.

Equipped with a high-visibility manual lever, this valve allows for the simultaneous isolation of both downstream outlets with a simple 90 degree turn.

Key Features

• Hybrid Distribution Logic: Features a push-in tube inlet and two outlets: one male threaded and one push-in tube. This allows you to “hard-mount” the valve into a component while still acting as a junction for a continuous tubing circuit.
• Manual “Master” Command: The ergonomic 90-degree lever provides instant control over the air supply. It acts as a localized shut-off point, allowing technicians to isolate a specific actuator or machine section without depressurizing the entire system.
• 360° Swivel Body: After the male threaded outlet is secured into a port, the valve body can be rotated fully. This ensures the manual lever and the tubing inlet/outlet are positioned perfectly for operator access and clean line routing.
• Instantaneous “Grip” Technology: The push-in ports feature Prevost’s signature stainless steel gripping rings. Simply push the technical tubing (PU, PA, or PE) in for a secure, vibration-proof, and airtight seal—no tools or clamps required.
• Rugged Industrial Build: Combining a nickel-plated brass threaded base for mechanical strength with a high-impact technical polymer body, this valve is resistant to corrosion, moisture, and common industrial oils.

Technical Specifications

Feature	Specification
Connection Type	3-Way Valve (Tube Inlet / 1x Male Outlet & 1x Tube Outlet)
Valve Function	Manual Shut-off / Distribution
Technology	Push-to-connect (Instantaneous)
Max Operating Pressure	145 PSI (10 bar)
Vacuum Rating	-28 inHg
Temperature Range	32°F to 140°F (0°C to +60°C)

The Efficient Command Hub for Modular Design

The Prevost Conex Three-Way Valve is a “system-level” problem solver. It is frequently used to create an “interruptible” air path. By mounting the male thread directly into a valve manifold and using the tubing ports as a “pass-through,” you can:

1. Isolate Specific Tools: Shut off air to a single machine station for repair while the main line continues to feed other components.
2. Simplify Plumbing: Replace a complex assembly of separate tees, nipples, and valves with a single, streamlined component.
3. Enhance Safety: Provide a clear, manual lockout point at the point of use, improving safety protocols for maintenance personnel.

Ideal Applications

• Manifold Header Links: Feeding a manifold block from a main line while providing a branch for a secondary sensor or gauge.
• Air-Driven Machinery: Serving as a master manual shut-off mounted directly to the air inlet port of a machine.
• Workstation Drops: Linking multiple pneumatic workstations in series with the ability to shut off individual stations.
• Robotic Tooling: Distributing air through a robot’s internal lines with a manual override at the end-of-arm tool.

Installation Tip

When threading the male outlet into your port, use a wrench on the hexagonal brass base to ensure a primary seal (using thread sealant for NPT or the integrated gasket for BSPP). Once the body is swiveled to the desired orientation, insert your tubing into the push-in ports. For a 100% leak-free connection, always use a dedicated tube cutter to ensure the tubing ends are cut perfectly square.
