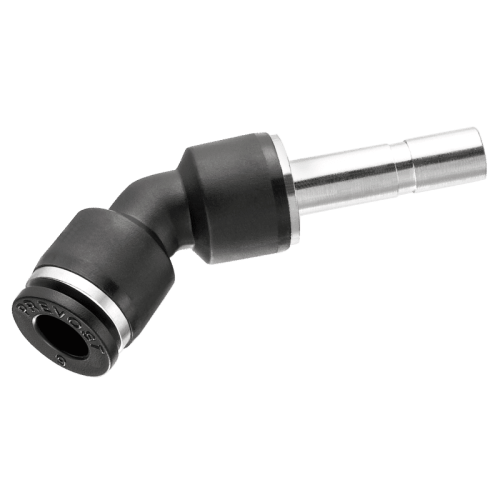

Prevost Conex 45 Degree Plug-In Elbow
$2.15 – $6.09
- Description
- Additional information
Description
Technical specifications
-
Operating pressure :0 to 145 psi
-
Temperature : 32°F to 140°F
-
Construction :Polymer and nickel-plated brass
45° PLUG-IN ELBOW – FRACTIONAL INCH TUBE – RPQ PT
| For tube OD (in) | Fitting ID (in) | Reference |
|---|---|---|
| 1/8 | 1/8 | RPQ PT1818 |
| 5/32 | 5/32 | RPQ PT5353 |
| 3/16 | 3/16 | RPQ PT3131 |
| 1/4 | 1/4 | RPQ PT4141 |
| 5/16 | 5/16 | RPQ PT5151 |
| 3/8 | 3/8 | RPQ PT3838 |
| 1/2 | 1/2 | RPQ PT2121 |
45° PLUG-IN ELBOW – METRIC TUBE – RPQ PT
| For tube OD (mm) | Fitting ID (mm) | Reference |
|---|---|---|
| 4 | 4 | RPQ PT0404 |
| 6 | 6 | RPQ PT0606 |
| 8 | 8 | RPQ PT0808 |
| 10 | 10 | RPQ PT1010 |
| 12 | 12 | RPQ PT1212 |
Additional information
| Tube OD | 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm |
|---|---|
| Fitting ID | 1/8, 5/32, 3/16, 1/4, 5/16, 3/8, 1/2, 6 mm, 8 mm, 10 mm, 12 mm, 4 mm, 14 mm, 16 mm |
| Product Range | Conex and Connections |
