Prevost Spacer For Piping Clamp

Description

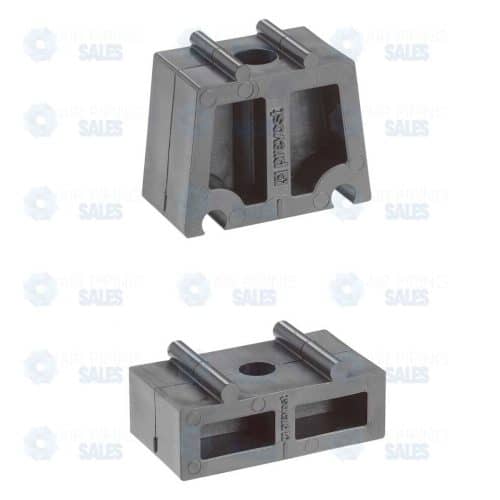

Prevost Spacer For Piping Clamp

Prevost Spacer for Piping Clamp

The Prevost Spacer for Piping Clamp is a practical mounting accessory designed to increase the clearance between your compressed air pipe and the mounting surface. Designed to fit seamlessly with standard Prevost pipe clips, this spacer block acts as a standoff, pushing the pipe further away from the wall or ceiling.

This simple yet essential component is the solution for navigating uneven surfaces, bypassing small obstructions like electrical conduit, or ensuring enough clearance for bulky fittings (such as unions or valves) to sit comfortably without touching the wall.

Key Features & Benefits

• Increased Wall Clearance: Provides immediate additional spacing (typically 15mm-20mm) behind the pipe, allowing the system to “float” over surface irregularities or existing thin cabling.
• Stackable Design: Multiple spacers can often be interlocked or stacked together to achieve greater depth, giving installers complete control over the pipe’s distance from the mounting surface.
• Seamless Compatibility: Engineered to snap or bolt directly to the base of standard Prevost PPS pipe clips, ensuring a stable and rigid support structure.
• Fitting Accommodation: Creates the necessary room for larger fittings—such as ball valves, unions, or tees—that have a larger outer diameter than the pipe itself, preventing them from rubbing against the wall.
• Durable Construction: Made from high-quality, impact-resistant polymer (or aluminum, depending on the specific series) that matches the durability and aesthetic of the pipe clips.

Technical Specifications

• Part Series: PPS1 E (Spacer / Distance Block)
• Material: Industrial Grade Polymer / Nylon
• Compatibility: Fits standard Prevost PPS Pipe Clips
• Offset Distance: Adds approx. 15mm – 20mm per spacer (Check specific part for exact dimension)
• Mounting: Installs between the wall and the pipe clip using a longer screw/bolt.

Ideal Applications

• Rough Surfaces: Installing pipe on brick or uneven concrete walls where a flush mount would cause the pipe to bend or stress.
• Obstacle Avoidance: Jumping over small conduits, wires, or ridges on the wall without using offset bends.
• Valve Clearance: Providing space for the handle of a ball valve to turn freely without hitting the wall.
• Maintenance Access: Creating space behind the pipe for easier cleaning or painting of the wall in the future.

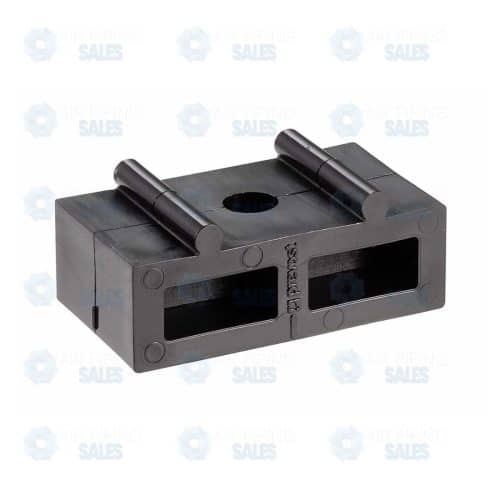

Length (in)Reference(1) 1.38PPS1 CIS1632(2) 0.79PPS1 CIS4050
