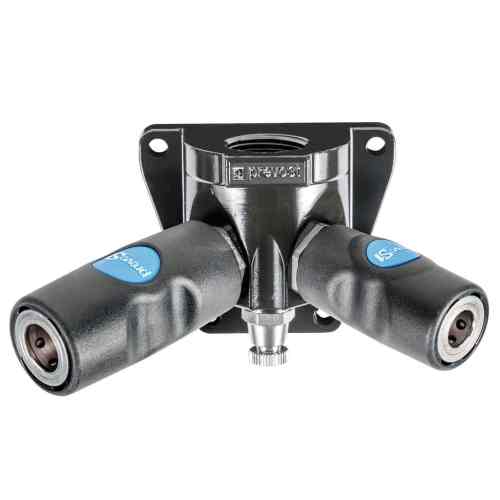

Prevost Female Thread Double Wall Manifold – 2 Couplers And Drain – 3/8″ Industrial Interchange

prevost manifolds with couplers Prevost Female Thread Double Wall Manifold – 2 Couplers And Drain – 1/4″ Industrial Interchange
prevost manifolds with couplers Prevost Female Thread Double Wall Manifold – 2 Couplers And Drain – 1/2″ Industrial Interchange
prevost manifolds with couplers

Prevost Female Thread Double Wall Manifold – 2 Couplers And Drain – 3/8″ Industrial Interchange

Price range: $106.87 through $115.27

In stock

Price range: $106.87 through $115.27

SKU: N/A Categories: , , ,

Description

FEMALE THREAD DOUBLE WALL MANIFOLD – 2 COUPLERS AND DRAIN – 3/8″ INDUSTRIAL INTERCHANGE
Technical specifications

  • Technology :“One push” safety system (avoids hose whip)
  • Operating pressure :29 to 174 psi
  • Flow rate at 100 psi :34 cfm (Delta P = 10 psi)
  • ID Passage :3/8″ body size
  • Temperature : 5 deg. F to 158 deg. F
  • Construction :Aluminium alloy
  • Highlight :Non scratch Anti-static
  • Equipped with :Manual drain
Inlet NPT female thread Outlet 2 couplings Reference 1/2″ FNPT ISI 08 ISI 088203WK 3/4″ FNPT ISI 08 ISI 088204WK
A (inch) B (inch) C (inch) D (inch) E (inch) Reference
2.795 2.244 1.496 2.756 0.256 ISI 088203WK
2.795 2.244 1.496 2.756 0.256 ISI 088204WK

0000015837 ISI 068 WK -

Additional information

Inlet Thread (in)

1/2, 3/4
Body Size

Connection End

Manifold
Coupler Material

Composite
Interchange Type

Product Range

Prevo S1
