Prevost Drill For Tapping Flange

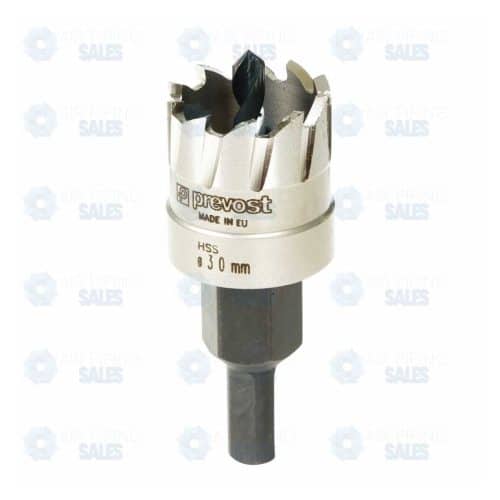

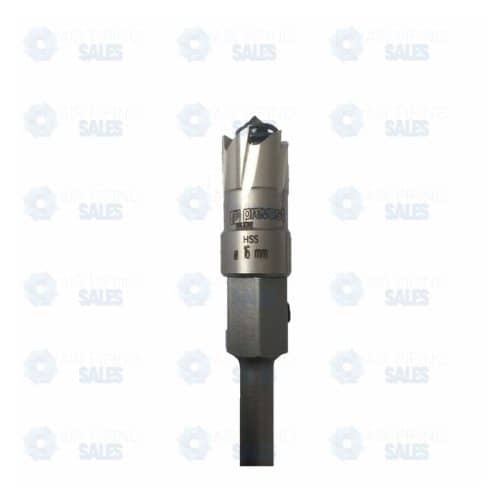

Prevost Drilling Tool for Tapping Flanges

The Prevost Drilling Tool is a specialized hole-cutting instrument engineered specifically for installing Prevost “Quick Drop” Tapping Flanges. Unlike standard twist drills or generic hole saws, this tool is designed to cut a precise, clean hole in the aluminum pipe wall while guaranteeing the safety of the system.

Its critical function is to prevent debris contamination. The drill is constructed to retain the “coupon” (the circular disk of aluminum cut from the pipe), ensuring it is pulled outward rather than falling inside the pipe where it could cause blockages or damage downstream equipment.

Key Features & Benefits

• “Coupon” Retention Safety: The most important feature of this tool is its ability to capture the cut piece of aluminum (the slug) inside the bit or on the pilot. This prevents the metal disk from dropping into the main air stream, which is a major hazard with standard hole saws.
• Precision Sizing: Manufactured to the exact diameter required for Prevost Tapping Flanges (PPS1 BP). This ensures the hole perfectly matches the flange’s O-ring seal, guaranteeing a leak-free fit.
• Pilot Drill Stability: Features a central pilot bit that centers the tool on the pipe surface, preventing “walking” or slipping during the start of the cut, which could scratch the pipe exterior.
• Clean Cutting Action: Sharp, hardened cutting teeth slice through the aluminum smoothly, minimizing the creation of fine metal shavings or swarf entering the pipe.
• Depth Control: When used in conjunction with the Prevost Drilling Jig, the tool cannot drill too deep, preventing accidental damage to the opposite wall of the pipe.

Technical Specifications

• Part Series: PPS1 PE (Drill / Hole Saw)
• Type: Hole Saw with Pilot Bit & Slug Retention Spring/Wire
• Material: Bi-Metal or Hardened High-Speed Steel (HSS)
• Shank: Standard hex or round shank (fits standard power drill chucks)
• Cut Diameter: Matched to specific flange sizes (e.g., 16mm, 22mm holes, etc.)
• Compatibility: Must be used with the corresponding size of Tapping Flange.

Ideal Applications

• Safe Retrofitting: The only approved method for cutting holes in an installed Prevost header to add a new drop.
• Live System Modification: (When used with proper isolation/safety procedures) allows for adding drops without dismantling the entire pipe run.
• Vertical & Overhead Drilling: The retention feature makes it safe to drill into overhead pipes without the slug falling down the vertical section.

Bores through pipe to install PPS1 BT and PPS1 BP tapping flanges
