Prevost Conex Micro Male Elbow

Description

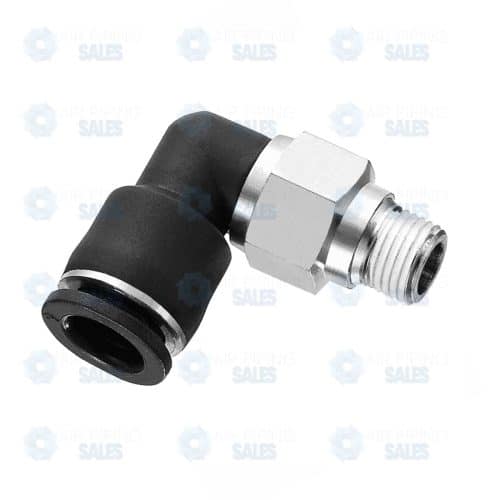

Prevost Conex Micro Male Elbow

Precision Pneumatics in a Miniature Footprint

The Prevost Conex Micro Male Elbow is a high-performance, push-to-connect fitting specifically engineered for space-critical pneumatic applications. As part of the Conex Micro line, this 90-degree swivel fitting provides a reliable interface between threaded ports and small-diameter technical tubing (such as Polyurethane or Nylon).

Designed for industries where miniaturization is key—such as electronics assembly, medical technology, and robotics—this fitting offers a 40% smaller footprint than standard industrial push-ins without compromising on airtight integrity or flow efficiency.

Key Features

• Ultra-Compact Geometry: The reduced height and width allow for high-density installations on manifolds and solenoid valves where center-to-center distances are extremely tight.
• 360° Swivel Capability: The body of the elbow rotates freely around the threaded base, even after it is tightened. This allows for precise tube orientation and prevents stress on the tubing.
• Instantaneous “Grip” Technology: Features a precision stainless steel gripping ring that locks the tube in place with a simple push. Disconnection is just as fast—simply depress the collar and pull.
• Nickel-Plated Brass Construction: The threaded base is made from high-quality nickel-plated brass, providing excellent corrosion resistance and mechanical strength for repeated installation.
• Integrated Thread Sealant: Most sizes feature a pre-applied O-ring or thread coating, ensuring a 100% leak-free seal upon the first installation without the mess of PTFE tape.

Technical Specifications

Feature	Specification
Connection Type	Tube to Male Thread (90° Elbow)
Thread Sizes	M3, M5, M6, or G 1/8″
Tubing Compatibility	PU (Polyurethane), PA (Nylon), PE (Polyethylene)
Max Operating Pressure	145 PSI (10 bar)
Vacuum Rating	Up to -28 inHg
Temperature Range	32°F to 140°F (0°C to +60°C)

The “Micro” Advantage in Automation

In modern automated systems, control cabinets are becoming smaller and more complex. The Prevost Conex Micro Male Elbow addresses this trend by allowing engineers to route air lines through narrow gaps and around obstacles that would block standard fittings. Despite its small size, it maintains a full-flow internal path, ensuring that small actuators and sensors respond with the speed and precision required for high-speed production.

Ideal Applications

• Solenoid Valve Manifolds: Perfect for “banking” multiple small valves in a compact control box.
• Medical & Laboratory Devices: Used in fluidic and pneumatic circuits within diagnostic machinery.
• Robotic Grippers: Routing air to “end-of-arm” tooling where weight and size must be kept to a minimum.
• Semiconductor Manufacturing: Providing clean, compact air connections in high-tech cleanroom environments.

Installation Tip

When working with Micro fittings, always use a precision wrench on the hexagonal base for tightening. Avoid over-torquing the small metric threads (especially M3 and M5) to ensure the longevity of the manifold or component port.
