Prevost Aluminum Female Thread Straight Fitting
Price range: $8.15 through $164.40
- Description
- Additional information
Description
Prevost Aluminum Female Thread Straight Fitting
Seamless Integration for Your Compressed Air Network
The Prevost Aluminum Female Thread Straight Fitting (PPS1 MF) is a critical component of the Prevost Piping System (PPS), designed to transition your high-performance aluminum lines to threaded components.1 Whether you are connecting to a compressor, a filtration unit, a manifold, or a drop-down tool station, this fitting provides a rugged, leak-free connection.2
Built from 100% high-grade aluminum, it maintains the “all-metal” integrity of your network, ensuring maximum durability and corrosion resistance.3
Key Features
- PPS Grip Concept: Features Prevost’s patented internal stainless steel gripping ring.4 This “push-to-connect” technology ensures a secure mechanical bond that can handle high-pressure surges without slipping.5
- Superior Sealing: Equipped with a double-lobed, Teflon® coated NBR seal. The design provides a redundant airtight barrier while the coating ensures the pipe slides in smoothly during installation without damaging the seal.
- Corrosion Resistance: The fitting is treated both internally and externally to resist oxidation, making it ideal for environments where air quality and system longevity are priorities.
- High Flow Efficiency: Engineered with a smooth internal bore to minimize turbulence and pressure drop, maximizing the power delivered to your pneumatic equipment.6
- Versatile Connectivity: Available with standard NPT or G (BSPP) female threads, allowing for easy adaptation to valves, regulators, and other threaded pneumatic accessories.7
Technical Specifications
| Feature | Specification |
| Material | Aluminum Alloy EN AB 46100 |
| Operating Pressure | 0 to 232 PSI (16 bar) |
| Vacuum Rating | -29 inHg (98% vacuum) |
| Temperature Range | -4°F to +176°F (-20°C to +80°C) |
| End Style | PPS Push-fit (Pipe) to FNPT or G (Thread) |
| Compliance | REACH, RoHS, ASME B31.3, TUV |
Installation Tip
When connecting this fitting to a male-threaded component, always use a high-quality thread sealant or PTFE tape on the male threads. Hand-tighten first, then secure with a wrench to ensure a professional, leak-proof joint.
Technical specifications
- Technology :PPS Grip Concept
- Operating pressure :29 to 232 psi
- Vacuum capability :0.59 inHg (vacuum 98%)
- Temperature : 5 deg. F to158 deg. F
- Construction :Pipe and fittings: alu.
- Highlight :Scalable system
- Meets standards :ASME B31.3 REACH

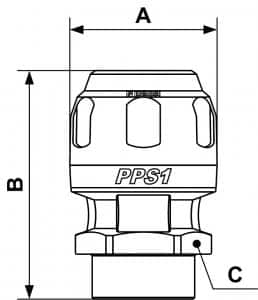

| Reference | For pipe OD (in) | NPT female thread | A inch | B inch | C inch |
|---|---|---|---|---|---|
| PPS1 MF16202 | 1/2″ | 3/8″ FNPT | 1.260 | 2.087 | 1.024 |
| PPS1 MF16203 | 1/2″ | 1/2″ FNPT | 1.260 | 2.087 | 1.024 |
| PPS1 MF20203 | 3/4″ | 1/2″ FNPT | 1.496 | 2.480 | 1.260 |
| PPS1 MF20204 | 3/4″ | 3/4″ FNPT | 1.496 | 2.480 | 1.260 |
| PPS1 MF25203 | 1″ | 1/2″ FNPT | 1.811 | 2.835 | 1.496 |
| PPS1 MF25204 | 1″ | 3/4″ FNPT | 1.811 | 2.835 | 1.496 |
| PPS1 MF25205 | 1″ | 1″ FNPT | 1.811 | 2.835 | 1.496 |
| PPS1 MF32205 | 1 1/4″ | 1″ FNPT | 2.244 | 3.268 | 1.811 |
| PPS1 MF32206 | 1 1/4″ | 1 1/4″ FNPT | 2.244 | 3.268 | 1.811 |
| PPS1 MF40206 | 1 1/2″ | 1 1/4″ FNPT | 2.677 | 3.858 | 2.244 |
| PPS1 MF40207 | 1 1/2″ | 1 1/2″ FNPT | 2.677 | 4.055 | 2.244 |
| PPS1 MF50207 | 2″ | 1 1/2″ FNPT | 3.307 | 4.331 | 2.835 |
| PPS1 MF50208 | 2″ | 2″ FNPT | 3.307 | 4.528 | 2.835 |
| PPS1 MF63208 | 2 1/2″ | 2″ FNPT | 3.937 | 5.394 | 3.543 |
| PPS1 MF63209 | 2 1/2″ | 2 1/2″ FNPT | 3.937 | 5.591 | 3.543 |
| PPS1 MF80209 | 3″ | 2 1/2″ FNPT | 4.764 | 6.457 | 4.331 |
| PPS1 MF802010 | 3″ | 3″ FNPT | 4.764 | 6.457 | 4.331 |
Additional information
| Product Range | CC Concept, PPS Aluminum |
|---|
