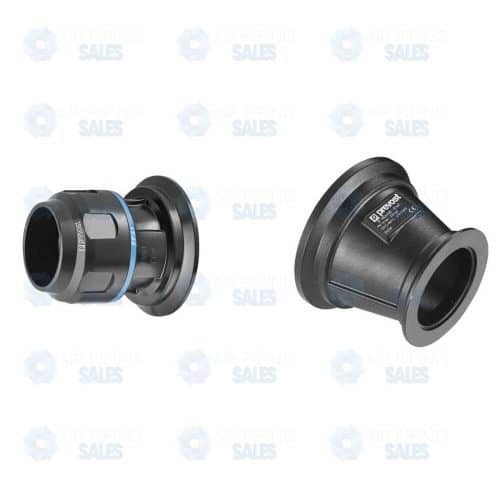

Prevost Aluminum Pipe Reducing Fitting

Description

Prevost Aluminum Pipe Reducing Fitting

Technical specifications

• Technology :PPS Grip Concept
• Operating pressure :0 to 232 psi
• Vacuum capability :0.59 inHg (vacuum 98%)
• Temperature :-4 deg. F to 176 deg. F
• Construction :Pipe and fittings: aluminum
• Highlight :Scalable system
• Meets standards :ASME B31.3 REACH

For pipe OD (in)	For pipe OD (in)	Reference
1″	3/4″	PPS1 MR2520
1 1/4″	1″	PPS1 MR3225
1 1/2″	1 1/4″	PPS1 MR4032
2″	1 1/2″	PPS1 MR5040
2 1/2″	2″	PPS1 MR6350
3″	2 1/2″	PPS1 MR8063

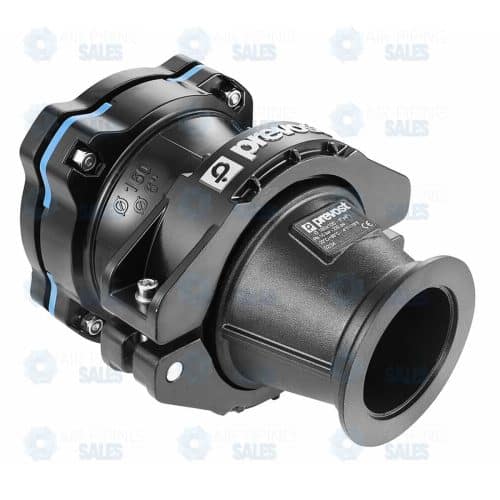

6″	4″	PPS1 MRCC160100

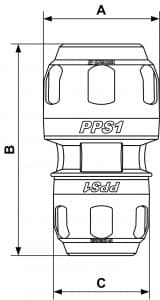

A (inch)	B (inch)	C (inch)	Reference
1.811	3.346	1.496	PPS1 MR2520
2.244	4.016	1.811	PPS1 MR3225
2.677	4.803	2.244	PPS1 MR4032
3.307	5.591	2.677	PPS1 MR5040
3.937	6.693	3.307	PPS1 MR6350
4.764	7.638	3.937	PPS1 MR8063

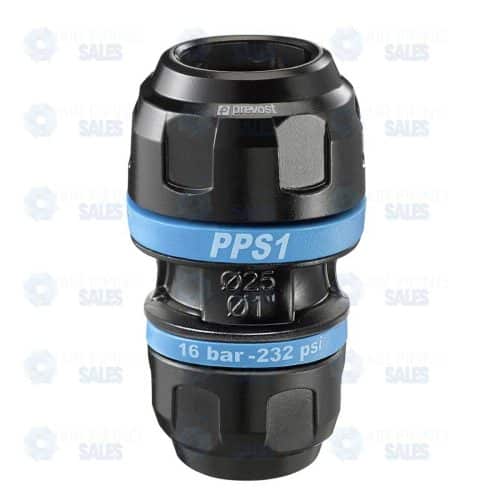

Prevost PPS Aluminum Reducing Union

The Prevost PPS Aluminum Reducing Union is a straight inline connector designed to seamlessly transition a compressed air line from a larger diameter to a smaller one. Whether you are stepping down pipe size to maintain velocity at the end of a long run or connecting two different phases of a system expansion, this fitting ensures a smooth and secure transition.

Eliminating the need for threaded bushings or multiple adapters, this unit provides a direct tube-to-tube connection that preserves laminar flow while significantly reducing installation time and leak potential.

Key Features & Benefits

• Seamless Diameter Transition: Connects two different pipe sizes (e.g., 50mm to 32mm) directly inline. This streamlines the piping layout by removing the need for bulky threaded reducers.
• Optimized Flow Dynamics: The internal bore is tapered to smooth the passage of air from the wider to the narrower section, preventing the turbulence and pressure drops often caused by abrupt “step-down” fittings.
• System Flexibility: Ideal for extending existing networks where a new section requires a different flow rate, or for adapting main headers into localized sub-lines.
• PPS Grip & Seal Security: Both ends feature the robust stainless steel grip ring and lubricated NBR seal. This ensures that, despite the size difference, the connection remains rigid, leak-proof, and vibration-resistant.
• Corrosion-Resistant Body: The all-aluminum construction prevents corrosion and ensures the fitting is lightweight enough to not require extra hanging support at the reduction point.

Technical Specifications

• Part Series: PPS1 R (Reducing Union)
• Configuration: Straight Reduction (Tube-to-Tube)
• Material: Aluminum Alloy (Body) / Stainless Steel (Grip Ring)
• Operating Pressure: Up to 232 PSI (16 bar)
• Operating Temperature: -4°F to +176°F (-20°C to +80°C)
• Vacuum Capability: Up to 29″ Hg (-0.98 bar)
• Fluid Compatibility: Compressed Air, Vacuum, Nitrogen, Inert Gases

Ideal Applications

• End-of-Run Pressure Maintenance: Reducing pipe diameter towards the end of long headers to maintain air velocity and system pressure.
• Machine Connection Adaptation: Transitioning from a main distribution line to the specific inlet size of heavy machinery.
• Network Retrofits: Connecting a new, smaller extension to an existing, larger piping network during facility expansions.
