Prevost Thread Swivel Coupler ISO 3/8″ Body

Description

THREAD SWIVEL COUPLER ISO 3/8″ BODY
Technical specifications

• Technology :“One push” safety system (avoids hose whip)
• Operating pressure :29 to 174 psi
• Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
• ID Passage :3/8″ body size
• Temperature : 5 deg. F to 158 deg. F
• Construction :Composite body
• Highlight :Non scratch
  Anti-static

Tapped swivel coupler
360 deg. rotation on 2 axis

NPT female thread Reference 3/8″ FNPT CSI 081202SW

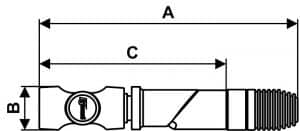

A (inch)	B (inch)	C (inch)	Reference
6.654	1.26	4.843	CSI 081202SW
