Prevost Prolac Male ARO 210
Price range: $30.52 through $48.33
- Description
- Additional information
- Profile
Description
Prevost Prolac Male ARO 210
High-Performance Safety Coupling for Rigid Pipe and Tool Mounting
The Prevost Prolac Male ARO 210 is a premier safety-venting coupling designed for direct installation into female-threaded ports. Featuring a male-threaded inlet and a socket compatible with the ARO 210 (1/4 inch) interchange, this coupling is the industrial standard for safety, durability, and ease of use.
The Prolac series is engineered to eliminate the dangers of “hose whip” by venting downstream air pressure before releasing the tool, making it an essential upgrade for any safety-conscious workspace.
Key Features
- Two-Stage Safety Disconnection: The Prolac mechanism ensures a safe disconnection by venting the air pressure from the tool or hose before the plug is fully released. This prevents the plug from becoming a projectile and stops the hose from whipping violently.
- One-Handed “Push” Connection: Designed for speed and ergonomics, this coupling allows the operator to connect tools with a simple push. There is no need to retract a sleeve, even when the system is under full pressure.

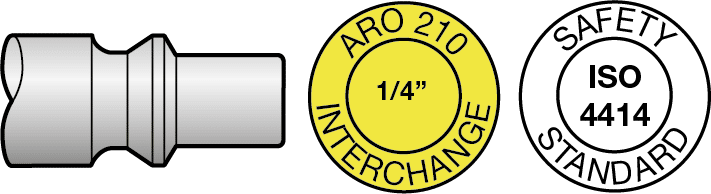

- ARO 210 Profile Compatibility: Designed to work seamlessly with the standard ARO 210 (210-style) plug profile. This allows for a universal fit across your existing fleet of pneumatic tools and accessories.
- Direct Port Mounting: The male-threaded design allows you to screw the coupling directly into manifold blocks, valve outlets, or hard-piped drops without the need for additional nipples or adapters.
- Rugged Industrial Construction: Built with high-strength technical polymers and anti-corrosion treated steel. The body is designed to resist impacts, crushing, and exposure to oils and chemicals found in professional garages and factories.
Technical Specifications
| Feature | Specification |
| Profile | ARO 210 (1/4 inch interchange) |
| Connection Type | Male Threaded (NPT or BSPP) |
| Safety Compliance | ISO 4414 (Anti-hose whip) |
| Max Operating Pressure | 174 PSI (12 bar) |
| Temperature Range | -15 C to +70 C (5 F to 158 F) |
| Seals | High-performance Nitrile (NBR) |
Common Applications
- Hard-Pipe Drops: Installing directly onto the end of a rigid air line drop in a workshop to provide a safe connection point for hoses.
- Manifold Outlets: Building custom air distribution headers where multiple tools need to be plugged in safely.
- Compressor Outlets: Replacing standard couplers on portable or stationary compressors to improve operator safety.
- Automotive Repair: Ideal for high-traffic shops where air tools are changed frequently and safety compliance is a priority.
Why Choose Prolac Male Threaded Couplings?
By integrating a male thread directly onto the safety coupling, you reduce the number of potential leak points in your system. The Prolac series is known for its hermetically sealed internal valve, which prevents “air hiss” and ensures that your compressor only runs when you are actually using your tools, saving energy and reducing wear on your equipment.
- Technology :Push button
- Operating pressure :0 to 174 psi
- Flow rate at 100 psi :14 cfm (P = 10 psi) 1/4″ Body
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Additional information
| Size | |
|---|---|
| Interchange Type | |
| Product Range | Prolac |
| Quantity | Box, Single |
