Prevost PLA Series – Industrial Mounting Decks & Accessory System

Description

Prevost PLA Series – Industrial Mounting Decks & Accessory System

Headline: The Ultimate Modular Solution for Mounting Hose Reels, Filtration, and Air Drops.

Simplify your compressed air infrastructure with the Prevost PLA Series. Designed for industrial facilities, this modular mounting deck system allows you to securely install open/closed hose reels, air treatment units (FRLs), and PrevoS1 couplers onto walls or structural beams without the need for welding or invasive drilling.

Whether you are outfitting a new workshop or retrofitting an existing production line, the PLA Series ensures your equipment is mounted safely, ergonomically, and in full compliance with building mechanical standards.

Key Features & Benefits

• Universal Beam Compatibility (No Welding Required):

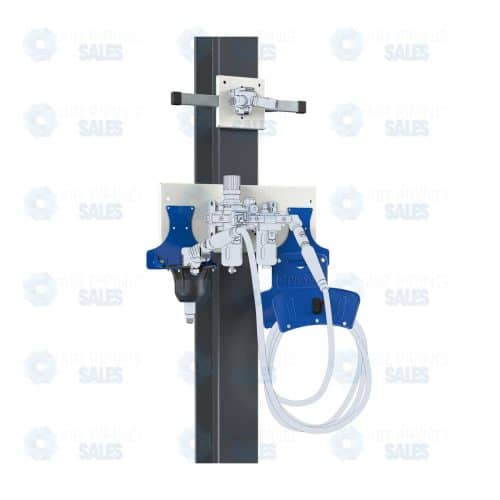

The standout feature of the PLA system is its ability to mount directly to HEA/IPN structural beams (H-beams/I-beams). Using the specialized clamping kit, you can secure heavy equipment to building columns without drilling holes or welding, preserving the structural integrity of your facility.

• Modular “Deck” Design:

The system is built around pre-drilled metal mounting decks (Plates) available in multiple sizes. These decks feature universal hole patterns compatible with the entire Prevost range, allowing you to mix and match equipment (e.g., a hose reel + an FRL unit + a tool holder) on a single mount.

• Pre-Assembly Capable:

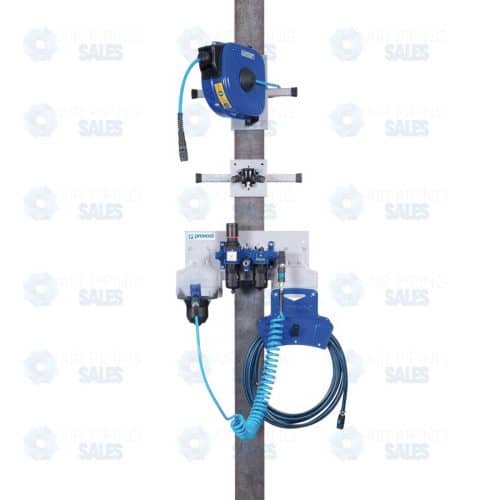

Save time working at heights. The PLA system allows maintenance teams to pre-assemble hose reels and air lines onto the deck at ground level. Once assembled, the entire unit can be quickly hoisted and secured to the wall or beam, significantly reducing installation time and risk.

• Heavy-Duty Load Capacity:

Engineered for rigorous industrial use, the larger decks (PLA 2000) can support loads up to 100 kg (220 lbs), making them ideal for large open drum reels and heavy filtration manifolds.

Available Configurations

1. Mounting Decks (The Core System)

• PLA 225 (Compact): Designed for lighter setups. Perfect for mounting a single PrevoS1 wall bracket, small air treatment units, or organizing accessories. (Max Load: 40kg)
• PLA 450 (Standard): The go-to solution for Closed Hose Reels (DMF, DRF, DSF series). Includes side rails for additional rigidity. (Max Load: 40kg)

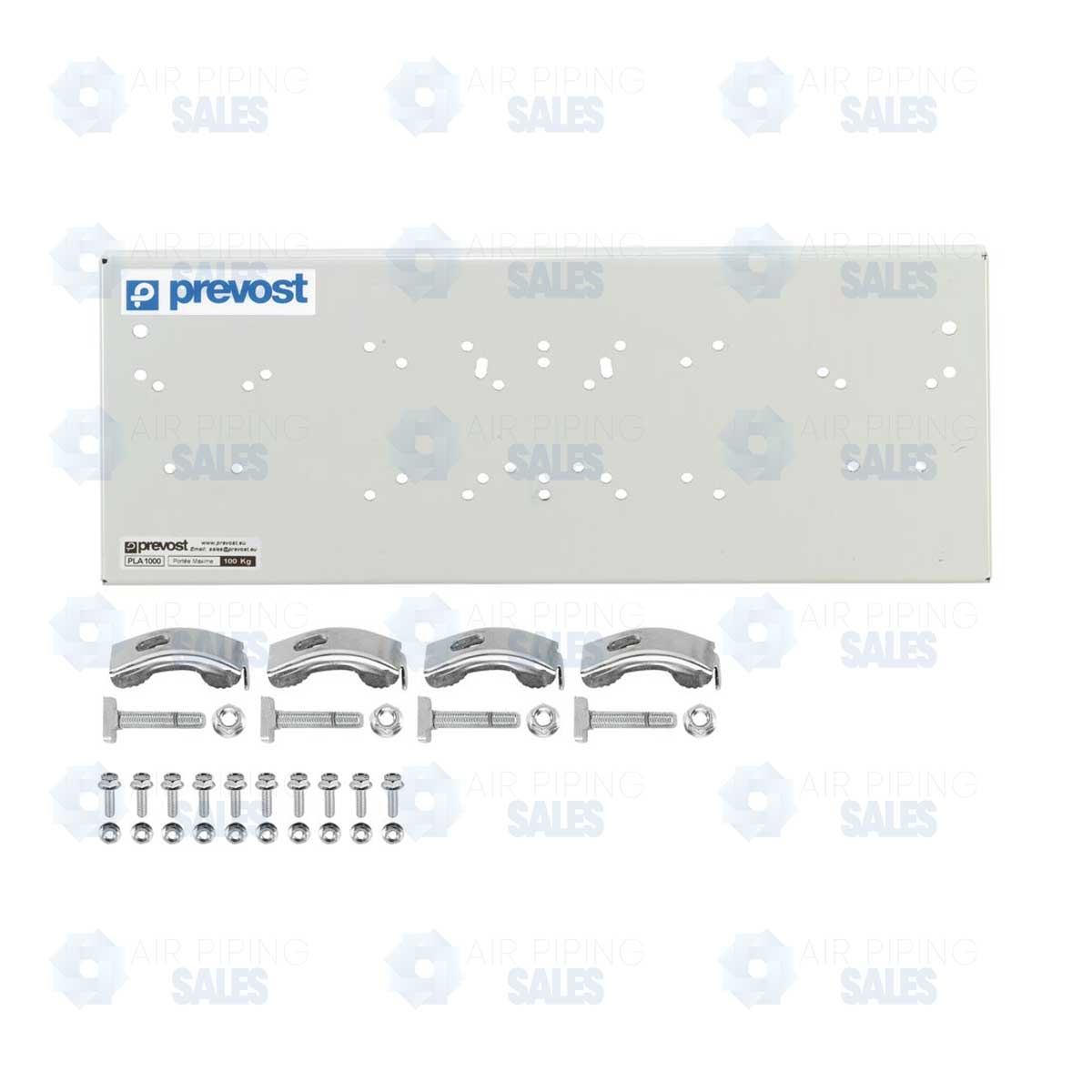

• PLA 1000 (Multi-Purpose): A wider deck suitable for combined setups, such as a reel coupled with a filtration unit. (Max Load: 100kg)

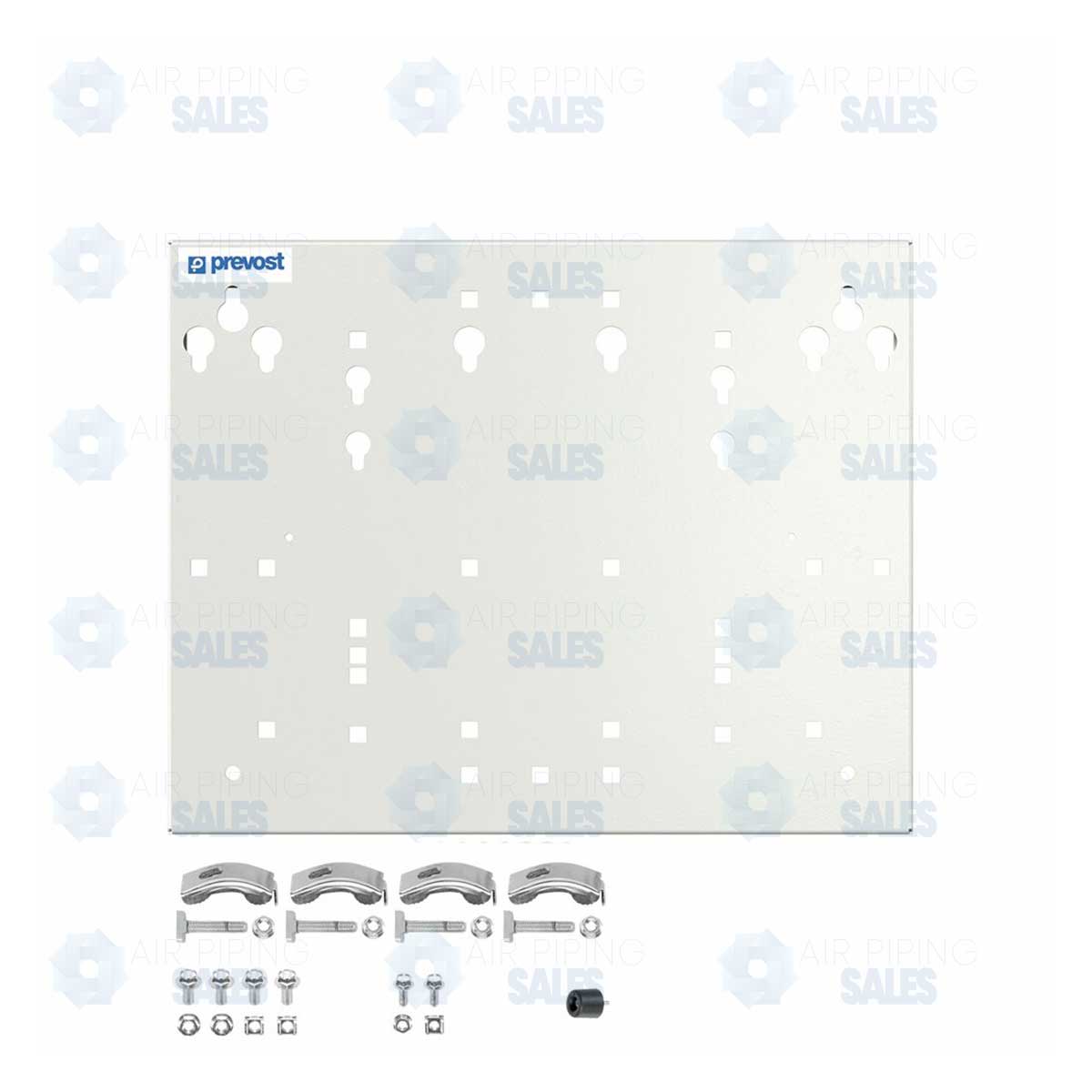

• PLA 2000 (Heavy Duty): The largest deck, capable of holding large Open Hose Reels (DGO, DMO series) or dual-reel setups. (Max Load: 100kg)

2. “PLA FIX” Accessories

Maximize workstation efficiency by attaching these accessories directly to your PLA Mounting Deck:

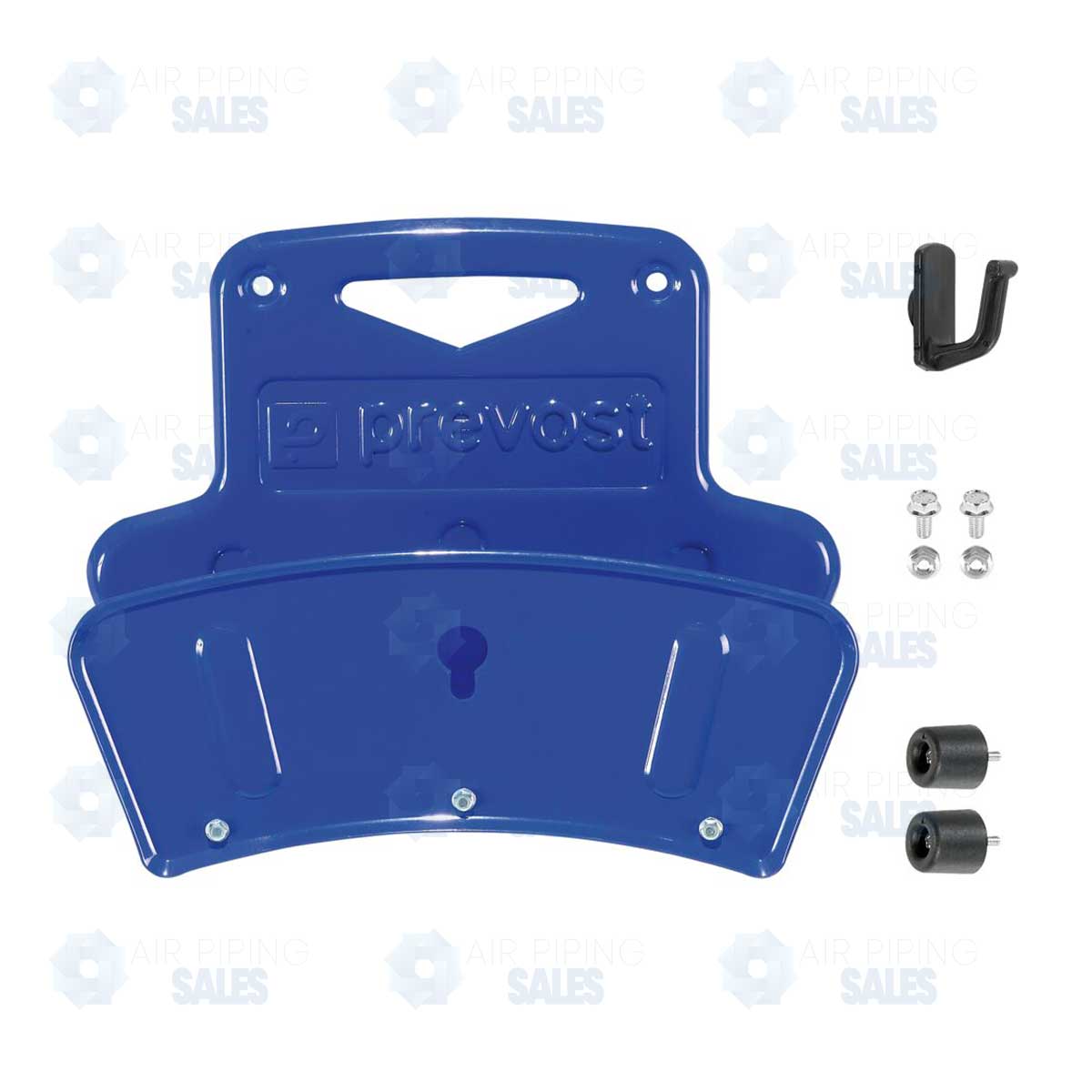

• PLA HR (Hose Holder): A robust saddle to keep loose hoses organized and off the floor.

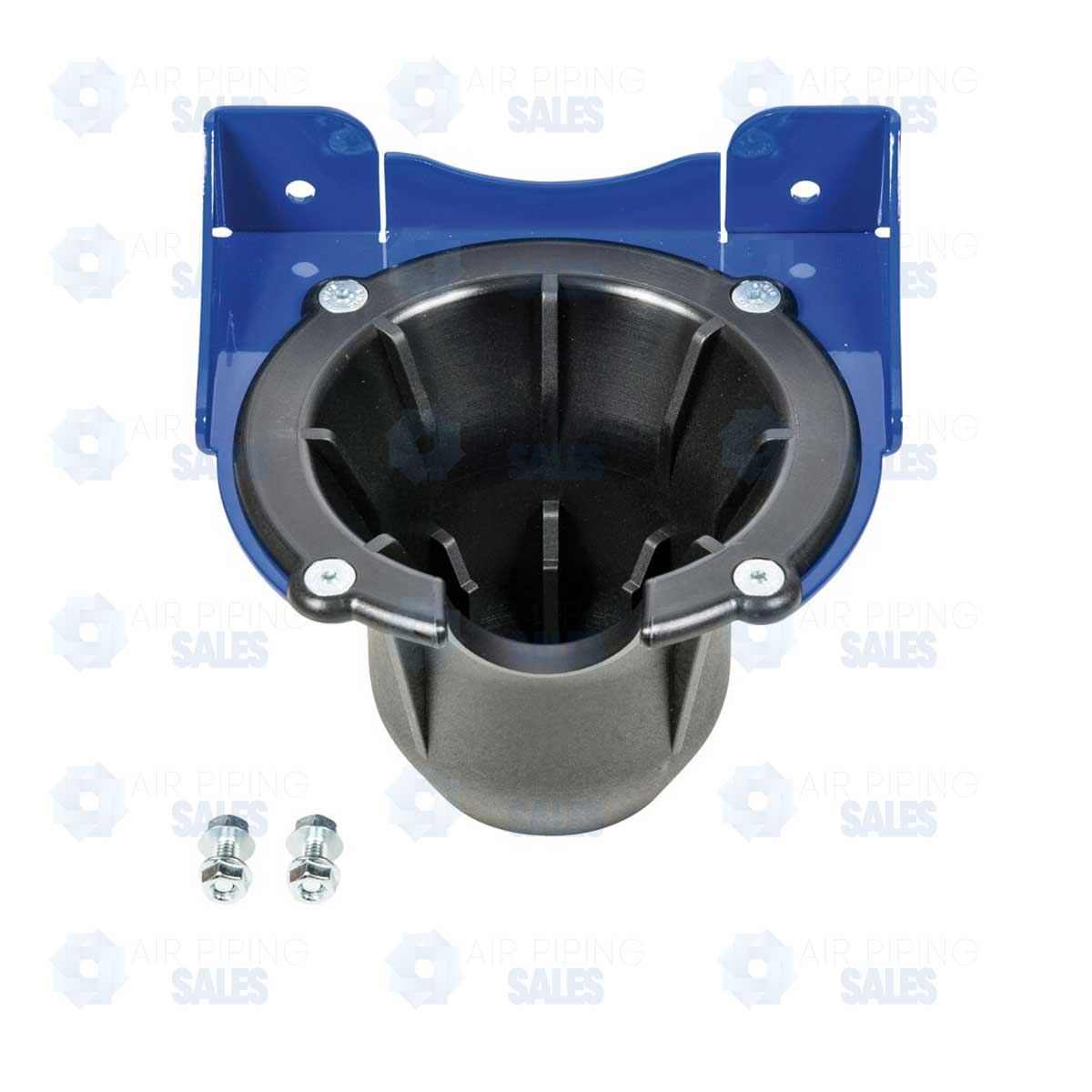

• PLA TH (Tool Holder): A specialized holster for pneumatic tools (impact wrenches, drills, blow guns).
• PLA BB (Bolt/Part Holder): A magnetic tray attachment for keeping fasteners within arm’s reach.

Technical Specifications

Feature	Specification
Material	Heavy-Gauge Powder Coated Steel / Aluminum components
Beam Compatibility	Fits HEA/IPN Beams: Thickness 5-25mm, Width 100-340mm
Mounting Method	Wall screw mount OR Beam Clamp System (Clamps sold separately)
Compatible Prevost Lines	PrevoS1 Couplers, ALTO Filtration, Hose Reels (DMO, DGO, DRF, DMF)
Safety Factor	Designed to withstand vibration and dynamic loads from retracting reels



Installation Note

Refer to manual PLA-NTI13-BD for torque specifications.

The PLA system utilizes a “Rail and Clamp” method for beam installation. Ensure the locking clamps are tightened to the specified torque settings to prevent slippage during hose reel operation. For wall mounting, ensure anchors are rated for the total weight of the deck plus the fully extended hose leverage.
