Price range: $185.96 through $367.93

In stock

Price range: $185.96 through $367.93

SKU: ATU B2585S1 Category:

Description

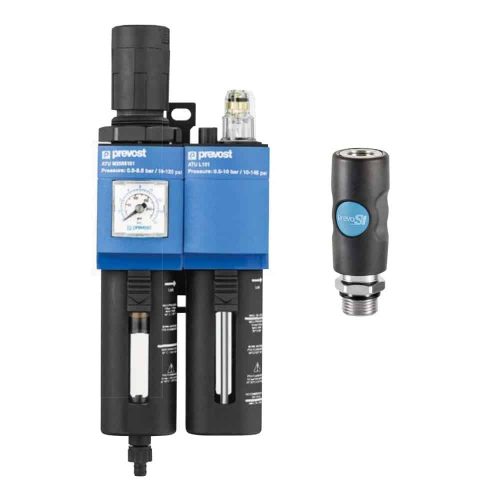

Prevost Filter-Regulator-Lubricator 2 Units With Prevos1 Quick Safety Coupling

Prevost Filtration compact solution

[icon name=”plus” prefix=”fas”] The regulator-filter guarantees clean air and constant outlet pressure
[icon name=”plus” prefix=”fas”] The lubricator extends the service life of pneumatic tools
[icon name=”plus” prefix=”fas”] Suited for supplying pneumatic tools
[icon name=”plus” prefix=”fas”] The oil tank can be filled during use

[icon name=”plus” prefix=”fas”]LOCKABLE REGULATOR
[icon name=”plus” prefix=”fas”]INTEGRATED PRESSURE GAUGE
[icon name=”plus” prefix=”fas”]BARB-TYPE OUTLET

Thread 1/8″ FNPT 1/4″ FNPT 3/8″ FNPT 1/2″ FNPT
Flowrate @ inlet pressure 400 l/min 700 l/min 2000 l/min 3000 l/min
Filtration 1 ¢‚¬ 5 and 25* ‚ micron
Minimum service flowrate 40 l/min 75 l/min
Inlet pressure 0.8 to 10 bar
Outlet pressure 0.5 to 10 bar
Service temperature 5 deg C to 50 deg C
Recipient (Filter) capacity 17 ml 50 ml
Recipient (Lubricator) capacity 30 ml 65 ml
Weight 1.21 lbs 3.52 lbs
Module T1 L1 L2 L3 L4 L5 B1 B2 B3
ATU B2585200 1/8″ FNPT 215 mm 93 mm 45 mm 9.5 mm 5.5 mm 80 mm 80 mm 40 mm
ATU B2585201 1/4″ FNPT 215 mm 93 mm 45 mm 9.5 mm 5.5 mm 80 mm 80 mm 40 mm
ATU B2585202 3/8″ FNPT 302 mm 142 mm 52.5 mm 10 mm 6.5 mm 124 mm 97 mm 62 mm
ATU B2585203 1/2″ FNPT 302 mm 142 mm 52.5 mm 10 mm 6.5 mm 124 mm 97 mm 62 mm
Dimensions (mm)
ISI 06 76.3-82.3 30 20-26
USI 06 76.3-82.3 30 20-26
ESI 07 76.3-82.3 30 20-26
ASI 06 76.3-82.3 30 20-26

ATU B2585SI Diagram -

Additional information

Coupler

ISI 06, USI 06, ESI 07, ASI 06
FNTP Thread (in)

1/8 in FNPT, 1/4 in FNPT, 3/8 in FNPT, 1/2 in FNPT
