Prevost Female Thread Wall Manifold – ARO 210 Interchange

Prevost Female Thread Double Wall Manifold High Flow Interchange Prevost Female Thread Double Wall Manifold High Flow Interchange
Prevost Female Thread Double Wall Manifold Iso 6150 C Interchange Prevost Female Thread Double Wall Manifold ISO 6150 C Interchange
Prevost Female Thread Wall Manifold - ARO 210 Interchange

Prevost Female Thread Wall Manifold – ARO 210 Interchange

Price range: $63.23 through $112.97

In stock

Price range: $63.23 through $112.97

SKU: N/A Categories: ,

Description

Prevost Female Thread Wall Manifold (ARO 210 Interchange)

The Professional Anchor for ARO 210 Systems.

Upgrade your workspace with the Prevost Wall Manifold, featuring the Prevo S1 Safety Coupler with the ARO 210 (Yellow Button) profile. This integrated unit provides a rigid, permanent air outlet directly from your wall or drop leg, replacing the clumsy setup of separate brackets and hanging couplers.

Designed for facilities standardized on the ARO 210 interchange, this manifold ensures safety, organization, and leak-free performance in one compact package.

Key Features & Benefits

  • ARO 210 Compatibility: Color-coded with the signature Yellow Button, this manifold is instantly identifiable and compatible with all standard ARO 210 (Series 210) plugs.
  • Patented Safety Mechanism: The “One-Push” system eliminates the risk of hose whip. Pressing the button vents trapped pressure before the plug is released, ensuring a quiet, safe disconnection every time.
  • Integrated Wall Mount: The unit features a sturdy 45-degree mounting flange. This ergonomic angle points the hose downward and away from the wall, reducing kink stress and keeping the floor clear of loops.
  • Moisture Protection: The angled design also helps prevent moisture from sitting inside the coupler mechanism, extending the life of the seal.
  • Leak-Free Durability: Built with a composite body and precision seals, it prevents the constant air leaks often found in traditional brass wall couplers.

Technical Specifications

  • Interchange Profile: ARO 210 (Series 210)
  • Button Color: Yellow
  • Inlet Connection: Female NPT Thread (Available in 1/2″ or 3/8″ usually)
  • Configuration: 2-Way (Double) or 1-Way (Single) options available
  • Pressure Rating: Up to 174 PSI (12 Bar)
  • Safety Standard: ISO 4414

Ideal Applications

  • Service Bays: Providing a fixed, reliable connection point for mechanics.
  • Assembly Benches: keeping air lines organized and off the work surface.
  • Safety Compliance: replacing standard couplers in areas where hose whip is a safety violation.

Additional information

Inlet Thread (in)

1/2, 3/4
Body Size

Connection End

Manifold
Coupler Material

Composite
Interchange Type

Product Range

Prevo S1
Couplers

Single ASI 06 – 1/4, Double ASI 06 -1/4

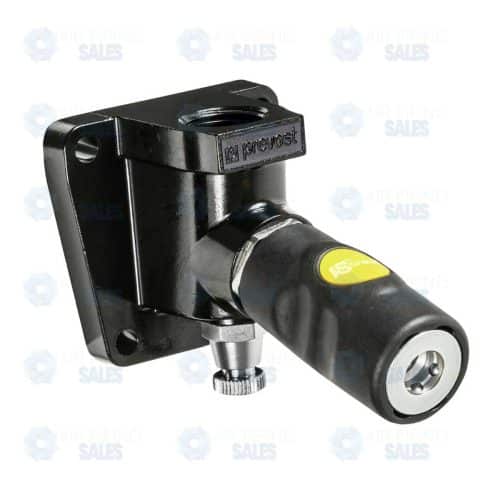

FEMALE THREAD SINGLE WALL MANIFOLD – 1 COUPLER AND DRAIN – 1/4″ ARO 210 INTERCHANGE

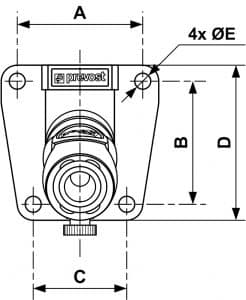

A (inch) B (inch) C (inch) D (inch) E (inch) Reference
2.008 1.969 1.496 2.48 0.256 ASI 061203WK

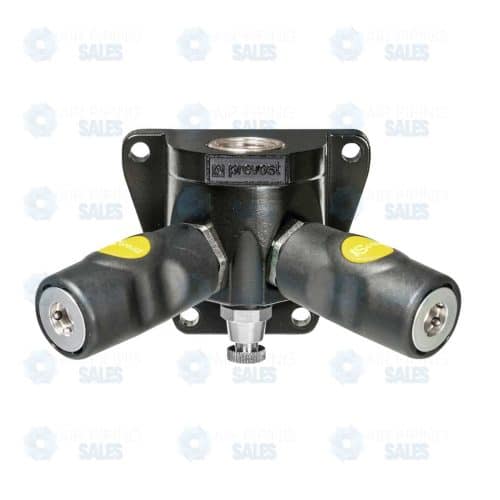

FEMALE THREAD DOUBLE WALL MANIFOLD – 2 COUPLERS AND DRAIN – 1/4″ ARO 210 INTERCHANGE

A (inch) B (inch) C (inch) D (inch) E (inch) Reference
2.795 2.244 1.496 2.756 0.256 ASI 068203WK
2.795 2.244 1.496 2.756 0.256 ASI 068204WK
