Prevost Bulkhead Coupler

Description

Prevost Bulkhead Coupler

The Professional Solution for Seamless Through-Panel Air Connections

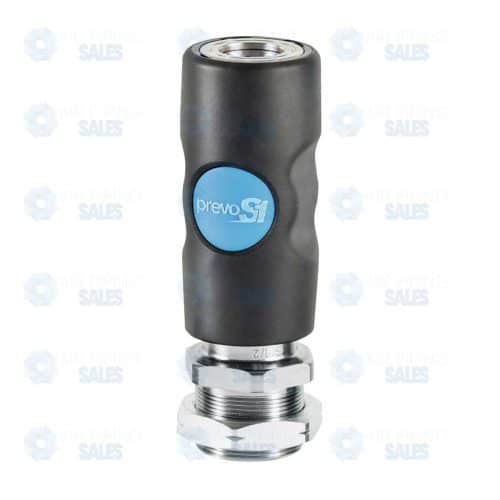

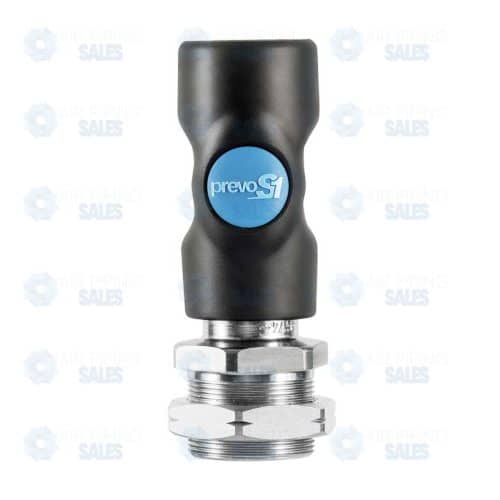

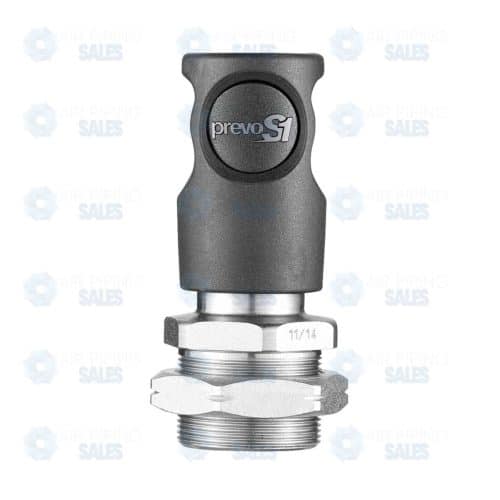

The Prevost Bulkhead Coupler (PrevoS1 Series) is a specialized safety-venting coupling designed for permanent installation through panels, machine walls, or mounting brackets. This coupler utilizes the ISO 6150 C (Series C) profile and provides a secure, leak-proof transition from internal piping to external tool connections.

Featuring Prevost’s signature one-push safety technology, this bulkhead fitting ensures that air lines can be connected and disconnected from a control panel or workstation safely, without the risk of dangerous hose whip or accidental disconnection.

Key Features

• Panel-Mount Design: Specifically engineered with an extended threaded body and heavy-duty locknut, allowing you to mount the coupler through metal plates, enclosures, or “point-of-use” stations for a clean, professional finish.
• Patented One-Push Safety Venting: A single press of the button exhausts the downstream air before releasing the plug. This ensures compliance with safety standards (ISO 4414) by preventing the “projectile” effect of pressurized hoses.
• High-Strength Composite Body: The outer shell is made of a non-marring, impact-resistant composite that is anti-static and ATEX certified. It is designed to withstand the vibrations of machine-mounted applications without loosening or cracking.
• ISO 6150 C Profile: Designed for the “European” C-Profile interchange, offering a robust mechanical connection and high-flow geometry that supports heavy-duty pneumatic operations.
• Streamlined Airflow: Despite the bulkhead configuration, the internal valve is optimized for high CFM, ensuring that tools connected to the panel receive maximum pressure and volume for peak performance.
• Leak-Free Reliability: The precision internal seals are designed to remain 100% airtight, protecting the integrity of your air system and reducing energy waste from the compressor.

Technical Specifications

Ideal Applications

• Control Panels & Cabinets: Provide safe, external air access for pneumatic control systems without opening the enclosure.
• Service Trucks & Vans: Mount through vehicle body panels to provide a secure exterior connection point for air tools.
• Custom Workstations: Integrated into assembly benches to provide a dedicated, flush-mounted air source that saves space and reduces clutter.
• Automated Machinery: Used as a terminal connection point on the exterior of CNC machines or robotic cells.

Professional Integration

The Prevost Bulkhead Coupler is the gold standard for engineers and shop managers who prioritize a “factory-clean” look alongside operator safety. By moving the connection point to a fixed panel, you reduce wear on internal hoses and provide a stable, easy-to-access port for everyday use. When paired with Prevost Hardened Steel Plugs, this coupler offers a 3-year leak-free guarantee.
