Prevost Asian Profile Couplers & Plugs

Description

Prevost Asian Profile Couplers & Plugs

High-Performance Safety for the Asian Interchange (7.5 mm)

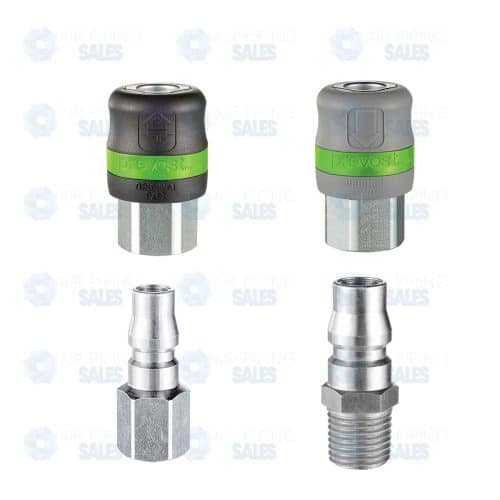

The Prevost Asian Profile (also known as the “High-Flow Asian” or ASI profile) is engineered specifically for compatibility with the common Japanese and Asian pneumatic standards. While many standard couplers in this class are prone to leaking and “hose whip” hazards, Prevost brings its world-class S1 Safety Technology to the Asian interchange.

Identified by its signature black button, this series provides a seamless, one-push connection that is safer, more ergonomic, and significantly more durable than traditional chrome-plated alternatives.

The Prevo S1 Safety Advantage

Unlike standard Asian-style couplers that require you to pull back a sleeve while fighting line pressure, the Prevo S1 simplifies the process:

1. One Push: Press the black button once to instantly vent the downstream air.
2. Zero Pressure: The plug is released only after the air has been safely bled, eliminating the risk of dangerous hose whip.
3. Automatic: The tool is disconnected in one fluid motion, increasing productivity and operator safety.

Key Features

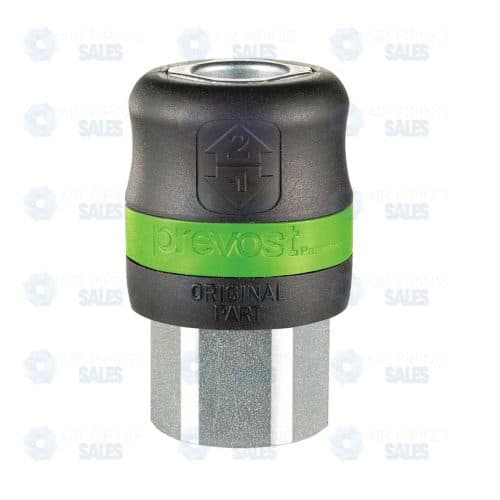

• Black Button Identification: Color-coded for the Asian 7.5 mm interchange profile, ensuring you never grab the wrong coupler for your “High-Flow” Asian-style plugs.
• Leak-Free Performance: Precision-machined internal seals eliminate the “hissing” air leaks common in budget couplers, reducing compressor run-time and energy costs.
• Non-Marring & Anti-Static: Constructed from a high-tech, impact-resistant composite body.³ It won’t scratch finished workpieces or spark in sensitive environments.
• High Flow, Low Pressure Drop: The internal aerodynamic design maximizes air delivery, ensuring that high-torque Asian-manufactured impact wrenches and grinders perform at their full rated capacity.

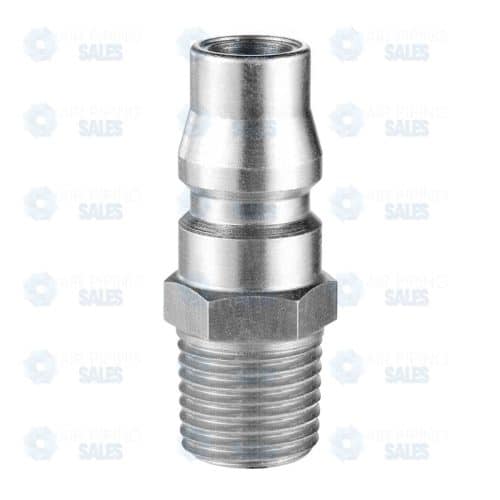

• Hardened Steel Plugs: Prevost ASI plugs are heat-treated to resist “peening” and wear, ensuring a perfect seal and easy insertion even after years of heavy industrial use.

Technical Specifications

Feature	Specification
Interchange Profile	Asian (7.5 mm)
Button Color	Black
Max Pressure	174 PSI (12 bar)
Safety Standard	ISO 4414 (Venting Safety)
Body Material	Anti-static Composite
Temperature Range	5°F to 158°F (-15°C to +70°C)



Ideal Applications

• Automotive Service: Perfect for technicians using specialized Japanese pneumatic tools.
• Heavy Manufacturing: Ideal for assembly lines that standardized on the Asian-profile high-flow interchange.
• Precision Engineering: The non-marring body is critical for high-end electronic or mechanical assembly.
• Export Environments: The go-to solution for facilities using machinery and tool sets imported from the Asian market.
