Prevost Aluminum Union For Pipe
Price range: $12.07 through $348.77
- Description
- PPS1 Fittings
- Additional information
Description
Prevost Aluminum Union For Pipe
Product Overview: Prevost PPS Aluminum Pipe Union
The Prevost PPS Aluminum Union is a high-performance straight connector designed to join sections of Prevost blue aluminum pipe seamlessly. As a critical component of the Prevost Piping System, it utilizes proprietary connection technology to ensure a secure, leak-free seal without the need for welding, glue, crimping, or threading.
Featuring a robust, 100% aluminum body, this union maintains the lightweight and corrosion-resistant integrity of the entire air network while ensuring optimal flow and electrical continuity.
Key Features & Benefits
- PPS Grip Concept: The fitting employs a stainless steel grip ring with teeth that bite securely into the aluminum pipe. This ensures the connection withstands vibration and high pressure without separating.
- 100% Leak-Free Seal: Equipped with a specially designed, lubricated seal (NBR) that is compatible with compressor oils, preventing air leaks and reducing energy waste.
- Full-Flow Design: The internal geometry is engineered to prevent restrictions, maintaining laminar airflow and minimizing pressure drops across the joint.
- Fast & Safe Installation: Simply cut, chamfer, and push the pipe into the fitting. The installation is instantaneous for smaller diameters and requires simple tightening for larger ones, drastically reducing labor costs.
- Modular & Removable: Unlike permanent crimp or weld fittings, this union can be dismantled and reused, making future system modifications or expansions easy.
Technical Specifications
- Body & Nut Material: Aluminum (Alloy EN AB 46100)
- Grip Ring: Stainless Steel (AISI 304)
- Operating Pressure: Up to 232 PSI (16 bar)
- Vacuum Capability: Up to 29″ Hg (Vacuum -980 mbar)
- Operating Temperature: -4°F to +176°F (-20°C to +80°C)
- Fluid Compatibility: Compressed Air, Vacuum, Inert Gases (Nitrogen, Argon)
- Fire Resistance: All aluminum components are non-flammable and adhere to safety standards.
Typical Applications
- Extending long runs of straight pipe in main headers.
- Repairing damaged sections of an existing air line.
- Connecting pipe segments in areas where welding is prohibited (e.g., clean rooms or hazardous zones).
Prevost Piping System
The 100% aluminum fittings
PREVOST designs and manufactures its new PPS1 100% aluminum fittings to ensure that they are the most compact and effective on the market.
Pipes are held in the fitting using a new system: the PPS Grip Concept. The PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminum.
Leak tight is achieved via a new contoured and lubricated seal, with optimized design and properties. The seal remains perfectly leak tight even under the harshest conditions.

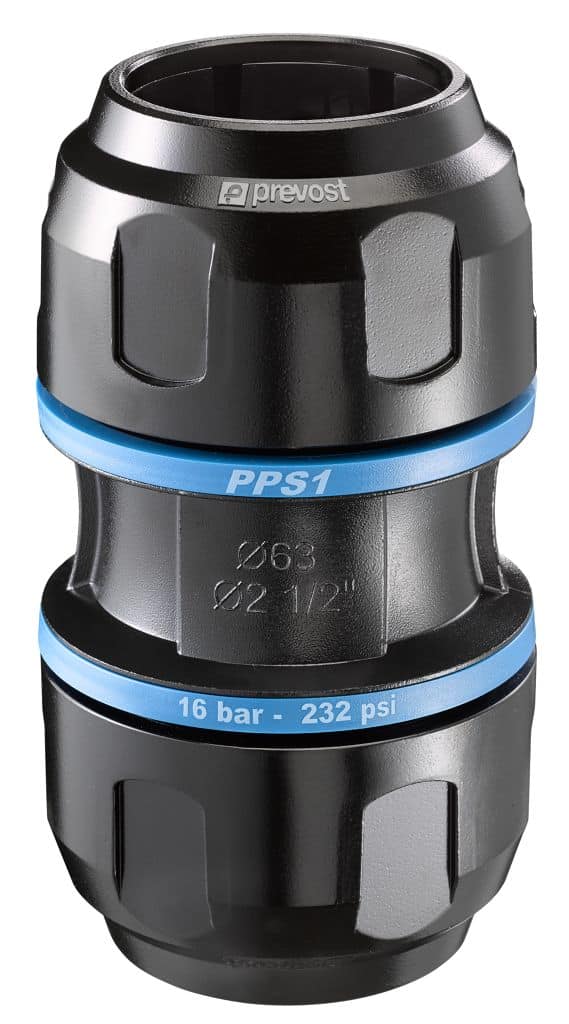

Identification
The Prevost logo is engraved on each fitting.
Diameter
Pipe external diameter in mm and inches
Pressure
Maximum service pressure (bar/psi)
Marker & Traceability
Indicate that the pipe is correctly positioned in the fitting & Date of fabrication
LEAKTIGHT
The seal has been specifically designed for this application. It
comprises two Teflon-coated lobes to optimize leaktight.

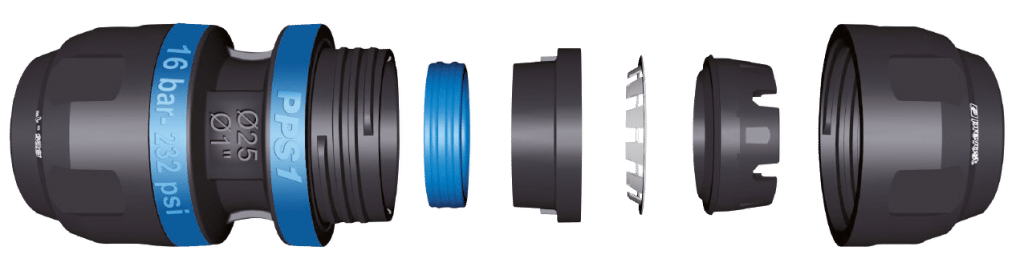

INTERNAL PARTS
Internal parts cannot be detached from the body after
assembly

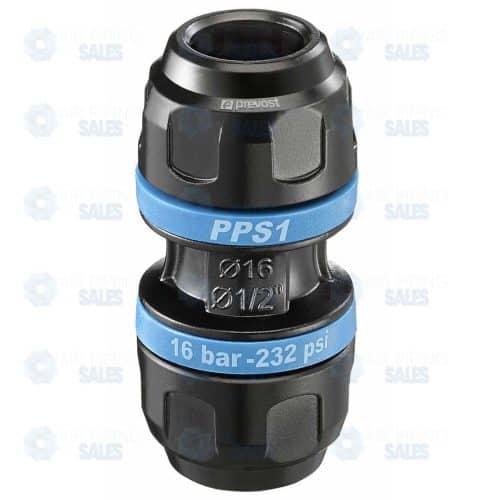

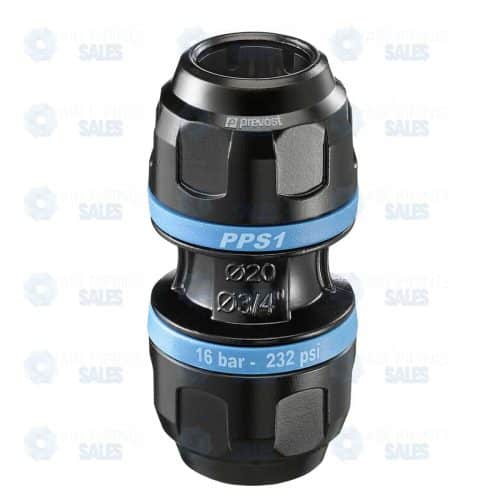

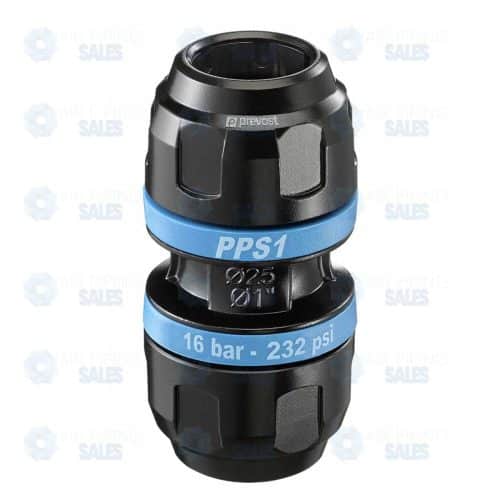

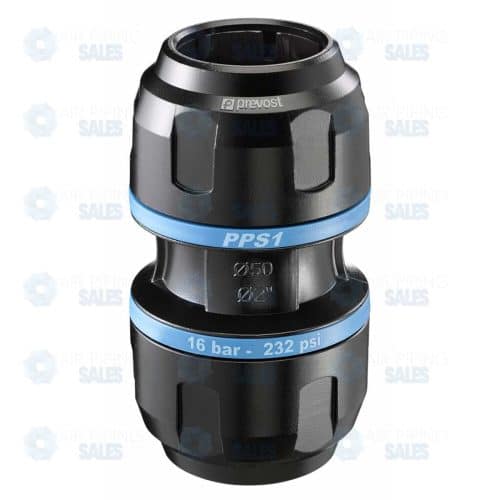

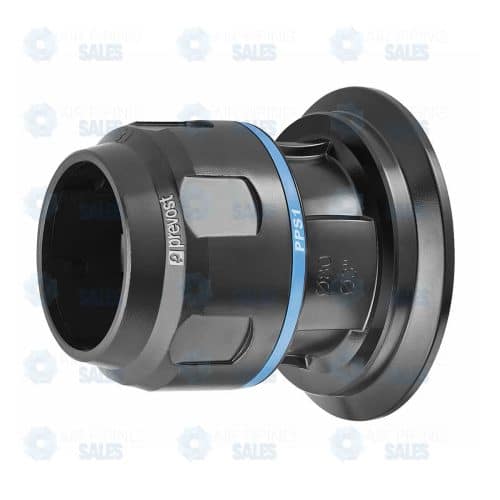

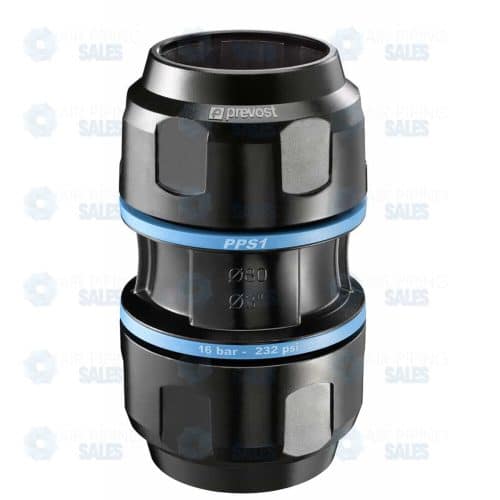

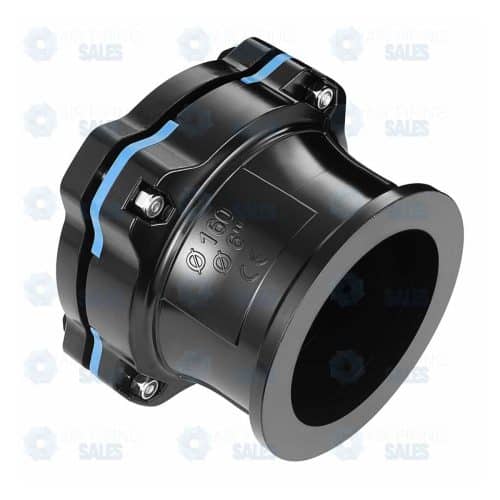

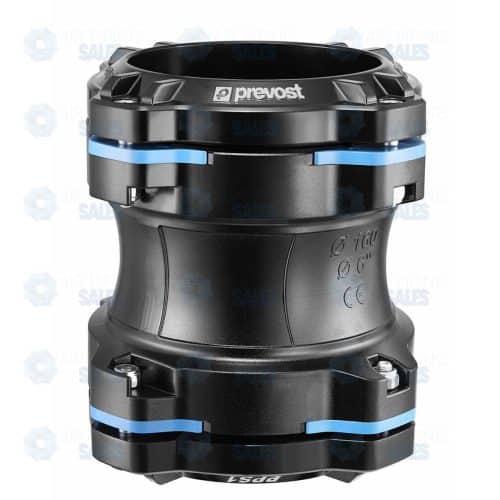

| Reference | For pipe OD (in) | A inch | B inch |
|---|---|---|---|
| PPS1 UN16 | 1/2 | 1.260 | 2.520 |
| PPS1 UN20 | 3/4 | 1.496 | 3.071 |
| PPS1 UN25 | 1 | 1.811 | 3.543 |
| PPS1 UN32 | 1 1/4 | 2.244 | 4.173 |
| PPS1 UN40 | 1 1/2 | 2.677 | 4.921 |
| PPS1 UN50 | 2 | 3.307 | 5.984 |
| PPS1 UN63 | 2 1/2 | 3.937 | 6.811 |
| PPS1 UN80 | 3 | 4.764 | 8.071 |
| PPS1 UN100 | 4 | 6.043 | 7.539 |
| PPS1 UN160 | 6 |
Additional information
| Product Range | CC Concept, PPS Aluminum |
|---|
