Prevost Aluminum Pipe For Compressed Air
Price range: $21.53 through $770.88
- Description
- Additional information
Description
Prevost Aluminum Pipe for Compressed Air
Blue Pipe is the color coding for compressed air. Prevost Aluminum Pipe also comes in green (gas), gray (vacuum) and black (waste). Extruded aluminum in lengths of 18 ft (1/2 inch is 13.12 ft). Use with the Prevost PPS1 compressed air fitting system, a push to fit technology that is a quick installation providing clean air.
Technical specifications
- Technology :PPS Grip Concept
- Operating pressure :29 to 232 psi
- Vacuum capability :0.59 inHg (vacuum 98%)
- Temperature : 5 deg. F to158 deg. F
- Construction :Pipe and fittings: aluminum
- Highlight :Scalable system
- Meets standards :ASME B31.3 REACH
| Pipe OD (in) | Length (ft) | Reference |
|---|---|---|
| 1/2″ | 13.12 | PPS BTU1640 |
| 3/4″ | 18 | PPS BTU2018 |
| 1″ | 18 | PPS BTU2518 |
| 1 1/4″ | 18 | PPS BTU3218 |
| 1 1/2″ | 18 | PPS BTU4018 |
| 2″ | 18 | PPS BTU5018 |
| 2 1/2″ | 18 | PPS BTU6318 |
| 3″ | 18 | PPS BTU8018 |
| 4″ | 18 | PPS BTU10018 |
| 6″ | 18 | PPS BTU16018 |
Product Overview: Prevost Piping System (PPS) – Blue Aluminum Pipe
The Prevost Blue Aluminum Pipe (PPS) is a premium, high-performance piping solution engineered specifically for compressed air distribution networks. Part of the innovative Prevost Piping System, this 100% aluminum pipe is designed to replace heavy, traditional steel or copper lines with a lightweight, corrosion-free alternative that maximizes airflow efficiency.
Distinguished by its industry-standard RAL 5012 Blue electrostatic coating, this pipe allows for immediate visual identification of compressed air lines, ensuring safety and compliance in complex industrial environments.
Key Features & Benefits
- Optimized Airflow & Efficiency: The pipe features a perfectly smooth, calibrated aluminum interior that ensures laminar fluid flow. This significantly creates a low friction coefficient, minimizing pressure drops and reducing energy costs for compressors.
- 100% Corrosion Resistant: Constructed from high-quality extruded aluminum alloy (EN AW 6060 T6) and treated both internally and externally. It is immune to rust and oxidation, ensuring the air supply remains clean and free of particulate contamination.

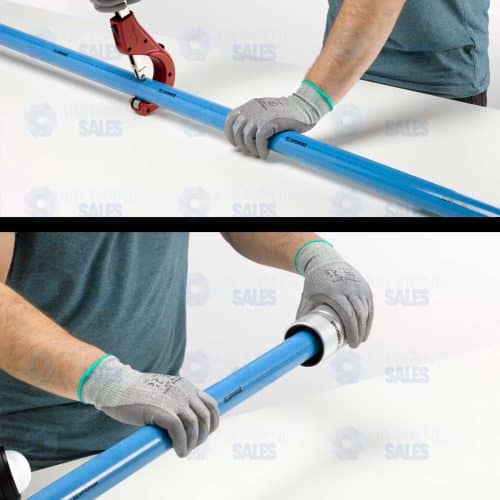

- Quick & Safe Installation: Weighing a fraction of traditional steel pipe, the PPS system is easy to handle, cut, and install. It requires no welding, gluing, or threading—significantly reducing labor time and eliminating fire hazards during installation.
- Leak-Free Performance: Designed to work seamlessly with Prevost’s “PPS Grip Concept” fittings, ensuring a secure, leak-proof seal that eliminates wasted air and energy.
- Durable & Rugged: Resistant to mechanical shock, UV rays, and thermal variations, making it suitable for harsh industrial environments ranging from workshops to large-scale manufacturing plants.
Technical Specifications
- Material: Extruded Aluminum Alloy (EN AW 6060 T6 / EN AW 6063 T6)
- Coating: Electrostatic Paint (External), Anti-Corrosion Treatment (Internal)
- Color: Blue (RAL 5012) – Standard code for Compressed Air
- Operating Pressure: Up to 232 PSI (16 bar)
- Operating Temperature: -4°F to +176°F (-20°C to +80°C)
- Fluid Compatibility: Compressed Air, Vacuum, Neutral Gases
- Available Diameters: Range typically includes 16mm (½”) to 160mm (6″)
Ideal Applications
- Manufacturing plants and assembly lines
- Automotive workshops and garages
- Food and beverage processing (due to clean air delivery)
- Aerospace and pharmaceutical facilities
- Any facility requiring a modular, scalable, and energy-efficient air network.
The Prevost Aluminum Pipe for Compressed Air is coated blue for compressed air applications, this product is also available for Vacuum and Inert Gas Applications.
