Prevost Polyurethane (PU) Ester-Based Tubing 328 Ft Rolls

Description

Prevost Polyurethane (PU) Ester-Based Tubing

The High-Performance Standard for Industrial Automation & Long-Run Installations

The Prevost Polyurethane Ester-Base Tubing in a 328 ft (100 meter) spool is the professional choice for large-scale pneumatic projects, production line builds, and high-volume maintenance shops. This industrial-grade tubing is engineered for maximum flexibility and durability, providing the “muscle” for your pneumatic control circuits and automated machinery.

The 328 ft bulk spool is designed for efficiency, reducing waste on long-distance runs and ensuring you always have enough high-quality tubing on hand for multiple workstations.

Key Features

• Unmatched Kink Resistance: The Ester-based formula provides a “soft” flexibility that allows for tight-radius turns without restricting airflow. It maintains its shape and performance even in the most cramped control cabinets.
• Precision Calibrated OD: Every inch is manufactured to exacting tolerances to ensure 100% compatibility with all “push-to-connect” fittings. This eliminates leaks and “blow-outs” common with inferior, uncalibrated tubing.
• Superior Elastic Memory: This tubing can be stretched and flexed repeatedly—ideal for robotic arms or moving machine parts—and will return to its original shape without permanent deformation.
• High-Volume Spool Value: The 328 ft length is perfect for installers. It allows for continuous runs across large equipment frames, minimizing the need for intermediate unions and reducing potential leak points.
• Excellent Abrasion & Tear Resistance: Designed to withstand the rigors of a busy factory floor, it resists cuts, abrasions, and the chemical effects of common industrial oils and greases.

Technical Specifications

Feature	Specification
Material	Polyurethane (PU) Ester-Base
Length	328 Feet (100 Meters)
Hardness	98 Shore A (Optimal balance of strength and flex)
Max Working Pressure	145 PSI (10 bar) at 20°C
Temperature Range	-20°C to +70°C (-4°F to 158°F)
Safety Factor	3:1 (Burst pressure vs. working pressure)
Standard Sizes	Available in 4mm, 6mm, 8mm, 10mm, and 12mm OD



Best Use Cases

• Multi-Station Distribution: Great for running air from a central manifold to 5–10 different assembly stations.
• Dynamic Machinery: Perfect for cable carriers and “energy chains” where tubing must move constantly.
• Pneumatic Control Panels: The high flexibility makes routing around PLC components and valves effortless.

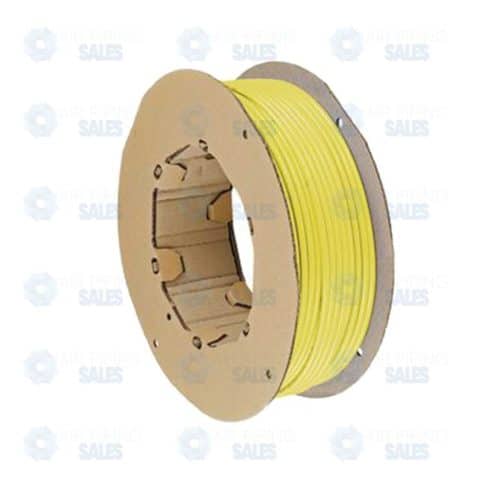

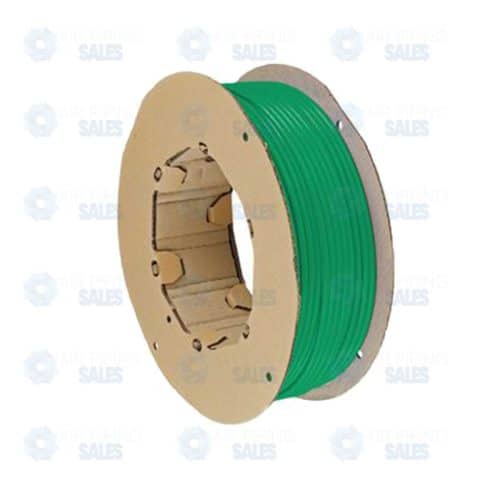

• System Identification: Use different colored spools (Blue, Black, Red, Yellow, Clear) to color-code supply lines, exhaust lines, and signal lines for faster troubleshooting.

Pro Tip: When cutting tubing from the spool, always use a Prevost Tube Cutter to ensure a perfectly square, burr-free end. A jagged or angled cut is the #1 cause of leaks in push-fit systems.
