Prevost PPS Chamfering & Deburring Tool

Description

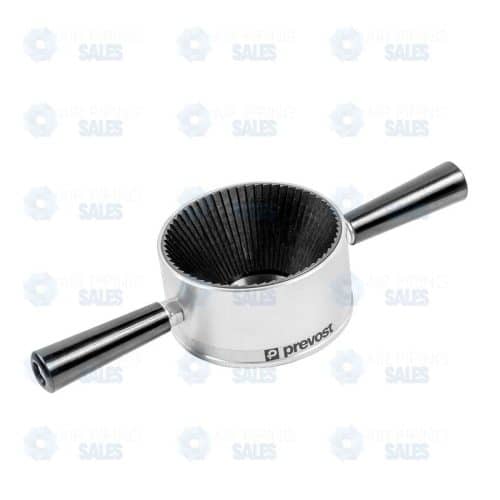

Prevost PPS Chamfering & Deburring Tool

The Prevost PPS Chamfering & Deburring Tool is a mandatory preparation instrument designed to ensure the integrity of every connection in your compressed air network. After cutting an aluminum pipe, the sharp raw edge poses a risk to the internal seals of the fittings. This specialized tool creates a precision bevel (chamfer) on the outer edge of the pipe while simultaneously cleaning the inner bore.

By properly prepping the pipe end, this tool guarantees that the pipe slides effortlessly through the fitting’s lubricated O-ring without slicing or damaging it, ensuring a 100% leak-proof seal from day one.

Key Features & Benefits

• Seal Protection (Crucial): Creates a smooth, angled bevel on the pipe’s exterior. This allows the pipe to glide past the internal NBR seal of the fitting gently, preventing the “slicing” effect that causes immediate leaks.
• Dual-Action Functionality: Performs two jobs in one motion: chamfering the Outside Diameter (OD) for connection safety, and deburring the Inside Diameter (ID) to remove airflow restrictions and debris.
• Smooth Insertion: A properly chamfered pipe requires significantly less force to push into the fitting, reducing installer fatigue and speeding up the assembly process.
• Versatile Operation: Available in manual “cone” styles for smaller diameters (allowing for quick hand twisting) and robust, adjustable blade styles for larger industrial pipe sizes.
• Clean System: Ensures that no metal shards or “swarf” hang loosely from the pipe end, preventing them from entering the air stream and damaging expensive pneumatic tools downstream.

Technical Specifications

• Part Series: PPS CH (Chamfer Tool)
• Function: External Chamfering & Internal Deburring
• Compatibility: Prevost Aluminum Pipe (All wall thicknesses)
• Capacity:

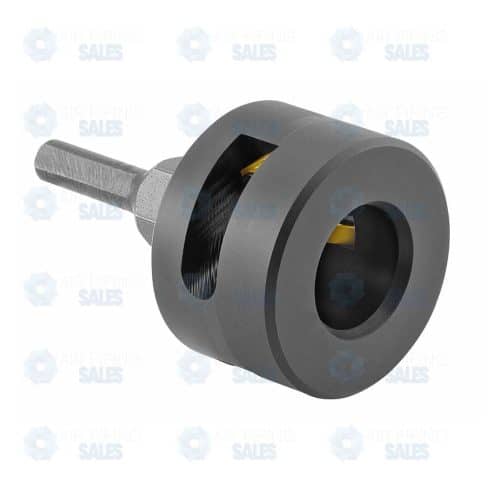

  • Cone Type: typically for 16mm – 50mm

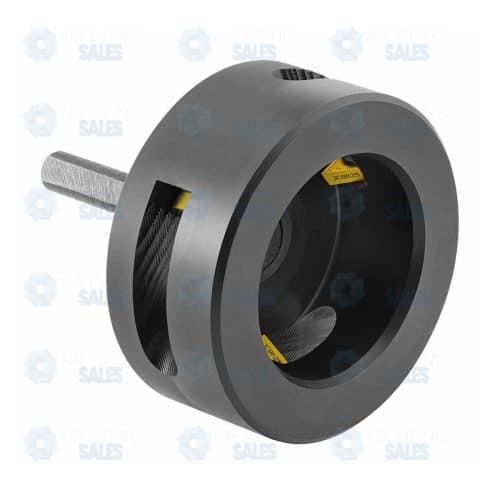

  • Adjustable Type: typically for 63mm – 100mm+
• Body Material: Impact-resistant steel or heavy-duty polymer body with hardened steel blades.

Ideal Applications

• Every Cut: Must be used on every single cut end of pipe before it is inserted into a fitting (Union, Elbow, Tee, etc.).
• Field Repairs: Essential for technicians performing on-site modifications to ensure the repaired section does not leak.
• System Flushing: Removing internal burrs prevents debris from accumulating at valves or filters.

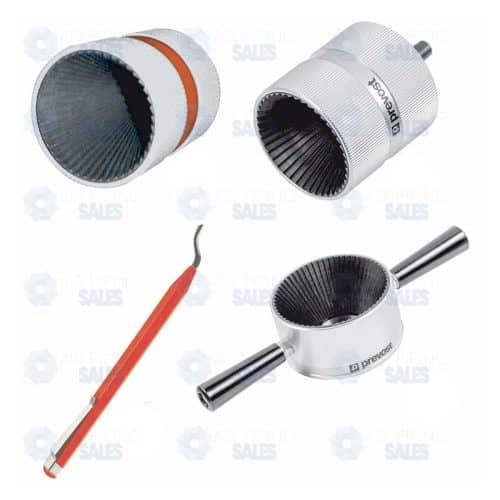

Deburring tools have hand or tool attach versions.
