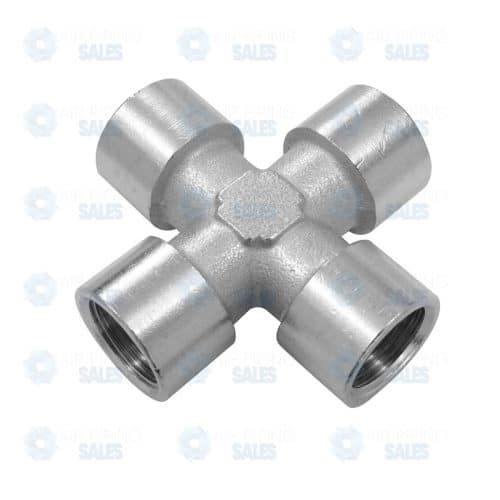

Prevost Female Equal Cross
Price range: $5.76 through $10.12
- Description
- Additional information
Description
Prevost Female Equal Cross (4-Way Fitting)
Centralize Your Air Distribution with Robust Precision
Streamline your compressed air piping system with the Prevost Female Equal Cross. This essential 4-way fitting allows you to connect four threaded pipes of equal diameter at a single junction, making it the perfect component for building custom distribution manifolds or splitting a single air supply line into three distinct directions.
Precision-machined from premium nickel-plated brass, this cross fitting offers superior durability and corrosion resistance compared to standard raw brass or plastic alternatives. Its robust construction ensures it can handle high-pressure industrial applications without deformation or leakage.
Key Features & Benefits
- 4-Way “Equal” Configuration: All four ports feature the same female thread size, allowing for the seamless connection of identical pipe diameters or fittings without the need for adapters.
- Nickel-Plated Brass Body: The specialized plating provides a hard, protective shell that resists rust, chemical oxidation, and abrasion, keeping your system looking professional and performing reliably.
- Versatile Distribution: Ideal for creating a central hub—feed air into one port and distribute it to three different tools or workstations simultaneously.
- Compact & Rugged: Designed to minimize spatial footprint while maintaining maximum structural integrity under pressure.
- High-Flow Design: Full-bore interior ensures minimal pressure drop across the junction.
Technical Specifications
| Feature | Specification |
| Material | Nickel-Plated Brass |
| Configuration | 4-Way Cross (X-Shape) |
| Thread Type | Female x Female x Female x Female |
| Thread Sizing | Equal (All ports same size) |
| Operating Pressure | Up to ~230 PSI (16 Bar) |
| Operating Temp | -4°F to +176°F (-20°C to +80°C) |
| Compatible Fluids | Compressed Air, Vacuum, Inert Gases |
Ideal Applications
- Custom Manifolds: Building “home-run” air distribution blocks for workshops.
- Complex Routing: Navigating piping around obstacles where 90-degree tees are insufficient.
- Sensor Installation: Adding a pressure gauge or sensor into an existing line while maintaining flow continuity.
- Fluid Splitting: Dividing a single hydraulic or pneumatic source into multiple equal paths.
Installation Note: Ensure you use a compatible liquid thread sealant or PTFE tape on the male threads connecting to this cross to guarantee a leak-free seal.
Additional information
| Thread Size | 1/2", 3/8", 1/4", 1/8" |
|---|---|
| Product Range | Conex and Connections |
