Prevost PPS Dilatation Kit / Expansion Joint

Description

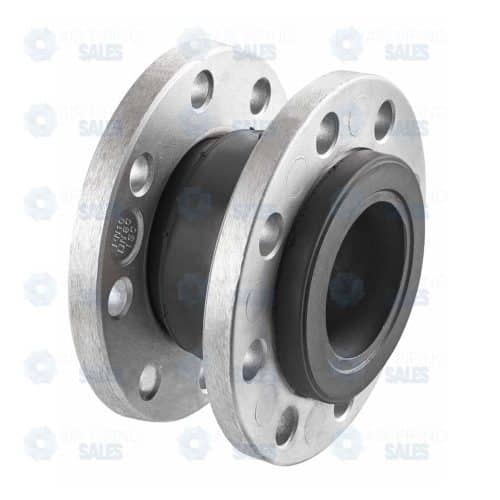

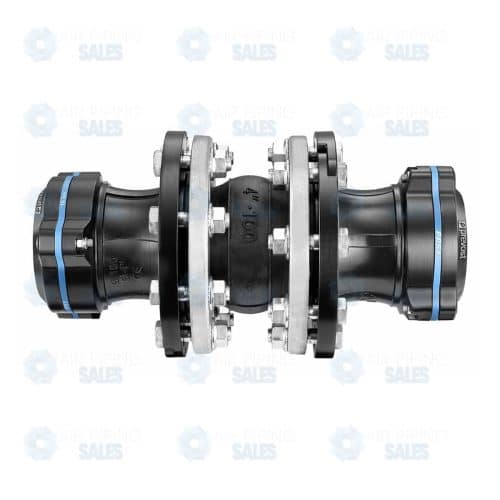

Prevost PPS Dilatation Kit / Expansion Joint

The Essential Solution for Thermal Stability in Large Pipe Runs

The Prevost Dilatation Kit is a critical engineered component designed to manage the natural expansion and contraction of aluminum piping in large-scale compressed air networks.¹ Because aluminum has a higher thermal expansion coefficient than steel, long straight runs of pipe can “snake” or put stress on fixed mounting brackets when temperatures fluctuate.

This kit provides the necessary “give” to your system, absorbing linear movement to prevent joint fatigue, leaks, and mechanical deformation of your infrastructure.

Key Features

• Thermal Compensation: Specifically designed to absorb the longitudinal movement caused by temperature swings in large warehouses, uninsulated plants, or outdoor-to-indoor transitions.
• Telescopic Sliding Action: Unlike rigid fittings, the internal mechanism allows the aluminum pipe to slide safely within a controlled range, neutralizing the physical force of expansion without breaking the airtight seal.
• Maintains System Alignment: By absorbing the movement internally, the Dilatation Kit ensures your pipe runs stay perfectly straight and professional-looking, preventing the “bowing” effect common in long runs.
• Complete Installation Kit: Each kit comes ready to install with specialized sliding unions and calibrated pipe sections, ensuring a seamless fit with the existing PPS (Prevost Piping System).
• Heavy-Duty Reliability: Built to the same high standards as the rest of the PPS line, featuring high-grade aluminum construction and premium NBR seals to maintain a 100% leak-free rating during movement.

Technical Specifications

Feature	Specification
Material	High-grade Aluminum Alloy
Compatibility	All Prevost PPS Aluminum Pipe (Ø 16mm to 80mm+)
Max Pressure	232 PSI (16 bar)
Movement Capacity	Calculated based on total run length and $\Delta T$
Vacuum Rating	98% (13 mbar absolute)
Sealing	Double-lobed NBR seals with Teflon® coating



When Should You Use a Dilatation Kit?

A Dilatation Kit is recommended for any straight pipe run exceeding 30 meters (approx. 100 feet), especially in environments where:

• The facility is subject to seasonal temperature shifts (e.g., non-climate-controlled manufacturing).
• The air from the compressor is significantly hotter than the ambient room temperature.
• The piping is installed near heat sources or skylights.

Pro Tip: To work effectively, these kits must be installed between two “fixed points” (rigidly anchored brackets) to ensure the expansion is forced toward the sliding joint rather than toward a corner or a drop.

Technical specifications

• Technology :PPS Grip Concept
• Operating pressure :29 to 232 psi
• Vacuum capability :0.59 inHg (vacuum 98%)
• Temperature : 5 deg. F to158 deg. F
• Construction :Pipe and fittings: alu.
• Highlight :Scalable system
• Meets standards :ASME B31.3 REACH

For tube OD (in)	Reference
2 1/2″	PPS1 DK63
3″	PPS1 DK80
6″	PPS1 DK160BB

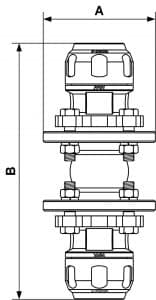

A (inch)	B (inch)	Reference
6.496	14.961	PPS1 DK63
7.283	15.748	PPS1 DK80
6.496	14.961	PPS1 DK63
