Prevost Conex Micro Male Run Tee

Description

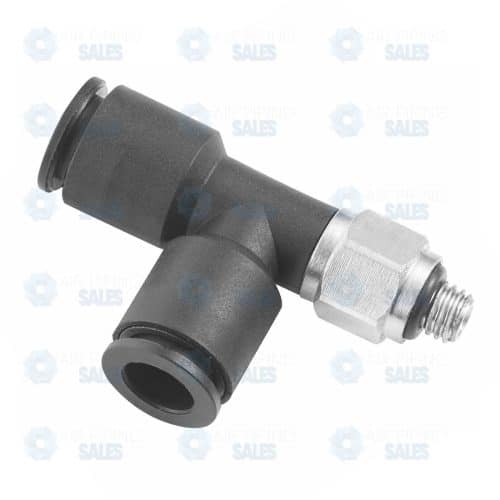

Prevost Conex Micro Male Run Tee

Compact Branching for High-Density Port Connections

The Prevost Conex Micro Male Run Tee is a specialized, miniaturized push-to-connect fitting designed to create a “T” junction directly at a threaded port. In this “Run Tee” configuration, the threaded connection and one tubing outlet are positioned in a straight line (the “run”), while the second tubing outlet branches off at a $90^\circ$ angle.

As part of the Micro series, this fitting is engineered for the most confined spaces in pneumatic logic and micro-automation, providing a reliable way to split an air signal or supply without adding the bulk of standard industrial fittings.

Key Features

• Ultra-Low Profile Micro Design: Optimized for small-bore tubing (typically 3mm or 4mm) and miniature threaded ports (such as M3, M5, or 10-32 UNF). It is the perfect solution for instrumentation panels and miniature valve blocks.
• 360° Swivel Body: After the threaded base is secured, the polymer “T” body rotates fully. This allows you to orient the branch outlet in any direction to match your tubing layout, which is essential when working in dense, cluttered assemblies.
• Instantaneous “Grip” Technology: Equipped with Prevost’s signature stainless steel gripping rings on both tube ports. Simply push the technical tubing (PU, PA, or PE) in for a secure, vibration-proof, and airtight seal—no tools or clamps required.
• Streamlined “Run” Logic: The linear path from the port to the first tubing outlet ensures a direct flow, while the branch allows for an auxiliary connection—ideal for adding a pressure sensor or an additional actuator at the source.
• Nickel-Plated Brass & Polymer Hybrid: The threaded base is manufactured from high-strength nickel-plated brass for mechanical durability, while the body is made from high-impact, corrosion-resistant technical polymer.

Technical Specifications

Feature	Specification
Connection Type	Micro Male Run Tee (1x Male Thread, 2x Tube)
Technology	Push-to-connect (Instantaneous)
Thread Options	Metric (M3, M5) or Miniature NPT/UNF
Max Operating Pressure	145 PSI (10 bar)
Vacuum Rating	-28 inHg
Temperature Range	32°F to 140°F (0°C to +60°C)

Precision for Modern Miniaturization

In micro-pneumatics, the Prevost Conex Micro Male Run Tee acts as a “mini-manifold.” It allows engineers to take an air supply directly from a valve or manifold and split it immediately into two directions without using multiple fittings. This reduction in the total number of components not only saves space but also minimizes the “stacking” of potential leak points, ensuring higher system reliability in sensitive medical, electronic, or laboratory applications.

Ideal Applications

• Miniature Valve Blocks: Splitting a single valve output to two separate micro-cylinders or pilot lines.
• Pressure Monitoring: Using the branch port to connect a pressure transducer while the main “run” feeds the primary actuator.
• Electronic Assembly: Providing air distribution for high-speed pick-and-place heads where space is extremely limited.
• Medical Devices: Managing gas and air signals within compact, desktop diagnostic equipment.

Installation Tip

When working with micro-threads (like M3 or M5), avoid over-tightening the brass base, as these small threads can be delicate. Once the base is snug, swivel the body to the desired angle before inserting your squared-off micro-tubing. Always use a dedicated tube cutter to ensure the tubing ends are not crushed, which is common when using standard wire cutters or scissors on small-diameter lines.
