Prevost Conex Micro Equal Y Piece

Description

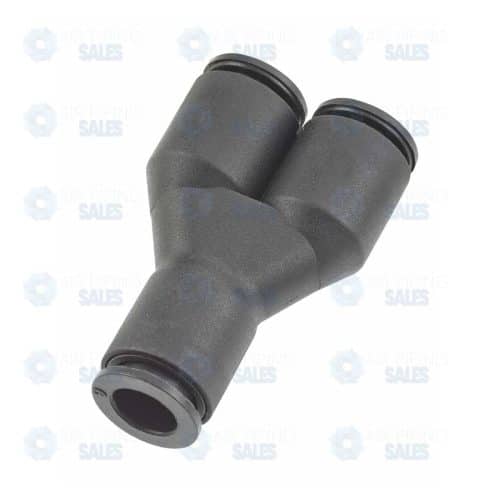

Prevost Conex Micro Equal Y Piece

Ultra-Compact Dual Distribution for High-Density Pneumatics

The Prevost Conex Micro Equal Y Piece is a specialized, miniaturized push-to-connect union designed to split a single air line into two parallel paths within extremely confined spaces. While standard “Y” fittings are often too bulky for modern, compact machinery, the Micro series provides the same high-performance air distribution with a significantly reduced footprint.

By utilizing a “Y” geometry rather than a 90-degree Tee, this fitting allows air to flow more naturally into the branches, reducing turbulence and ensuring that small-bore cylinders and sensors receive balanced pressure.

Key Features

• Micro-Scale Footprint: Specifically engineered for applications where every millimeter counts. The slim profile is ideal for installation inside miniature valve cabinets, medical devices, or high-density robotic “wrists.”
• Balanced “Linear” Flow: The angled branches provide a smoother transition for compressed air compared to T-junctions. This results in less pressure drop—a critical factor when working with the low volumes typical of micro-pneumatics.
• Instantaneous “Grip” Technology: Despite its small size, the Micro Y features Prevost’s signature stainless steel gripping rings in all three ports. Simply push the small-diameter tubing (typically 3mm, 4mm, or 6mm) for a secure, tool-free connection.¹
• Streamlined Parallel Routing: The “Y” shape allows two outlet tubes to run side-by-side. This makes it easier to bundle lines into protective sleeves or narrow cable tracks, keeping the system organized and professional.
• High-Impact Technical Polymer: Manufactured from a durable, corrosion-resistant composite that handles industrial pressures while remaining incredibly lightweight, preventing “sag” in flexible tubing runs.

Technical Specifications

Feature	Specification
Connection Type	Equal Y Union (Micro Series)
Technology	Push-to-connect (Instantaneous)
Max Operating Pressure	145 PSI (10 bar)
Vacuum Rating	-28 inHg
Temperature Range	32°F to 140°F (0°C to +60°C)
Common Sizes	3mm, 4mm, 6mm (and Miniature Fractional)

The Solution for Precision Automation

In the world of micro-automation, space is the greatest challenge. The Prevost Conex Micro Equal Y Piece is designed for the “fine-scale” engineer. It allows for the synchronization of two miniature actuators or the splitting of a pilot signal to two separate pressure switches without cluttering the workspace. Its lightweight nature also makes it ideal for end-of-arm tooling (EOAT) on cobots and high-speed pick-and-place robots, where minimizing “swing weight” is essential for accuracy.

Ideal Applications

• Medical & Laboratory Equipment: Managing air and neutral gas lines in compact diagnostic instruments.
• Electronic Assembly: Powering miniature grippers and vacuum pick-up heads on high-speed SMT lines.
• Pneumatic Pilot Circuits: Distributing low-volume signals to control valves and pressure sensors.
• Robotic End-Effectors: Splitting air supply to multiple micro-cylinders or vacuum cups on a single tool.

Installation Tip

Because micro-tubing is delicate, it is essential to use a sharp, dedicated tube cutter to avoid crushing the line. When inserting the tube into the Micro Y, ensure you feel it pass the internal O-ring. A gentle tug will confirm the stainless steel teeth have successfully gripped the tube.
