Prevost Conex Micro Bulkhead Fitting

Description

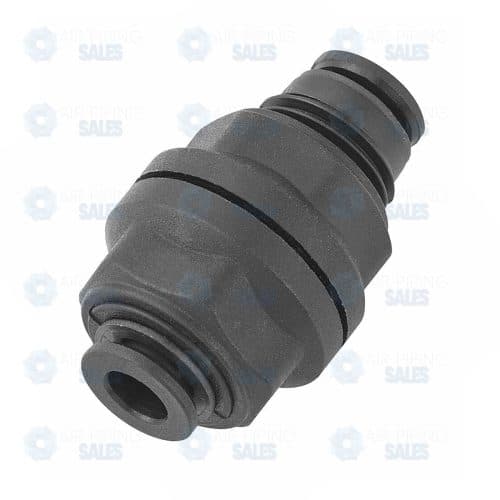

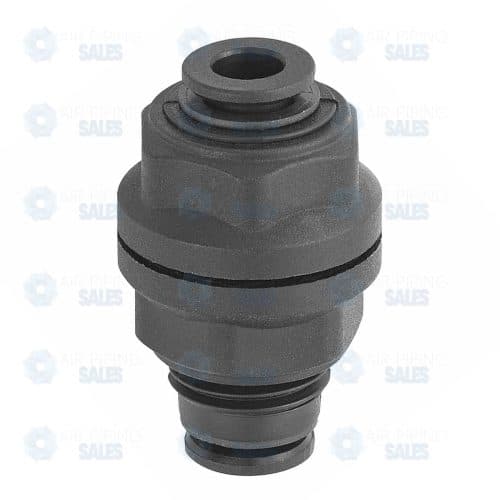

Prevost Conex Micro Bulkhead Fitting

Ultra-Compact Transition for Panel-Mount Applications

The Prevost Conex Micro Bulkhead Fitting is a high-performance, miniaturized solution designed to pass pneumatic lines through machine panels, cabinet walls, or bulkheads. Part of the specialized Micro series, this fitting is engineered for high-density environments where space is at a premium and standard bulkhead connectors are too large to be practical.

By providing a secure, fixed mounting point, it protects tubing from friction and mechanical stress at the transition point, ensuring an airtight seal and a professional, organized finish for your equipment.

Key Features

• Miniaturized Footprint: Specifically designed for small-bore tubing (typically 3mm, 4mm, or 6mm). Its low-profile design allows for multiple connections to be mounted in close proximity on a single control panel.
• Instantaneous “Grip” Technology: Features Prevost’s signature stainless steel gripping rings on both sides. Simply push the technical tubing (PU, PA, or PE) into the fitting for a tool-free, vibration-proof connection.
• Secure Threaded Mounting: Equipped with a rugged threaded body and locking nut, allowing the fitting to be tightened securely against a panel. This prevents the pneumatic line from moving or “sawing” against the panel edge, which can lead to tubing failure.
• Nickel-Plated Brass Construction: Manufactured with a high-grade nickel-plated brass body for superior mechanical strength and resistance to corrosion, ensuring the bulkhead can withstand the tension of connected tubing.
• Full-Bore Flow Efficiency: The internal geometry is optimized for micro-pneumatics, maintaining consistent pressure and airflow with zero restriction—a critical requirement for sensitive sensors and miniature actuators.

Technical Specifications

Feature	Specification
Connection Type	Micro Bulkhead Union (Tube-to-Tube)
Technology	Push-to-connect (Instantaneous)
Max Operating Pressure	145 PSI (10 bar)
Vacuum Rating	-28 inHg
Temperature Range	32°F to 140°F (0°C to +60°C)
Mounting	Panel/Bulkhead (Lock-nut included)

The Professional Finish for Compact Enclosures

In precision automation, routing air lines through an enclosure without a bulkhead is a risk; vibration can cause the enclosure edge to cut through the tubing over time. The Prevost Conex Micro Bulkhead Fitting eliminates this risk by creating a rigid “anchor point.” It provides a clean interface for the user, allowing external lines to be disconnected and reconnected without disturbing the internal plumbing of the machine.

Ideal Applications

• Control Cabinets: Creating high-density pneumatic interfaces on the exterior of small electrical or control boxes.
• Medical Diagnostic Equipment: Passing sensitive gas or air lines through the chassis of desktop medical instruments.
• Lab-on-a-Chip & Analytics: Managing intricate micro-fluidic or pneumatic signals in laboratory hardware.
• Robotics & Cobots: Serving as a transition point for air lines passing from a robot’s internal arm to the end-of-arm tooling (EOAT).

Installation Tip

When drilling your panel, ensure the hole diameter matches the outer thread of the bulkhead body. For a perfectly square and leak-free connection, always use a dedicated tube cutter to prepare your micro-tubing. Tighten the lock-nut firmly against the panel to ensure the fitting remains stationary under vibration.
