Prevost Conex Male Run Tee

Description

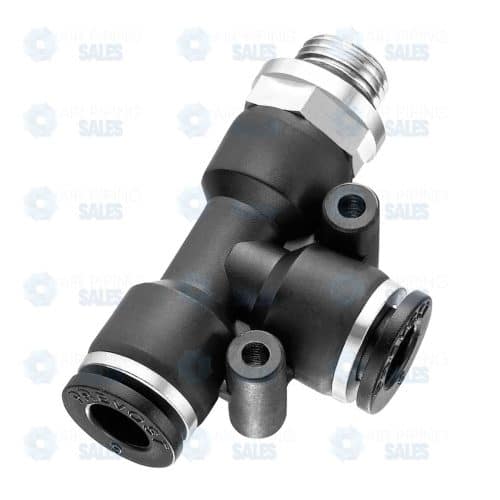

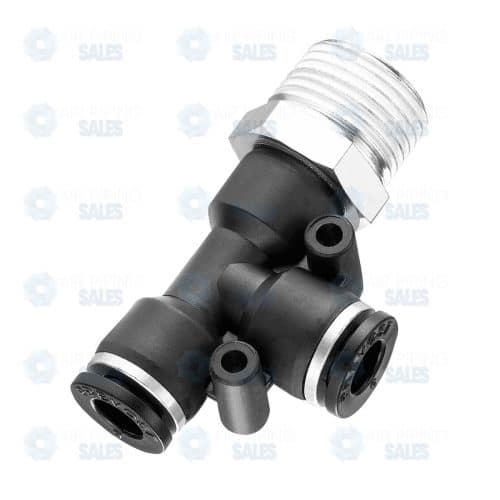

Prevost Conex Male Run Tee

In-Line Threaded Branching for Streamlined Air Distribution

The Prevost Conex Male Run Tee is a high-performance “T” shaped fitting designed to create a branch line directly in the middle of a pneumatic run. Unlike a branch tee (where the thread is on the bottom), the Male Run Tee features a male threaded port on one of the horizontal ends. This allows the fitting to be threaded directly into a component—such as a valve or cylinder—while allowing the air line to continue in a straight “run” past that point.

This configuration is essential for “daisy-chaining” multiple pneumatic components in series or for adding a drop-line to a main supply header with minimal space and fittings.

Key Features

• Strategic “Run” Configuration: The male thread is positioned at 180 degree to one push-in port, with the second push-in port acting as the 90 degree branch. This is the ideal geometry for mounting a fitting into a port while maintaining a straight-through main air line.
• 360° Swivel Body: The entire polymer “T” body rotates fully around the nickel-plated brass threaded base. This allows you to orient both the straight run and the 90-degree branch perfectly, regardless of where the thread tightens.
• Instantaneous “Grip” Technology: Both tubing ports feature Prevost’s signature stainless steel gripping rings. Installation is tool-free; simply push the technical tubing (PU, PA, or PE) in for a secure, vibration-proof, and airtight seal.
• Full-Flow Internal Geometry: Precision-engineered to ensure maximum airflow with negligible pressure drop. The internal path is optimized to support the high-demand requirements of industrial actuators and air tools.
• Rugged Hybrid Construction: Combines the mechanical strength of a nickel-plated brass base with a high-impact technical polymer body. This ensures the fitting can withstand high vibration, moisture, and exposure to industrial oils.

Technical Specifications

Feature	Specification
Connection Type	Male Run Tee (Thread-to-Tube-to-Tube)
Technology	Push-to-connect (Instantaneous)
Thread Options	NPT, BSPP (G), or BSPT (R) — 1/8″ to 1/2″
Max Operating Pressure	145 PSI (10 bar)
Vacuum Rating	-28 inHg
Temperature Range	32°F to 140°F (0°C to +60°C)

The Efficient Choice for Series Plumbing

The Prevost Conex Male Run Tee is a “system-level” problem solver. It is most frequently used when multiple devices need to share the same air supply without a centralized manifold.

1. Series Connections: Perfect for linking several valves or cylinders in a row along a single supply line.
2. Compact Integration: By threading the “run” directly into the port, you eliminate the need for extra nipples and T-unions, reducing the physical footprint of your machine logic.
3. Organized Routing: Allows air lines to run parallel to machine frames or mounting plates, keeping the installation clean and protected from mechanical damage.

Ideal Applications

• Manifold Extensions: Adding a branch line to an existing manifold port while continuing the main air supply to the next block.
• Cylinder Clusters: Feeding a series of cylinders where space does not allow for individual supply lines from a central source.
• Pilot Logic Circuits: Splitting a control signal at a specific valve location to trigger a secondary downstream component.
• Sensor Integration: Mounting a threaded pressure switch or gauge into a “run” without interrupting the flow to the rest of the system.

Installation Tip

When threading the fitting into your port, use a wrench on the hexagonal brass base to ensure a primary seal (using thread sealant for NPT or the integrated gasket for BSPP). Once the base is secure, swivel the body to align with your tubing path. For a 100% leak-free connection, always use a dedicated tube cutter to ensure your tubing ends are cut perfectly square.
