Prevost Conex Equal Valve Three Ways

Description

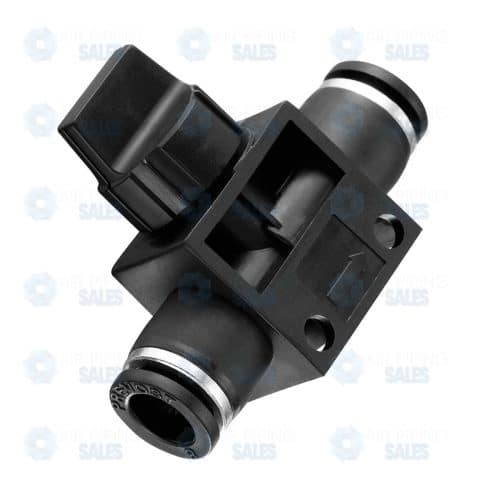

Prevost Conex Equal Valve Three-Ways

Precision Manual Control for Branched Pneumatic Circuits

The Prevost Conex Equal Valve Three-Ways is a specialized manual control fitting designed to combine the functionality of a 3-way distribution junction with an integrated shut-off mechanism. This “Y” or “T” style valve allows the user to manually control the flow of air to downstream branches, making it an essential component for systems that require frequent isolation, maintenance, or selective tool operation.

Engineered with the same high-performance push-to-connect technology as the rest of the Conex line, this valve provides a secure, tool-free interface for Polyurethane (PU) or Nylon (PA) tubing.

Key Features

• Integrated 3-Way Control: Unlike a standard union, this valve allows you to divert or shut off airflow to specific parts of your pneumatic circuit. Depending on the model, it can act as a selector or a master shut-off for two output lines.
• Ergonomic Manual Lever: Features a high-visibility, easy-turn handle that provides a clear visual indication of the valve position (Open/Closed). The smooth operation allows for quick isolation without the need for tools.
• Instantaneous “Grip” Technology: All ports are equipped with precision stainless steel gripping rings. Simply push the tubing into the fitting for an immediate, vibration-proof, and airtight seal.
• Full-Flow Internal Porting: Designed to maintain maximum CFM (Cubic Feet per Minute), ensuring that your pneumatic tools and actuators receive the necessary volume of air for peak performance even when passing through the valve body.
• Lightweight & Durable Construction: Manufactured from high-impact technical polymers and nickel-plated brass components, this valve is built to resist industrial wear, moisture, and common workshop oils.

Technical Specifications

Feature	Specification
Connection Type	Equal 3-Way Union (Tube-to-Tube-to-Tube)
Valve Function	3/2 Manual Control (Typical)
Max Operating Pressure	145 PSI (10 bar)
Vacuum Rating	-28 inHg
Temperature Range	32°F to 140°F (0°C to +60°C)
Compatible Tubing	Polyurethane (PU), Nylon (PA), Polyethylene (PE)

Optimizing System Safety and Efficiency

The Prevost Conex 3-Way Valve is a critical safety and energy-saving tool. By installing these valves at strategic branches in your pneumatic network, you can:

1. Isolate Sections: Perform maintenance on one machine or tool station without shutting down the entire air line.
2. Prevent Air Waste: Easily shut off air supply to unused branches at the end of a shift, reducing compressor load and energy costs.
3. Enhance Safety: Provide a localized “lock-out” point for specific pneumatic actuators.

Ideal Applications

• Multi-Tool Workstations: Selecting between two different pneumatic tools (e.g., a blow gun and a stapler) from a single supply line.
• Control Panel Manifolds: Providing manual override or isolation for specific pneumatic logic circuits.
• Maintenance Drops: Acting as a localized shut-off point for air-driven machinery.
• Modular Automation: Allowing for the quick disconnection and isolation of modular machine sections during transport or setup.

Installation Tip

When installing the tubing, ensure the ends are cut perfectly square using a dedicated tube cutter. Push the tube into the valve until it “seats” past the internal O-ring. A quick tug on each line will verify that the gripping mechanism is fully engaged.
