Prevost Conex 90 Degree Micro Equal Elbow

Description

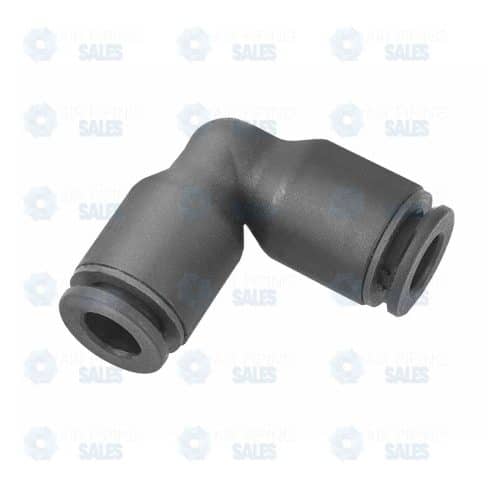

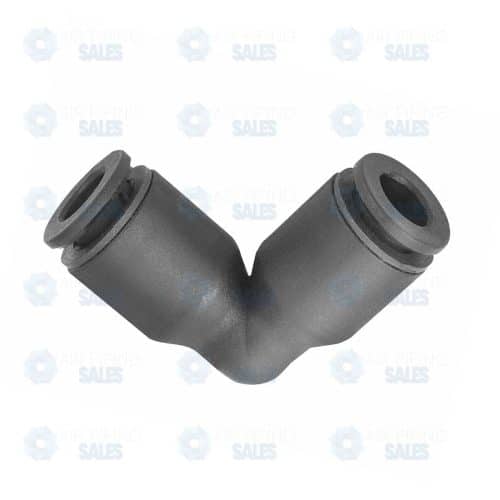

Prevost Conex 90° Micro Equal Elbow

Ultra-Compact Routing for Precision Pneumatics

The Prevost Conex Micro Equal Elbow is a premium push-to-connect fitting designed for space-constrained pneumatic applications.¹ Part of the specialized Conex Micro range, this 90-degree elbow is engineered for use with small-diameter technical tubing (typically Polyurethane or Polyamide).

While standard pneumatic fittings can be bulky, the “Micro” series focuses on a miniaturized footprint without sacrificing flow rate or pressure integrity. This makes it the ideal solution for compact machinery, control cabinets, and intricate pneumatic logic circuits.

Key Features

• Miniaturized Profile: Significant reduction in external dimensions compared to standard push-in fittings, allowing for high-density tube routing in tight manifolds or small enclosures.
• “Instant” Connection: Features a high-precision internal gripping ring that allows for tool-free, one-handed tube insertion. The connection is secure, airtight, and repeatable.
• Full-Flow Internal Geometry: Despite its small size, the elbow is designed to minimize air turbulence and pressure drop, ensuring your precision components receive consistent air volume.
• 360° Orientation: Many models in the Conex line feature a swivel body, allowing you to align the 90-degree bend perfectly with your tubing path after the fitting has been installed.
• Durable Technical Polymer: Constructed from high-grade, impact-resistant materials that are compatible with compressed air and vacuum, ensuring long-term reliability in industrial environments.

Technical Specifications

Feature	Specification
Fitting Type	90° Equal Elbow (Tube-to-Tube)
Technology	Push-to-connect (Instantaneous)
Max Pressure	145 PSI (10 bar)
Vacuum Rating	-28 inHg
Temperature Range	32°F to 140°F (0°C to +60°C)
Compatible Tubing	PU (Polyurethane), PA (Polyamide/Nylon), Fluoropolymer

Why Choose “Micro” Fittings?

In modern automation, “smaller is better.” As control panels and robotic end-effectors become more compact, traditional fittings often interfere with moving parts or require larger enclosures. The Prevost Conex Micro Elbow solves this by providing a tight bend radius and a slim body, allowing designers to pack more functionality into a smaller cubic area.

Ideal Applications

• Pneumatic Control Cabinets: Organizing complex valve manifolds where space is at a premium.
• Robotic Grippers: Routing air lines through small articulating joints or narrow mounting plates.
• Medical & Lab Equipment: Providing clean, compact air connections for diagnostic or automated testing machinery.
• Packaging Machinery: Managing the logic lines for high-speed pick-and-place systems.

Installation Tip

For the best seal, ensure the tubing is cut square using a dedicated tube cutter. Push the tube into the Conex fitting until you feel it bottom out against the internal seat; a slight tug will confirm the stainless steel gripping teeth have engaged correctly.
