Prevost Aluminum Thread Tapping Flange

Description

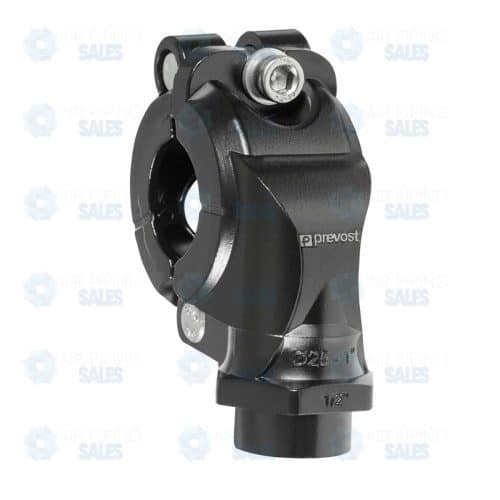

Prevost Aluminum Thread Tapping Flange

Technical specifications

• Technology :PPS Grip Concept
• Operating pressure :29 to 232 psi
• Vacuum capability :0.59 inHg (vacuum 98%)
• Temperature : 5 deg. F to158 deg. F
• Construction :Pipe and fittings: alu.
• Highlight :Scalable system
• Meets standards :ASME B31.3 REACH

For pipe OD (in)NPT female threadReference1″3/8″ FNPTPPS1 BT252021 1/2″1/2″ FNPTPPS1 BT402031″1/2″ FNPTPPS1 BT252031 1/4″1/2″ FNPTPPS1 BT322031 1/2″3/4″ FNPTPPS1 BT402041 1/2″1″ FNPTPPS1 BT402051 1/4″3/4″ FNPTPPS1 BT322042″1/2″ FNPTPPS1 BT502032″3/4″ FNPTPPS1 BT502042″1″ FNPTPPS1 BT502052 1/2″1/2″ FNPTPPS1 BT632032 1/2″3/4″ FNPTPPS1 BT632042 1/2″1″ FNPTPPS1 BT632053″1/2″ FNPTPPS1 BT802033″3/4″ FNPTPPS1 BT802043″1″ FNPTPPS1 BT80205

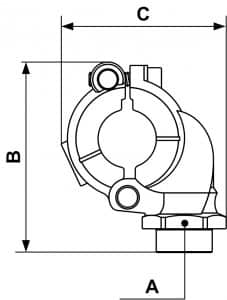

A (mm)	B (inch)	C (inch)	Reference
32	3.228	2.756	PPS1 BT25202
44	4.331	4.016	PPS1 BT40203
32	3.228	2.756	PPS1 BT25203
32	3.228	2.756	PPS1 BT32203
44	4.331	4.016	PPS1 BT40204
44	4.331	4.016	PPS1 BT40205
32	3.307	2.756	PPS1 BT32204
44	4.331	4.016	PPS1 BT50203
44	4.331	4.016	PPS1 BT50204
44	4.331	4.016	PPS1 BT50205
57	6.339	5.787	PPS1 BT63203
57	6.339	5.787	PPS1 BT63204
57	6.378	5.787	PPS1 BT63205
57	6.339	5.787	PPS1 BT80203
57	6.339	5.787	PPS1 BT80204
57	6.378	5.787	PPS1 BT80205

Prevost PPS Threaded Tapping Flange (Female Outlet)

The Prevost PPS Aluminum Threaded Tapping Flange (often called a “Quick Branch Saddle”) is a specialized retrofit fitting designed to create a threaded outlet anywhere along an existing compressed air header. Instead of a direct pipe connection, this flange provides a robust Female NPT or BSPP thread, allowing you to screw threaded components—such as ball valves, male stud couplings, or sensors—directly onto the main aluminum pipe.

This fitting is the ultimate problem-solver for system modifications, allowing maintenance teams to add threaded instrumentation or branch lines to a live network without cutting the main pipe or dismantling the system.

Key Features & Benefits

• Instant Threaded Interface: Converts a simple drilled hole in the main pipe into a secure, industrial-grade female thread (typically ½”, ¾”, or 1″). This allows for the immediate installation of threaded accessories like quick couplers, gauges, or isolation valves.
• “Dry Air” Technology: Features an internal protrusion that extends into the center of the pipe. This “swan neck” design draws air from the driest part of the airflow, preventing condensate running along the bottom of the pipe from entering your threaded equipment.
• Non-Destructive Installation: No pipe cutting is required. The flange clamps securely over the pipe exterior using a seal and bolts, maintaining the structural integrity of the main header.
• Versatile Compatibility: Allows users to transition from Prevost aluminum piping to other threaded systems (e.g., connecting a steel whip hose or a brass valve) instantly.
• Leak-Free Reliability: The connection point is sealed with a pre-lubricated O-ring that conforms to the pipe curvature, while the aluminum body ensures the thread itself will not rust or degrade over time.

Technical Specifications

• Part Series: PPS1 BP (Female Threaded Flange)
• Body Material: Aluminum Alloy
• Outlet Type: Female Thread (NPT or BSPP)
• Main Pipe Compatibility: Fits diameters 25mm to 100mm (check specific part for sizing)
• Operating Pressure: Up to 232 PSI (16 bar)
• Operating Temperature: -4°F to +176°F (-20°C to +80°C)
• Torque: Bolts must be tightened to specified torque (typically labeled on the flange).

Ideal Applications

• Valve Installation: Screwing a male-threaded ball valve directly onto the header to create a shut-off point for a new zone.
• System Monitoring: Installing pressure transducers, dew point sensors, or gauges that require a threaded port.
• Hybrid Systems: Transitioning from a main aluminum header to a copper or steel branch line via a threaded male adapter.
• Vent & Drain Points: When installed on top of the pipe, it serves as an air vent; when installed on the bottom (without the internal projection), it can serve as a heavy-duty drain port.
