Prevost Aluminum Equal Female Tee Fitting For Pipe

Description

PPS1 TE – ALUMINUM EQUAL FEMALE TEE FITTING FOR PIPE
Technical specifications

• Technology :PPS Grip Concept
• Operating pressure :29 to 232 psi
• Vacuum capability :0.59 inHg (vacuum 98%)
• Temperature : 5 deg. F to158 deg. F
• Construction :Pipe and fittings: alu.
• Highlight :Scalable system
• Meets standards :ASME B31.3 REACH

Reference	For pipe OD (in)	A inch	B inch	C inch
PPS1 TE16	1/2″	1.260	3.543	2.441
PPS1 TE20	3/4″	1.496	4.252	2.874
PPS1 TE25	1″	1.811	5.157	3.504
PPS1 TE32	1 1/4″	2.244	6.102	4.173
PPS1 TE40	1 1/2″	2.677	7.205	5.315
PPS1 TE50	2″	3.307	8.622	5.945
PPS1 TE63	2 1/2″	3.937	10.276	7.087
PPS1 TE80	3″	4.764	12.402	8.583
PPS1 TE100	4″	6.043	12.146	6.890

Prevost PPS Aluminum Equal Tee

The Prevost PPS Aluminum Equal Tee is the cornerstone of effective air distribution networks, designed to split a single air line into two equal paths or create drop points from a main header. This “T” shaped connector is vital for building ring mains and branching out supply lines to different zones of a facility.

Unlike threaded iron tees that are heavy, prone to leaks, and restrict flow, the PPS Equal Tee offers a lightweight, high-flow solution that installs in seconds. It ensures that airflow is distributed evenly without the turbulence often associated with rough internal casting surfaces.

Key Features & Benefits

• Efficient Air Distribution: The internal bore is perfectly calibrated to match the pipe diameter, ensuring that air splits cleanly between the main line and the branch without creating back-pressure or significant restrictions.
• Modular System Expansion: This fitting is essential for adding new “drops” to a system. It allows you to easily tap into a main line to supply a new workstation or piece of equipment without complex tooling.
• PPS Grip & Seal: Features the signature stainless steel grip ring for a secure mechanical hold and a double-lubricated NBR seal that guarantees zero leaks, even under fluctuating pressures.
• Corrosion-Free Durability: The 100% aluminum alloy body is immune to rust, ensuring that the fitting will never seize or contaminate the air stream with corrosion flakes.
• Rigid & Reliable: Provides a solid junction point that maintains structural integrity across long pipe spans, resisting sagging or misalignment.

Technical Specifications

• Part Series: PPS1 T (Equal Tee)
• Material: Aluminum Alloy (Body) / Stainless Steel (Clamping Ring)
• Configuration: 3-Way Equal (All three openings are the same diameter)
• Operating Pressure: Up to 232 PSI (16 bar)
• Operating Temperature: -4°F to +176°F (-20°C to +80°C)
• Fluid Compatibility: Compressed Air, Vacuum, Nitrogen, Argon
• Safety: Non-flammable construction; resistant to compressor oils and UV exposure.

Ideal Applications

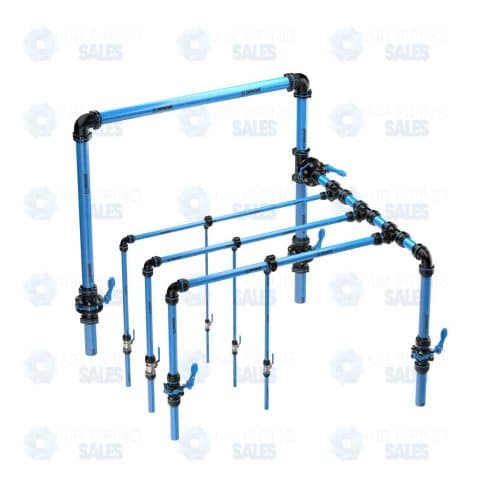

• Ring Main Loops: Creating a closed-loop system where air circulates around the perimeter of a building, maintaining equal pressure at all points.

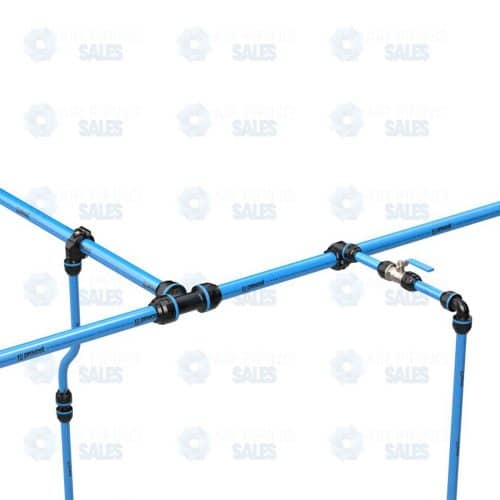

• Main Drops: Installing a tee in the ceiling header to drop a vertical pipe down to a floor-level manifold or FRL unit.
• Branching Lines: Splitting a main supply line to serve two different production lines simultaneously.
