Description

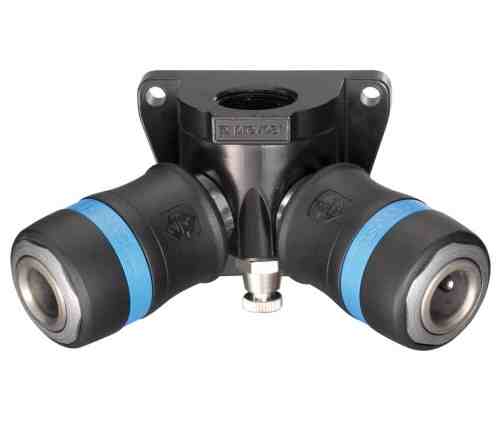

FEMALE THREAD DOUBLE WALL MANIFOLD – 2 COUPLERS AND DRAIN – INDUSTRIAL INTERCHANGE – ISG – 1/2″ BODY SIZE
Technical specifications
  • Technology :“One push” safety system (avoids hose whip)

  • Operating pressure :29 to 174 psi

  • Flow rate at 100 psi :81 cfm (ΔP = 10 psi)

  • ID Passage :1/2” body size

  • Temperature : 5 deg. F to 158 deg. F

  • Construction :Aluminium alloy

  • Highlight :Non scratch Anti-static

  • Equipped with :Manual drain

Inlet BSPP female thread Outlet 2 couplings Reference
3/4″ FBSP ISG 11 ISG 118104WK

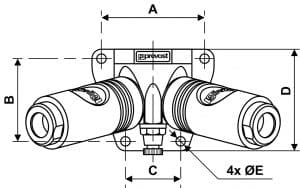

A (inch) B (inch) C (inch) D (inch) E (inch) Reference
2.795 2.244 1.496 2.756 0.256 ISG 118104WK

Additional information

Body Size

Connection End

Manifold

Coupler Material

Composite

Interchange Type

Product Range

Prevo S1
