Description

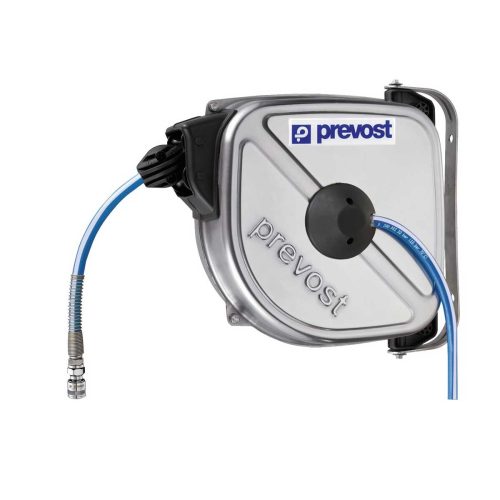

DRF/I SERIES – 304 STAINLESS STEEL – POLYURETHANE HOSE ETHER BASE

Technical specifications
  • Technology :Pipe locked with ratchet stop

  • Max operating pressure :145 psi

  • Temperature : 5°F to 140°F

  • Construction :AISI 304 stainless steel case

  • Connection :3.3 ft of inlet supply hose

  • Equipped with :Swivel bracket

180° swivelling bracket

Inlet: 3.3 ft hose

Outlet: thread valved coupling ELS 09

Temperature : 5°F to 140°F

Pressure : 145 psi

ID (in) Length (ft) Coupler Swivel inlet (in) Weight (lb) Reference
3/8″ 40′ ELS 09 3/8″ 13.89 DRFI 1012LS

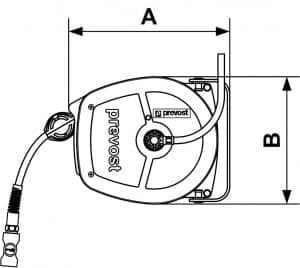

A (inch) B (inch) Reference
14.567 13.268 DRFI 1012LS

DSF/I SERIES - 304 STAINLESS STEEL - POLYURETHANE HOSE ETHER BASE

Additional information

Product Range

Hose Reels
