Description

ALTO 2 – 3-PIECE-SET – 3/8” FILTER-REGULATOR-LUBRICATOR (GAUGE INCLUDED) WITH WALL BRACKET

Technical specifications
  • Temperature : 41°F to 122°F

  • Construction :Body : Aluminium

    Polycarbonate bowl with metallic protection

  • Equipped with :Manual drain

Equipped with a pressure gauge: 0 to 145 psi

Max operating pressure: 174 psi
NPT female thread Flow rate (cfm at 87 psi ΔP=14psi) Max operating pressure (psi) Filtration (µm) Reference
3/8″ FNPT 70.60 174 25 TT SM202

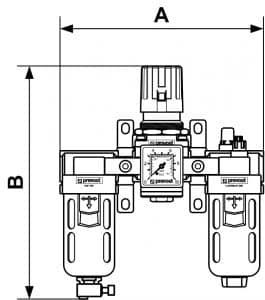

A (inch) B (inch) Reference
7.559 8.661 TT SM202

Additional information

Product Range

Alto Air Treatment
